Vacuum Trucks

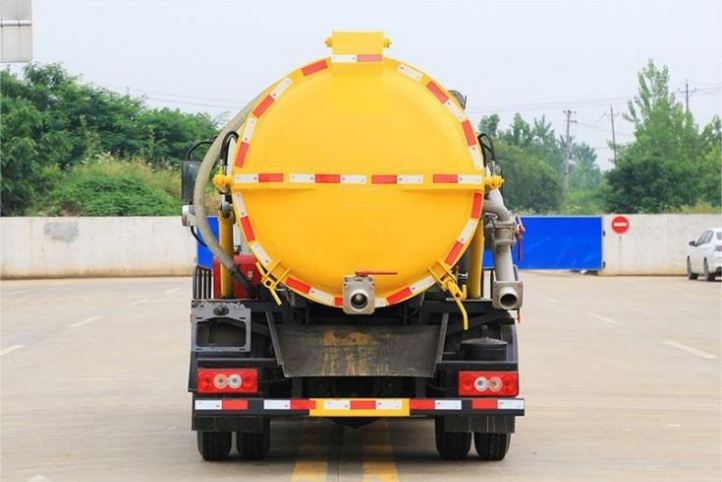

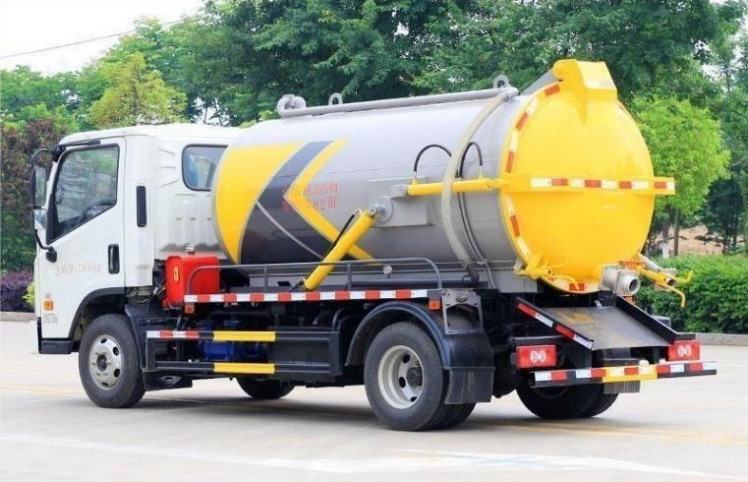

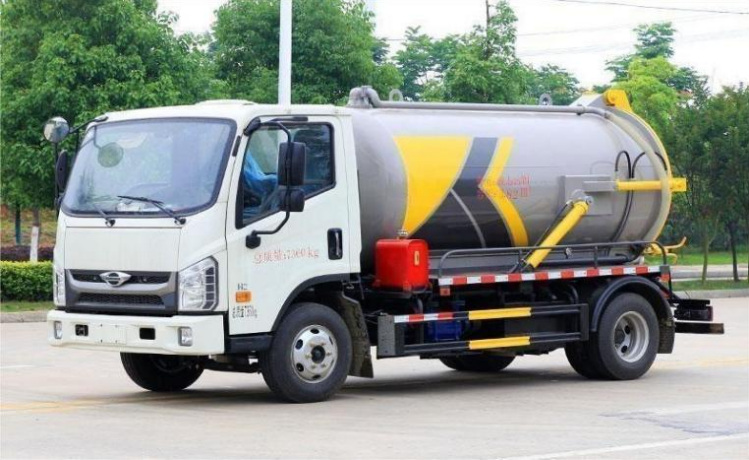

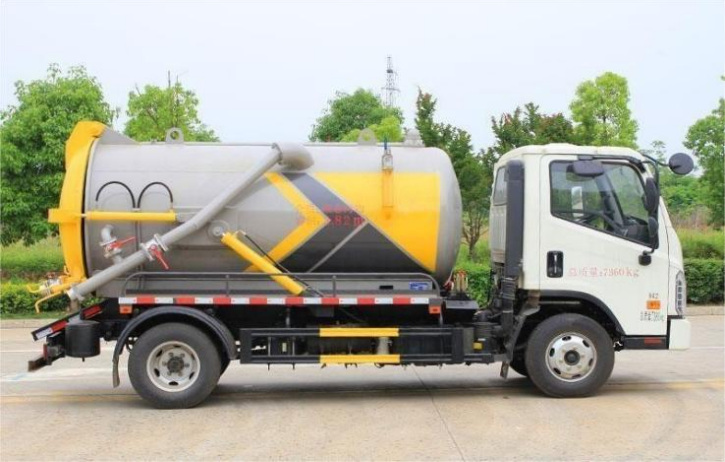

Foton Times Pilot H2 4m³ Vacuum Sewage Truck
Model 5070GXWB6
Foton Times Pilot H2 4m³ Vacuum Sewage Truck configured for sewage suction and sanitation work.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 3.82m³ |
|---|---|
| Tank dimensions | 3800 × 1800 × 1100 mm |
| Rated payload | 2915 kg |
| Overall dimensions | 5770 × 2010 × 2650 mm |
| Gross vehicle mass | 7360 kg |
| Curb weight | 4250 kg |
| Chassis model | BJ1076VEJDA-51 |
| Wheelbase | 3360 mm |
| Engine model | Q23-115C60 |
| Engine displacement | 2300 ml |
| Engine power | 85 kW |
| Horsepower | 115 hp |
| Tires | 7.00R16LT 14PR |
| Additional configuration | For sewage suction, core devices: tank (with lifting function)+sewage suction pump, tank total/effective cap.3.82/3.64m³, medium liquid sewage (density800kg/m³), dims(total length×diameter)3520× 1350mm (straight section 3000mm), side protection Q235B bolted, rear protection Q235B welded (section W×H50×120mm, ground clearance350mm), ABS model CM4XL-4S/4M, chassis-optional cab & urea tank/battery/fuel tank positions, vehicle length/rear overhang correspondence:5870/1380,5770/1280. |
