Vacuum Trucks

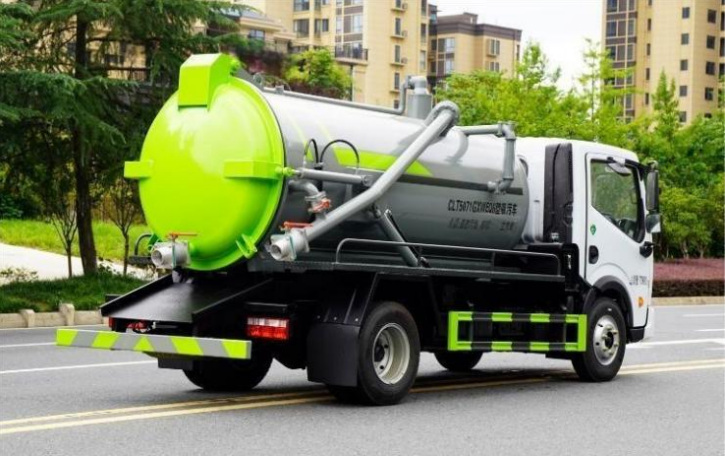

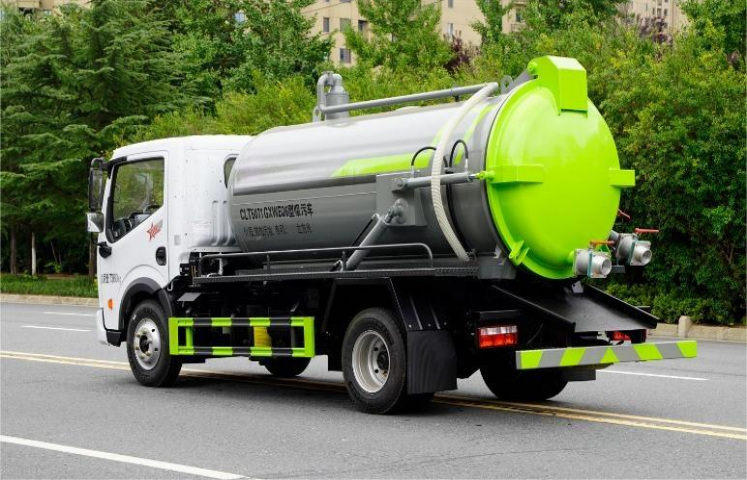

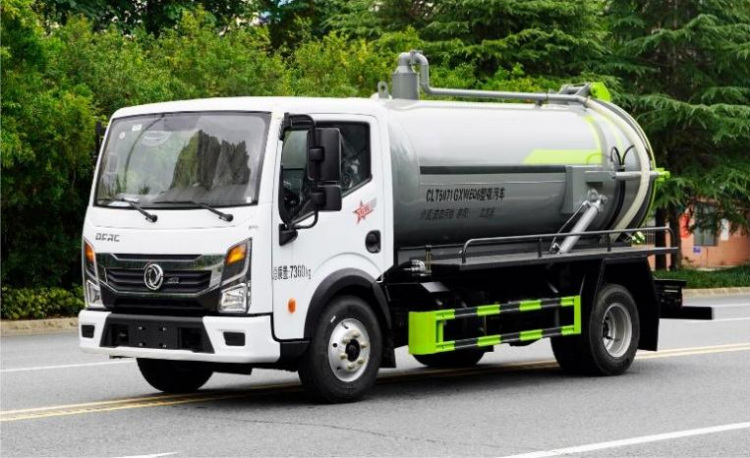

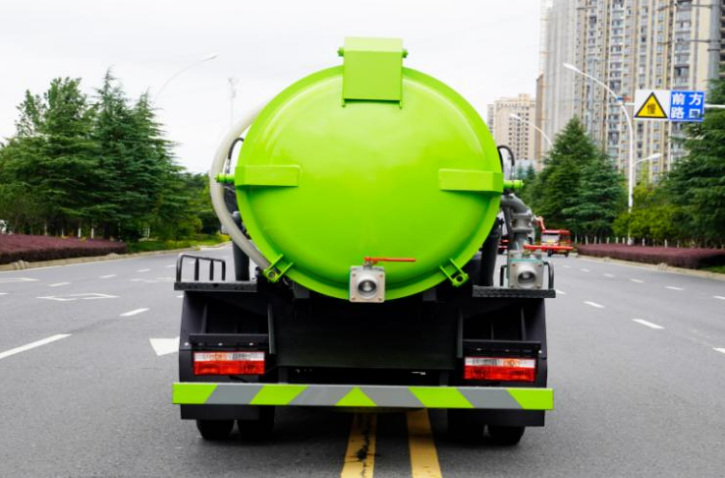

Dongfeng Dolika T17 4m³ Vacuum Sewage Truck
Model CLT5071GXWEQ6
Dongfeng Dolika T17 4m³ Vacuum Sewage Truck configured for sewage suction and sanitation work.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 4.04m³ |
|---|---|
| Tank dimensions | 3800 × 1800 × 1000 mm |
| Rated payload | 3000 kg |
| Overall dimensions | 5990 × 2100 × 2650 mm |
| Gross vehicle mass | 7360 kg |
| Curb weight | 4150 kg |
| Chassis model | EQ1075SJ3CDF |
| Wheelbase | 2800 mm |
| Engine model | CY4BK461 |
| Engine displacement | 3707 ml |
| Engine power | 95 kW |
| Horsepower | 129 hp |
| Tires | 7.00R16 14PR |
| Additional configuration | For suction of sewage in puddles and sewers, core devices: tank + sewage suction system, tank total/effective cap. 4.04/3.85m³, tank dims (total length × diameter) 3800×1300mm, ABS model ABS/ASR-12V-4S/4M, side/rear protection Q235 carbon steel bolted, rear protection section 120×50mm, ground clearance 410mm, rear discharge type, chassis-optional cab, left/right positions of fuel tank/battery/urea tank/air reservoir, optional rear style. |
