Vacuum Trucks

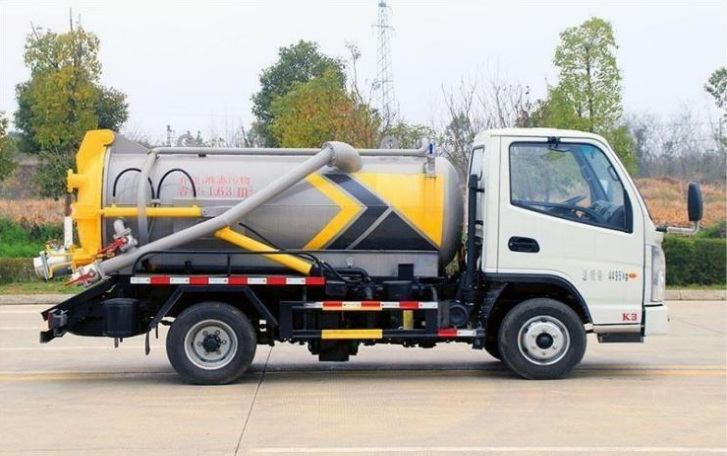

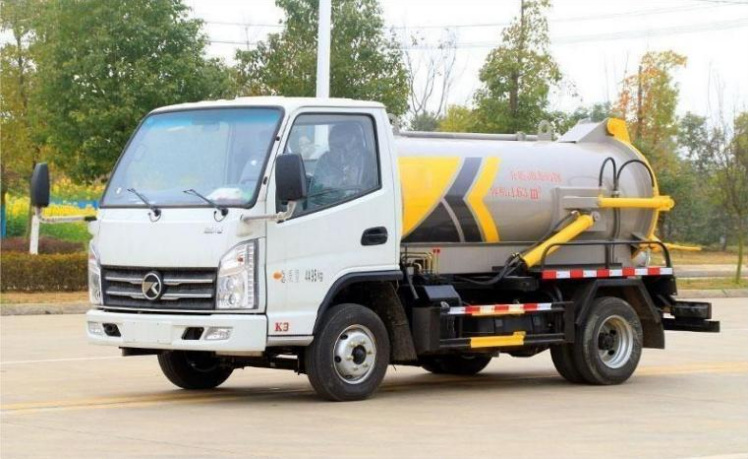

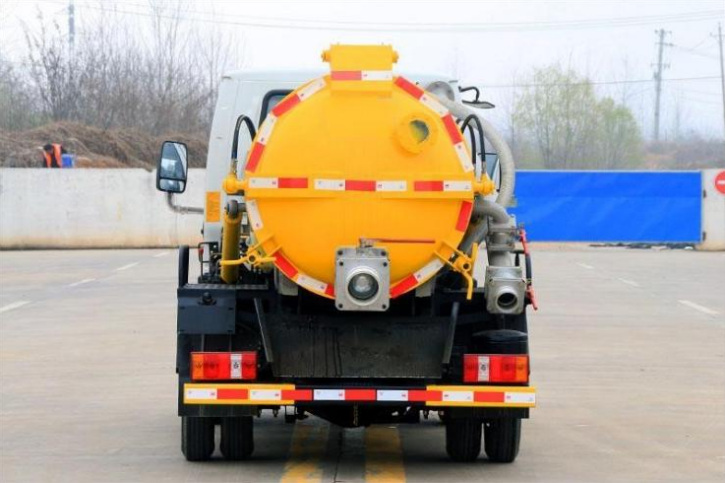

Kaima 2m³ Vacuum Sewage Truck
Model 5040GXWX6
Kaima 2m³ Vacuum Sewage Truck configured for sewage suction and sanitation work.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 1.63m³ |
|---|---|
| Tank dimensions | 3000 × 1500 × 1100 mm |
| Rated payload | 1345 kg |
| Overall dimensions | 5180 × 1780 × 2150 mm |
| Gross vehicle mass | 4495 kg |
| Curb weight | 3120 kg |
| Chassis model | KMC1040B260DP6 |
| Wheelbase | 2800 mm |
| Engine model | D20TCIF1 |
| Engine displacement | 1999 ml |
| Engine power | 93 kW |
| Horsepower | 126 hp |
| Tires | 6.00-15 10PR |

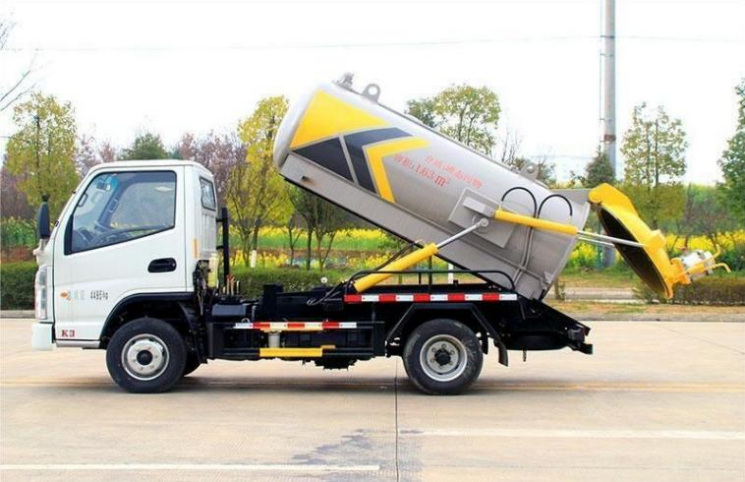

| Additional configuration | Special work vehicle for suction of sewage in puddles and sewers, core device: sewage suction system, tank with lifting function, total/effective cap.1.63/1.55m³, dims(total length× diameter)2800(straight section 2400)×φ980mm, medium liquid sewage (density800kg/m³), side protection Q235B bolted, rear protection Q235 welded (section120×60mm, ground clearance340mm), ABS models CM4YK/CM4YL, modified with 2600mm or 2800mm wheelbase, chassis-optional cab & filter style, optional tank appearance. |
