Tree Trimming Trucks

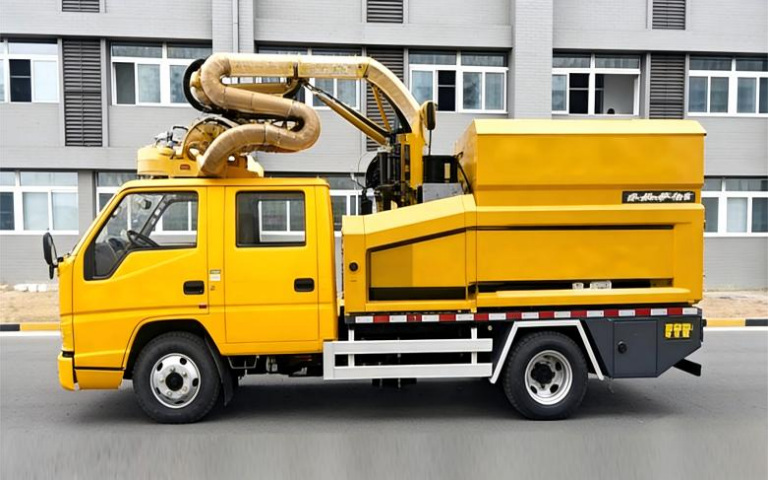

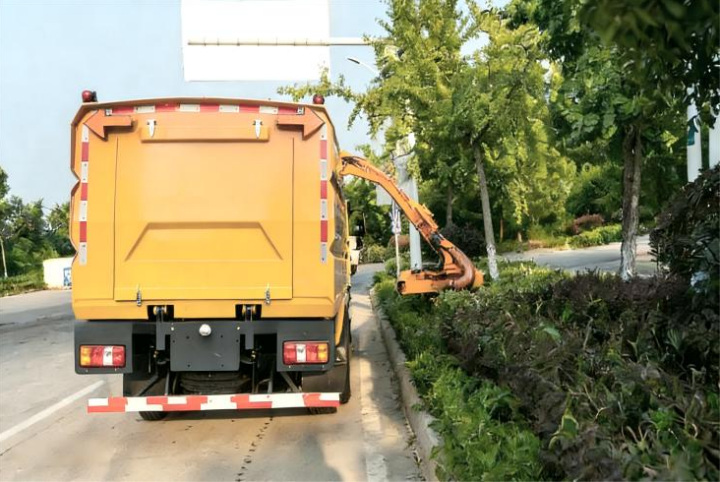

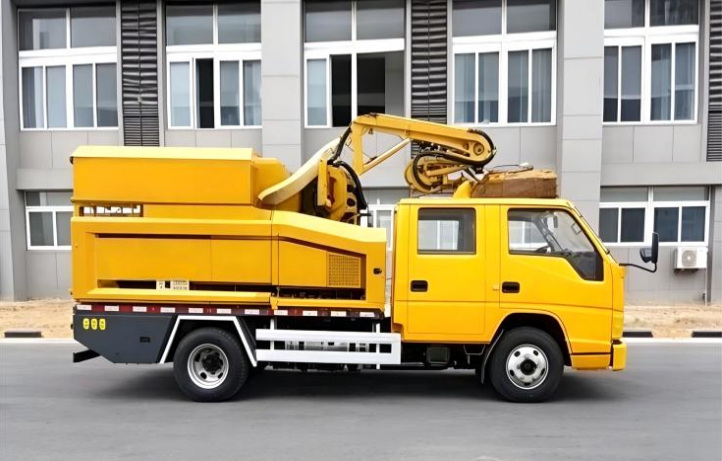

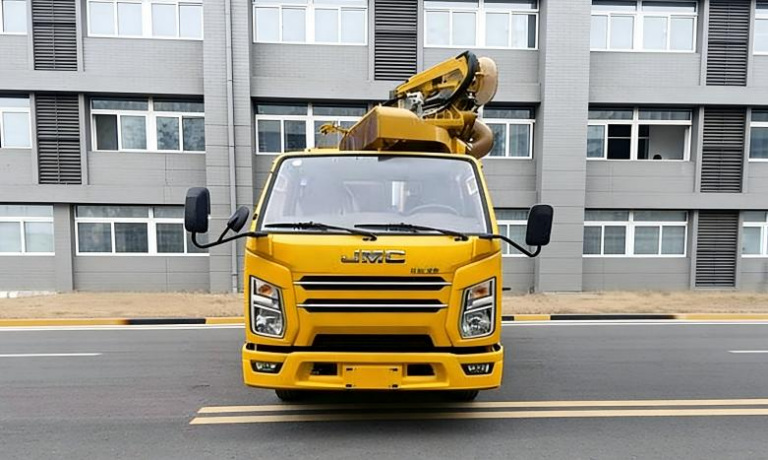

Jiangling 7m³ Green Space Trimming Truck
Model 5043TYHLH
A Jiangling 7m³ Green Space Trimming Truck configured for landscaping maintenance.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Rated payload | 325 kg |
|---|---|
| Overall dimensions | 5960 × 1920 × 3000 mm |
| Gross vehicle mass | 4495 Kg |
| Curb weight | 4170 Kg |
| Chassis model | JX1041TSG26 |
| Wheelbase | 3360 mm |
| Engine model | JX4D30A6H |
| Engine displacement | 2892 ml |
| Engine power | 95 kW |
| Horsepower | 129 hp |
| Tires | 7.00R16LT 10PR |
| Body volume | 7.5m³ |
| Special notes | This vehicle is ABS system model is APG3550500A; side protection is aluminum alloy (section height 100mm, width 20mm, bolted connection), rear protection is 345A (section height 100mm, width 45mm, welded connection, ground clearance 385mm); the special device is a hedge trimming device, which can trim and collect greenery such as slopes on both sides of roads, urban gardens or expressway medians, and the position of the upper suction air duct is optional. |
| Trimming Speed | 1.2-6(km/h) |
| Trimming Height | 0.2-4.5(m) |
