Vacuum Trucks

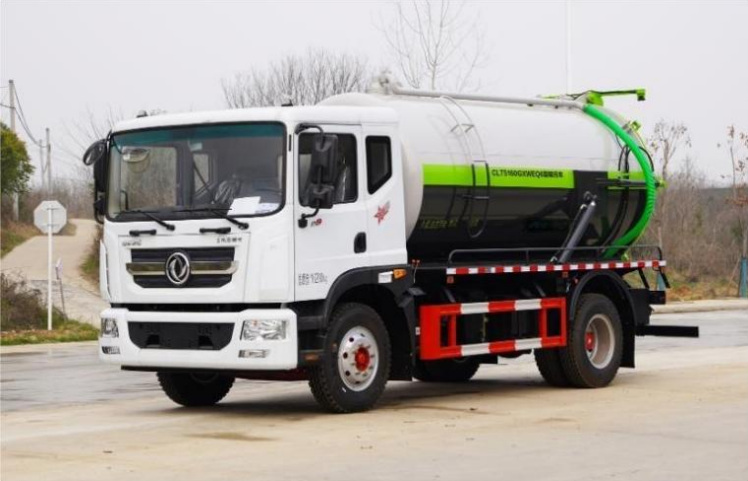

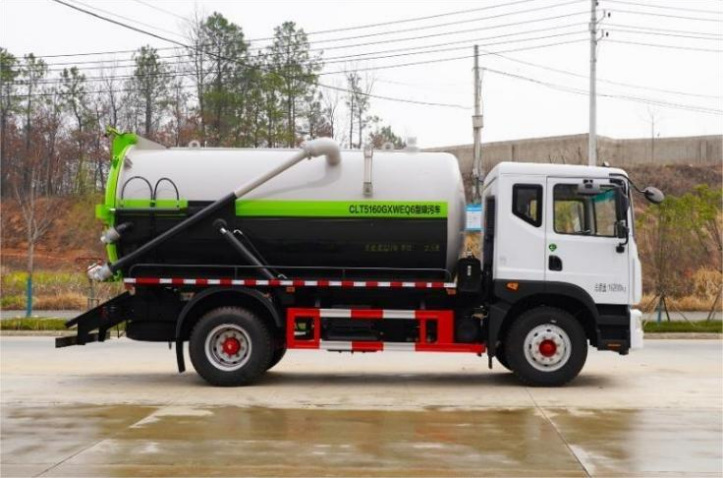

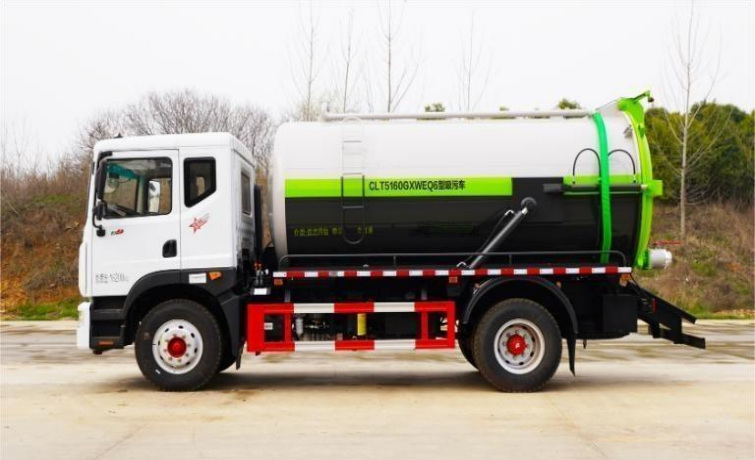

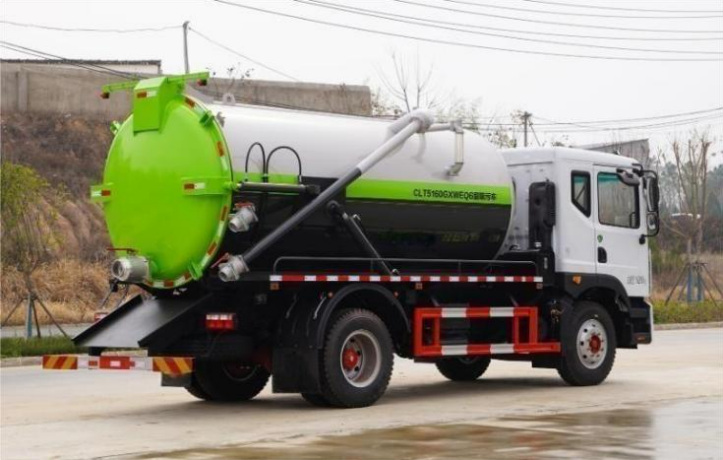

Dongfeng D9 10m³ Vacuum Sewage Truck
Model CLT5160GXWVE6G
Dongfeng D9 10m³ Vacuum Sewage Truck configured for sewage suction and sanitation work.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 10.24m³ |
|---|---|
| Tank dimensions | 4800 × 1800 × 1485 mm |
| Rated payload | 8170 kg |
| Overall dimensions | 7450 × 2500 × 3350 mm |
| Gross vehicle mass | 16200 kg |
| Curb weight | 7900 kg |
| Chassis model | EQ1165LJ9CDE |
| Wheelbase | 3950 mm |
| Engine model | D4.0NS6B195 |
| Engine displacement | 4000 ml |
| Engine power | 143 kW |
| Horsepower | 194 hp |
| Tires | 9.00R20 18PR |
| Additional configuration | This vehicle is used for sewage suction sanitation and sewer waste treatment, equipped with a tank and sewage suction system with lifting function; total tank capacity 10.24 cubic meters, effective volume 9.75 cubic meters, tank dimensions 4800×1800×1485mm; side and rear protection are Q235 carbon steel bolted, rear protection cross-section 120×50mm, ground clearance 490mm; equipped with ABS, only 3950mm wheelbase is used, configurations like sewage suction pipes, toolboxes, cab styles can be optionally installed, and speed is limited to 89km/h |
