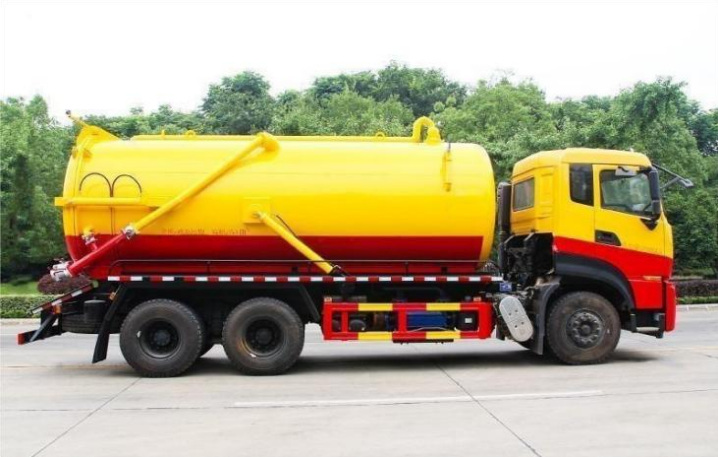

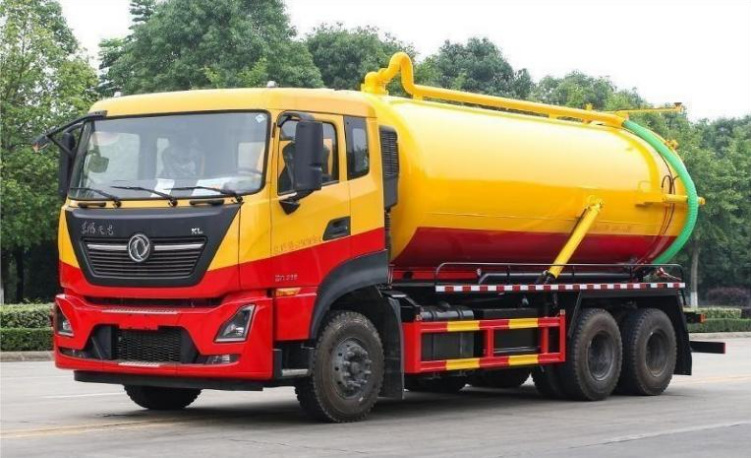

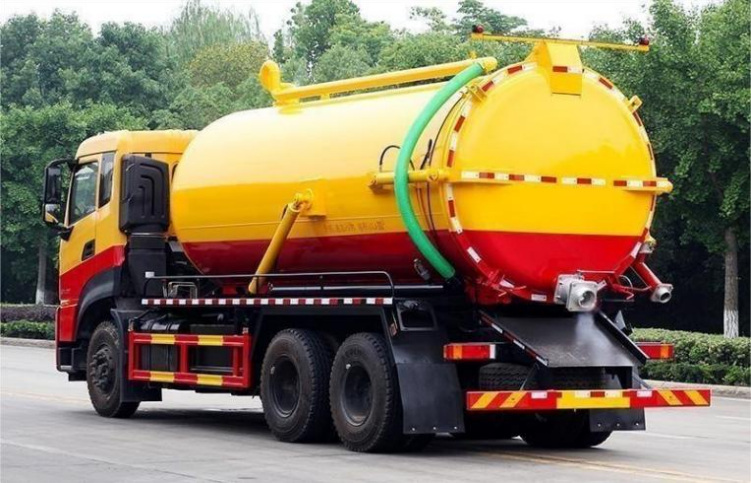

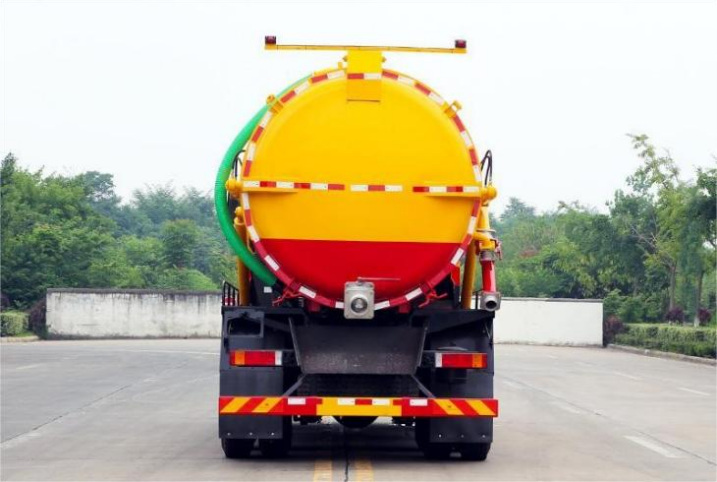

Dongfeng Tianlong Rear Double Axle 15m³ Vacuum Sewage Truck
Model 5250GXWD6
Dongfeng Tianlong Rear Double Axle 15m³ Vacuum Sewage Truck configured for sewage suction and sanitation work.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 15.36m³ |
|---|---|
| Tank dimensions | 6150 × 2000 × 1400 mm |
| Rated payload | 11770 kg |
| Overall dimensions | 9100 × 2500 × 3750 mm |
| Gross vehicle mass | 25000 kg |
| Curb weight | 13000 kg |
| Chassis model | BJ1244VNFB-01 |
| Wheelbase | 4350+1350 mm |
| Engine model | D6.7NS6B290 |
| Engine displacement | 6700 ml |
| Engine power | 213 kW |
| Horsepower | 289 hp |
| Tires | 10.00R20 18PR |
| Special notes | For sewage suction, with PTO & vacuum suction pump, tank with lifting function (total/effective cap.15.36/14.63m³, straight section× diameter5500×2000mm, total length with head6280mm), vehicle length/front overhang/wheelbase/rear overhang:9100/1480/4350+1350/1920 etc. (4 groups), side/rear protection Q235B (bolted/welded, section150×50mm, ground clearance460mm), ABS models3631010-C2000/VIE ABS-Ⅱ, modified with 4350+1350/4600+1350 wheelbases, optional cab, fuel tank etc. positions, tank appearance & speed limiter(89km/h). |
