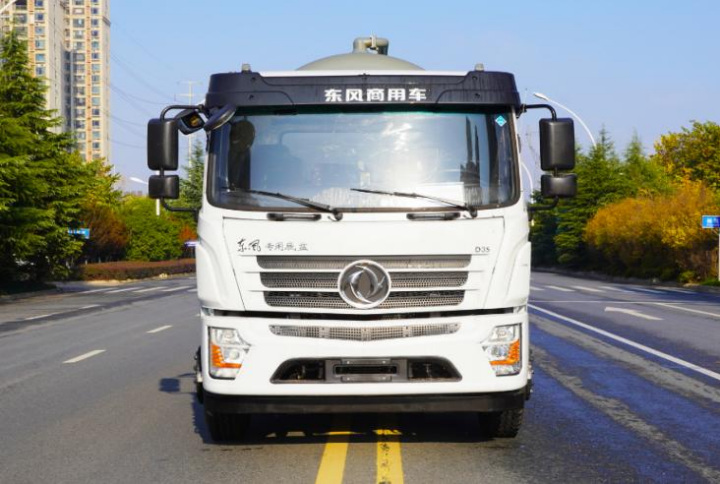

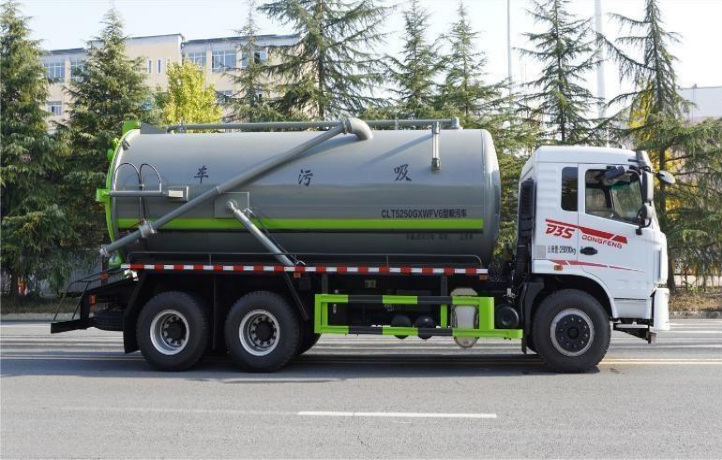

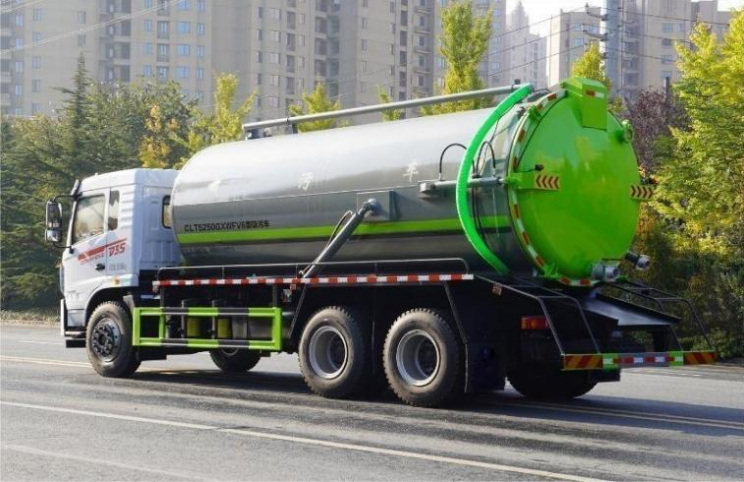

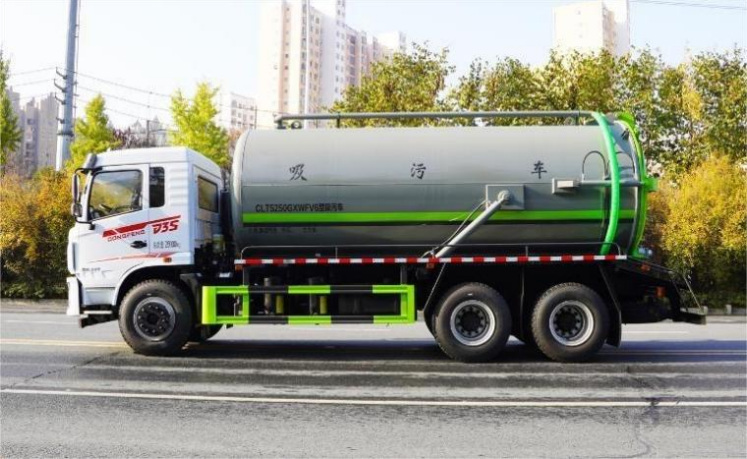

Dongfeng D3S 15m³ Vacuum Sewage Truck
Model CLT5250GXWPY6
Dongfeng D3S 15m³ Vacuum Sewage Truck configured for sewage suction and sanitation work.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 15.62m³ |
|---|---|
| Tank dimensions | 6150 × 2000 × 1400 mm |
| Rated payload | 11970 kg |
| Overall dimensions | 9100 × 2500 × 3650 mm |
| Gross vehicle mass | 25000 kg |
| Curb weight | 12500 kg |
| Chassis model | DFV1253GP6DJ |
| Wheelbase | 4350+1350 mm |
| Engine model | D6.7NS6B290 |
| Engine displacement | 6700 ml |
| Engine power | 213 kW |
| Horsepower | 290 hp |
| Tires | 11.00-20 18PR |
| Additional configuration | This vehicle is used for sewage suction sanitation and sewer waste treatment, equipped with a tank and sewage suction system with lifting function; total tank capacity 15.62 cubic meters, effective volume 14.82 cubic meters, tank dimensions 6150×2000×1400mm; side and rear protection are Q235 carbon steel bolted, rear protection cross-section 150×50mm, ground clearance 490mm; equipped with ABS, only 4350+1350mm wheelbase is used, configurations like sewage suction port styles, sewage suction tank devices and left/right dung discharge styles can be optionally installed |
