Vacuum Trucks

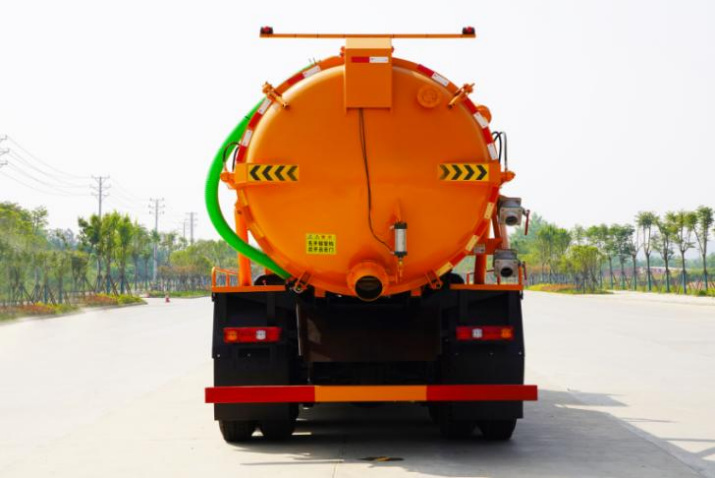

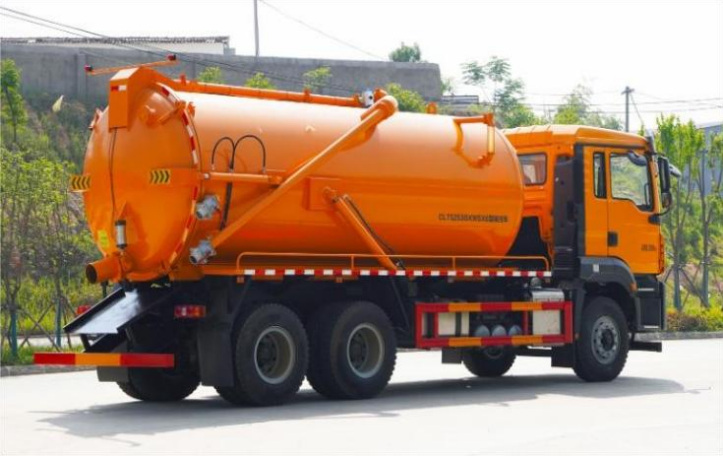

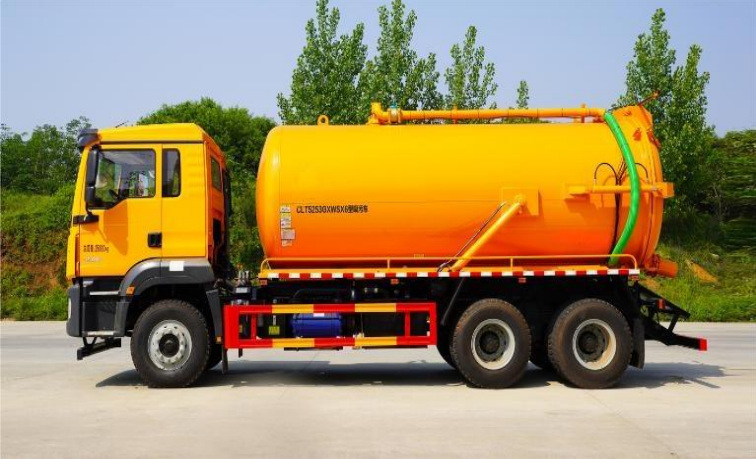

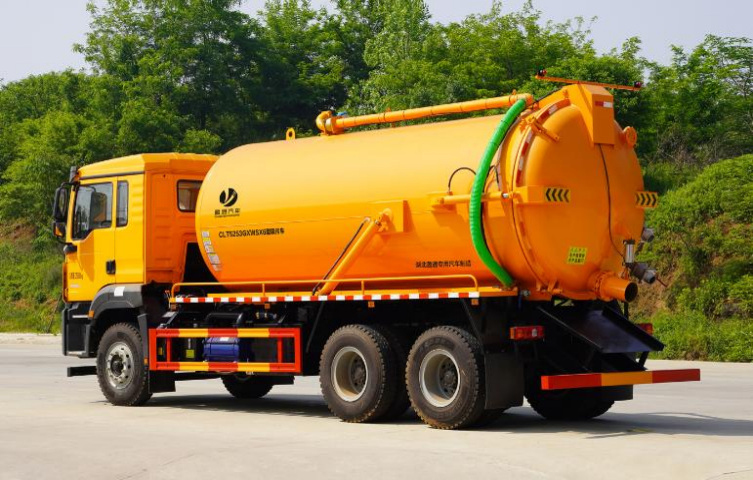

Shaanxi Heavy Duty Truck 15m³ Vacuum Sewage Truck
Model CLT5253GXWSX6
Shaanxi Heavy Duty Truck 15m³ Vacuum Sewage Truck configured for sewage suction and sanitation work.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 14.92m³ |
|---|---|
| Tank dimensions | 6150 × 2000 × 1400 mm |
| Rated payload | 11370 kg |
| Overall dimensions | 8900 × 2550 × 3880 mm |
| Gross vehicle mass | 25000 kg |
| Curb weight | 13500 kg |
| Chassis model | SX1259MB4F1C |
| Wheelbase | 4375+1400 mm |
| Engine model | YCS06270-60 |
| Engine displacement | 6234 ml |
| Engine power | 199 kW |
| Horsepower | 270 hp |
| Tires | 11.00R20 18PR |
| Additional configuration | This vehicle is used for sewage suction sanitation and sewer waste treatment, equipped with a tank and sewage suction system with lifting function; total tank capacity 14.92 cubic meters, effective volume 14.2 cubic meters, tank dimensions 6150×2000×1400mm; side and rear protection are Q235 carbon steel bolted, rear protection cross-section 120×50mm, ground clearance 490mm; equipped with ABS, only 4375+1400mm wheelbase is used, cab and rear styles can be optionally installed |
