Foton Ouhang 12m³ Vacuum Sewage Truck
Model CLT5183GXWVB6

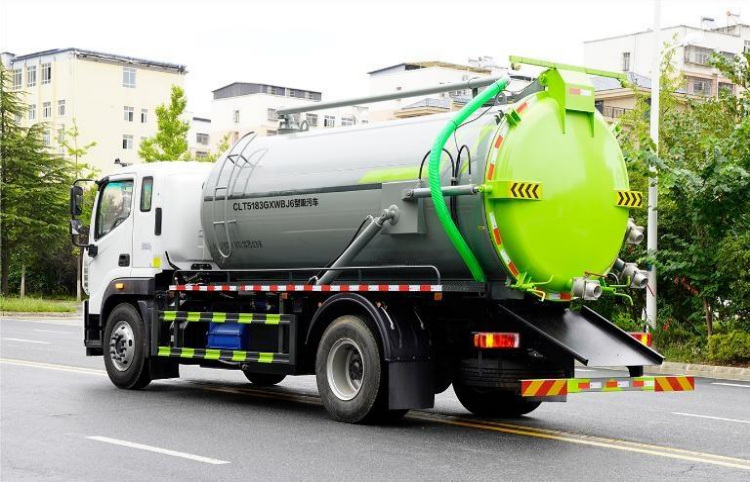

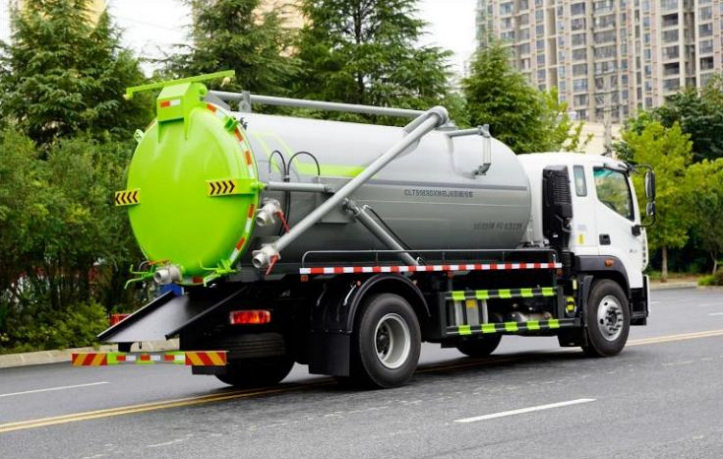

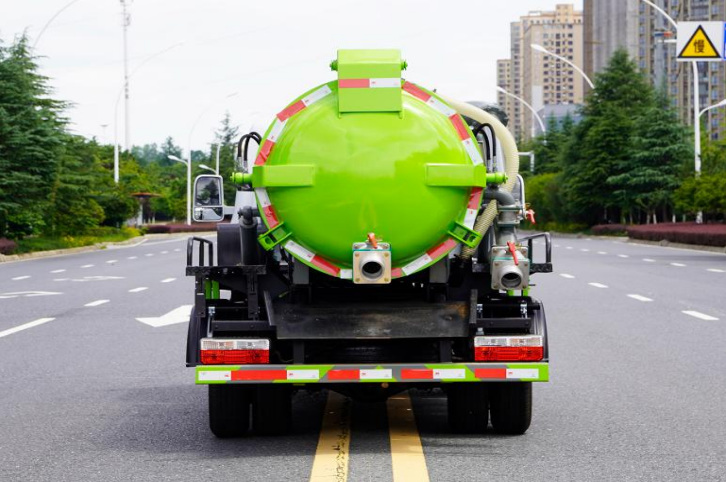

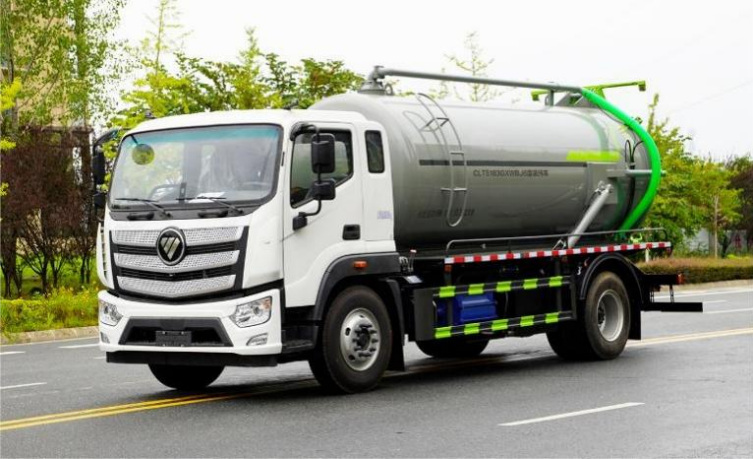

Foton Ouhang 12m³ Vacuum Sewage Truck configured for sewage suction and sanitation work.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 11.2m³ |
|---|---|
| Tank dimensions | 5400 × 1800 × 1800 mm |
| Rated payload | 8570,9205,10005 kg |
| Overall dimensions | 8350,7700 × 2530,2550 × 3400 mm |
| Gross vehicle mass | 18000 kg |
| Curb weight | 9200,8600,7900 kg |
| Chassis model | BJ1180VKPFK-AD1 |
| Wheelbase | 4200,4500,4800 mm |
| Engine model | YCK05240-60 |
| Engine displacement | 5132 ml |
| Engine power | 176 kW |
| Horsepower | 239 hp |
| Tires | 11R22.5 18PR |
| Additional configuration | For sewage suction sanitation & sewer waste, core devices: tank+sewage suction system, tank total/effective cap.11.2/10.75m³, tank dims(L×W×H)5400×1800×1800mm, side/rear protection Q235 carbon steel bolted, rear protection section120×50mm, ground clearance470mm, with ABS, wheelbases4500/3550mm only, optional sewage suction port style/position; with 5400/3550mm wheelbases: optional sewage suction port (protruding from cab or not), plus optional sewage suction tank device, 3000mm sewage tank position, cab & sewage suction tank device positions. |
