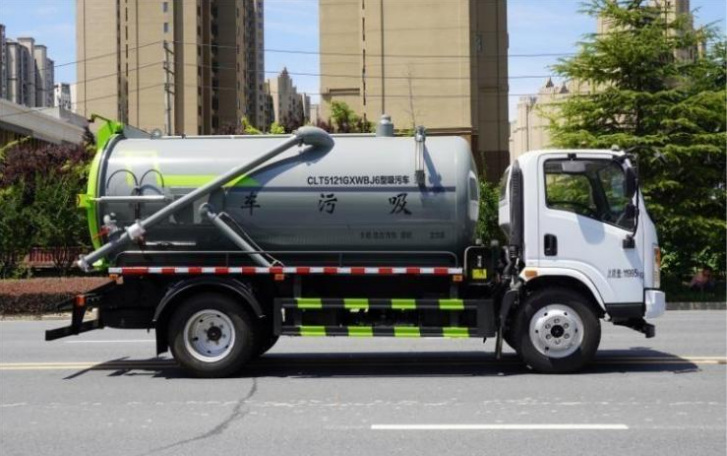

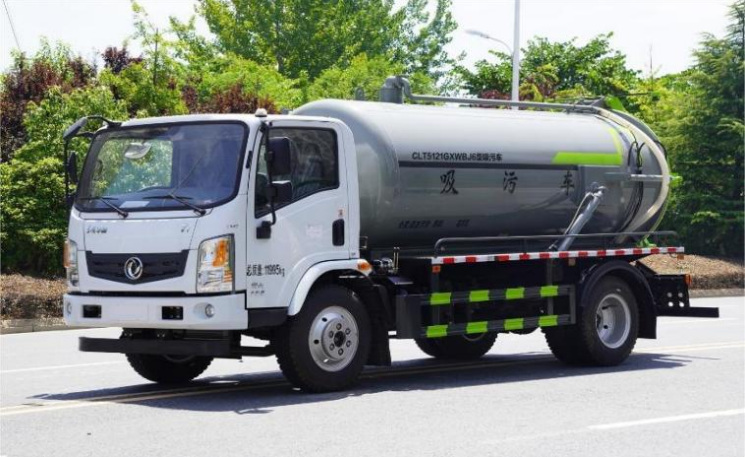

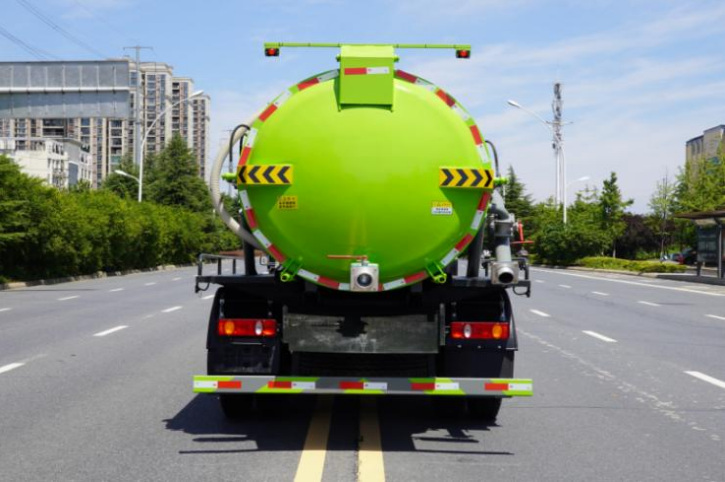

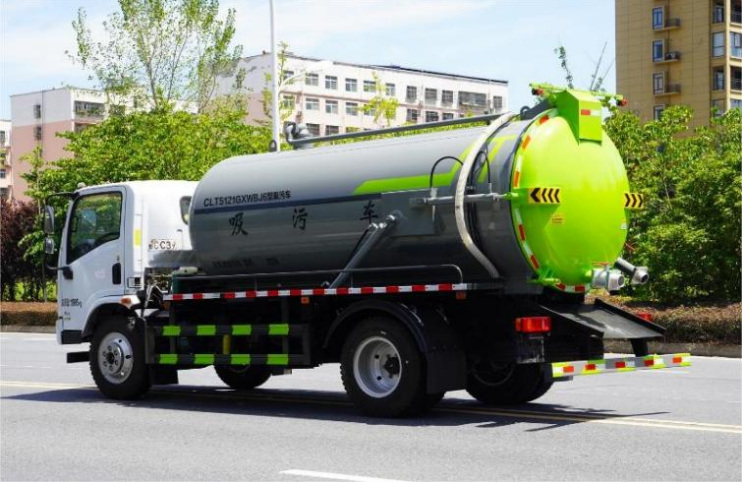

Dongfeng Huashen T1 8m³ Vacuum Sewage Truck
Model CLT5120GXWBL6
Dongfeng Huashen T1 8m³ Vacuum Sewage Truck configured for sewage suction and sanitation work.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 7.4m³ |
|---|---|
| Tank dimensions | 5200 × 1800 × 1200 mm |
| Rated payload | 5710 kg |
| Overall dimensions | 10500 × 2350 × 3350 mm |
| Gross vehicle mass | 11990 kg |
| Curb weight | 6150 kg |
| Chassis model | EQ1120GL6DJ |
| Wheelbase | 3800 mm |
| Engine model | YCY24145-60 |
| Engine displacement | 2970 ml |
| Engine power | 107 kW |
| Horsepower | 145 hp |
| Tires | 8.25R20 14PR |
| Special Notes | For sewer sewage discharge & dredging, core devices: tank+sewage suction system, chassis-optional cab, tank total/effective cap.7.4/7.05m³, tank dims(total length×diameter)4800×1550mm or 4700×1600mm, ABS models3631010-C2000/J ABS, lift-up rear discharge, side/rear protection Q235 carbon steel (side bolted, rear welded), rear protection section120×50mm, ground clearance450mm, optional left-side style. |
