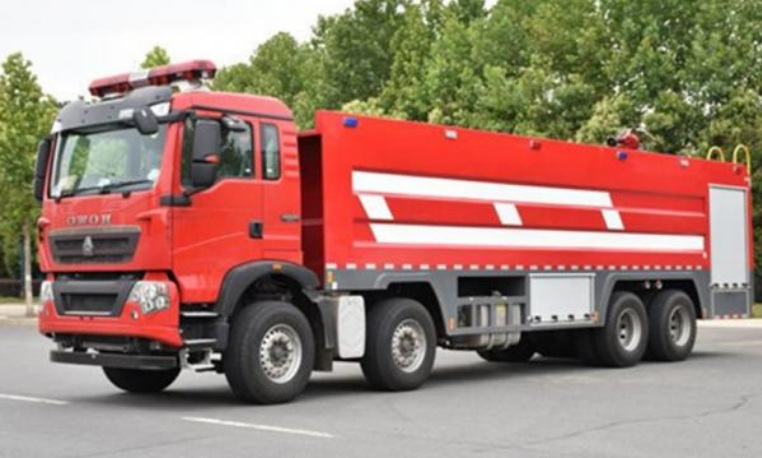

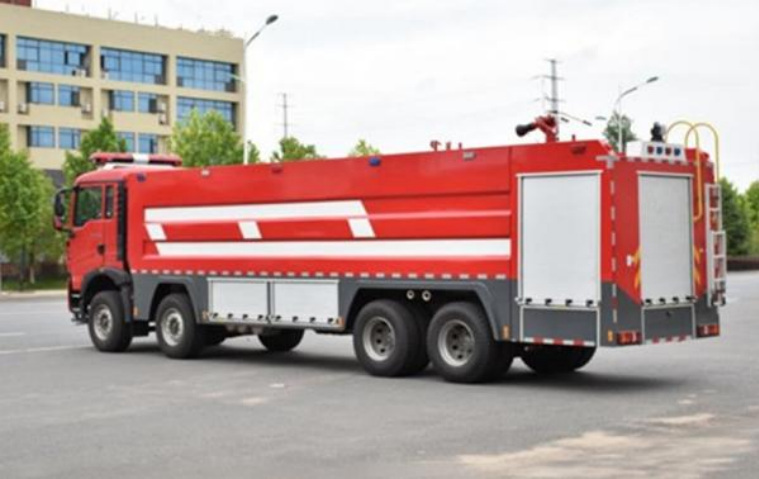

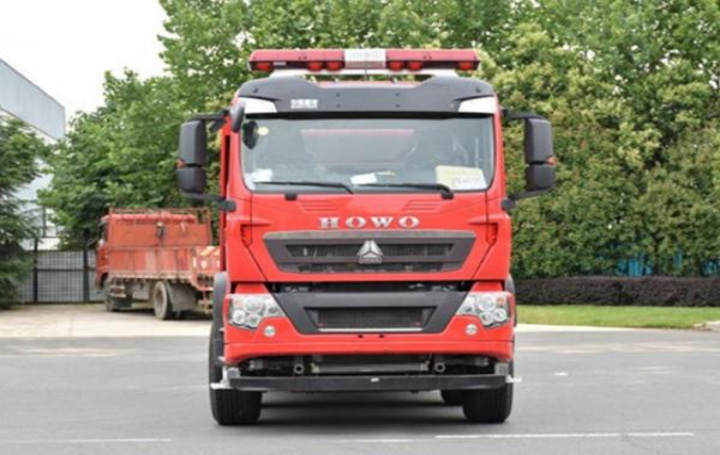

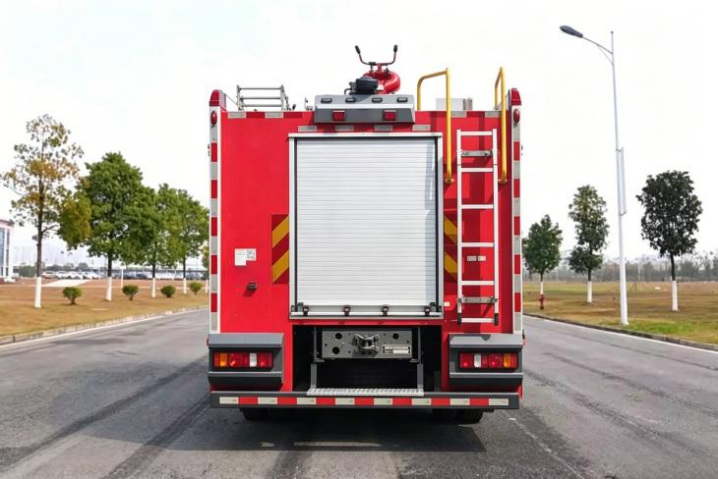

Sinotruk Howo 25 Ton Water Tank Fire Truck
Model 5430GXFSG250/T6
Sinotruk Howo 25 Ton Water Tank Fire Truck (5430GXFSG250/T6) is configured for firefighting and emergency-response work, with tank dimensions of 7320 × 2450 × 1450 mm.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 25.0m³ |
|---|---|
| Tank dimensions | 7320 × 2450 × 1450 mm |
| Rated payload | 25000 kg |
| Overall dimensions | 11870 × 2540 × 3610 mm |
| Gross vehicle mass | 42650 kg |
| Curb weight | 17500 kg |
| Chassis model | ZZ5446V516MF1 |
| Wheelbase | 1950+4500+1400 mm |
| Engine model | WP10.5H460E62 |
| Engine displacement | 10520 ml |
| Engine power | 338 kW |
| Horsepower | 459 hp |
| Tires | 385/65R22.5 18PR |
| Additional configuration | This vehicle is a water tank fire truck, with special devices including fire pumps and fire cannons. It adopts an integrated side protection structure. The rear protection device is made of Q235A material, with a cross-section (width×height) of 80×120mm, bolt-connected to the vehicle, and the rear protection is 465mm above the ground. Equipped with an EBS system, only tires of the specification 385/65R22.5 are selected. |
