Water Tank Fire Trucks

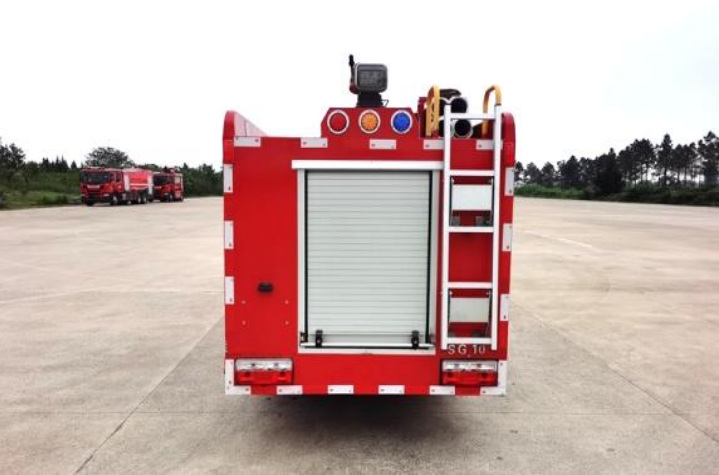

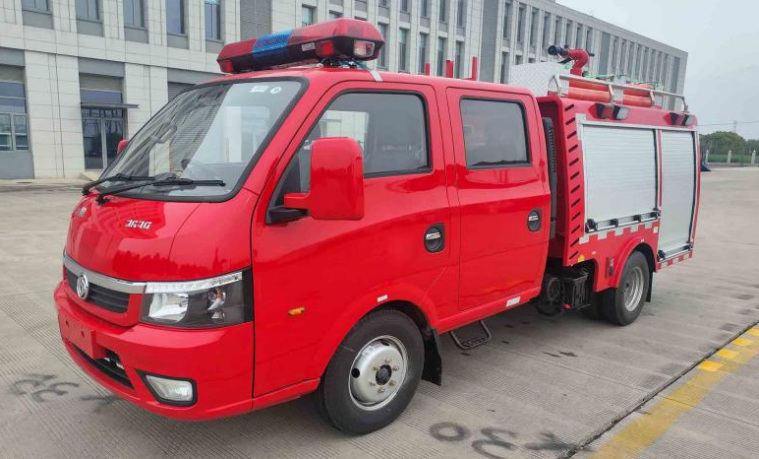

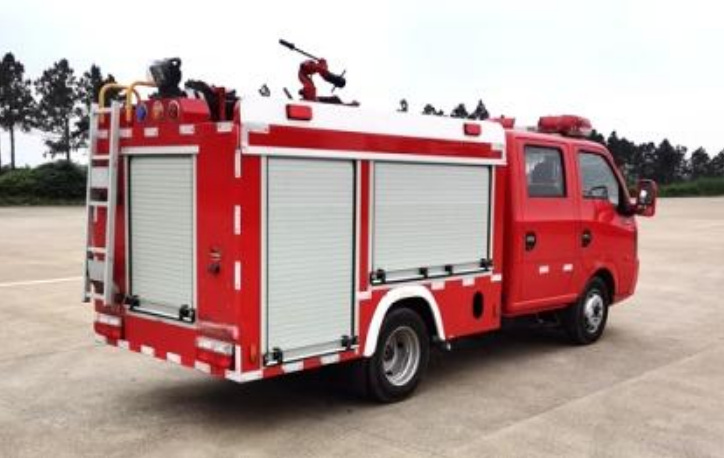

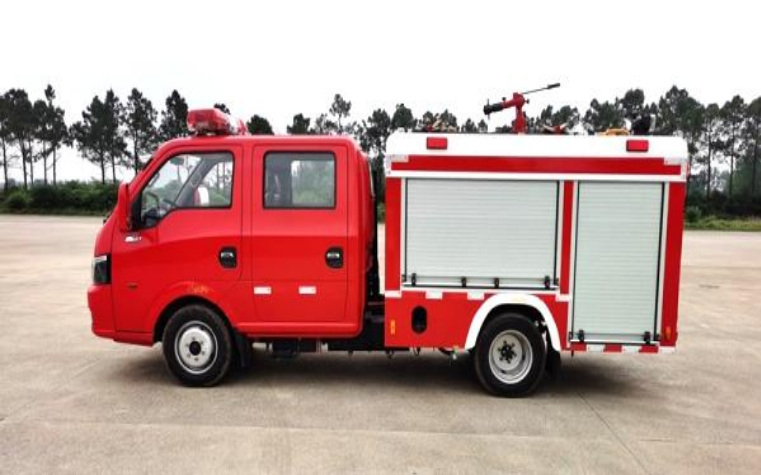

Dongfeng Tuyi Blue Plate 1 Ton Water Tank Fire Truck
Model 5042GXFSG10/E6
This vehicle is a water tank fire truck, with special devices including fire pumps and fire cannons.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 1.0m³ |
|---|---|
| Tank dimensions | 1145 × 850 × 1070 mm |
| Rated payload | 1000 kg |
| Overall dimensions | 5685 × 1760 × 2600 mm |
| Gross vehicle mass | 4345 kg |
| Curb weight | 2970 kg |
| Chassis model | EQ1040D16DC |
| Wheelbase | 2800 mm |
| Engine model | Q23-95E60 |
| Engine displacement | 2300 ml |
| Engine power | 70 kW |
| Horsepower | 95 hp |
| Tires | 6.00R15 10PR |
| Additional configuration | This vehicle is a water tank fire truck, with special devices including fire pumps and fire cannons. It adopts an integrated side and rear protection structure, with the rear protection 455mm above the ground. Equipped with an ABS system. |
