Isuzu 4 Ton Water Tank Fire Truck
Model 5100GXFSG35/Q6A

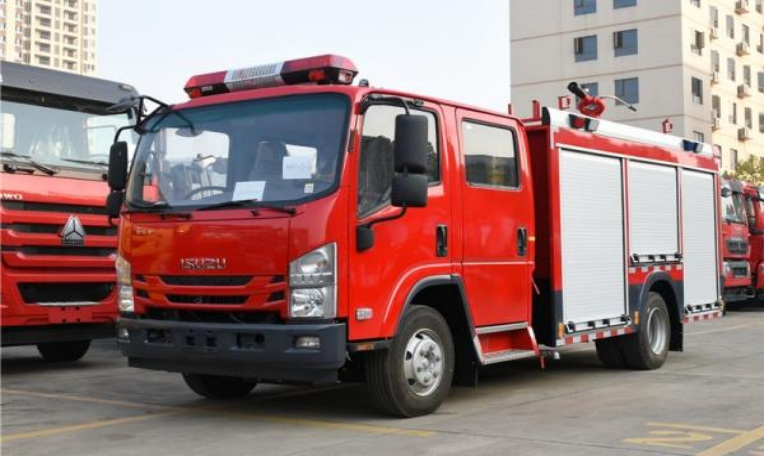

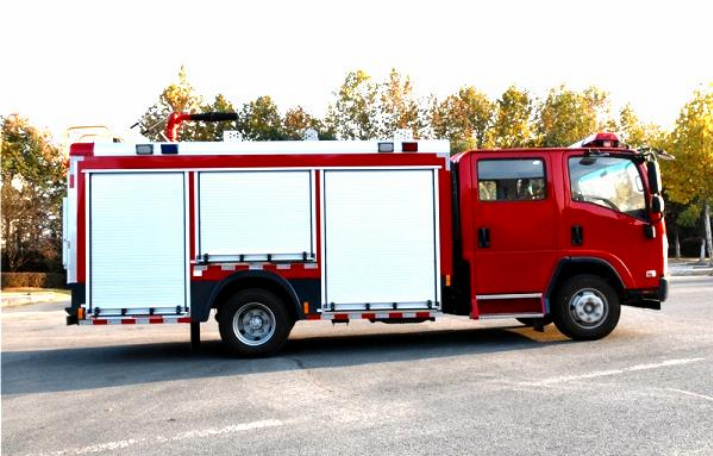

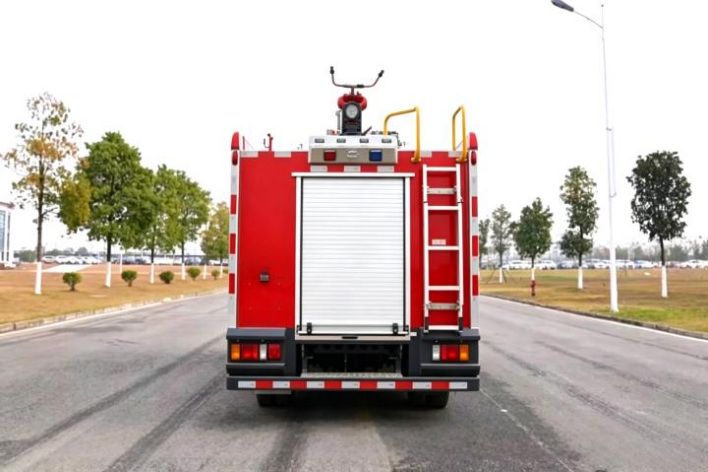

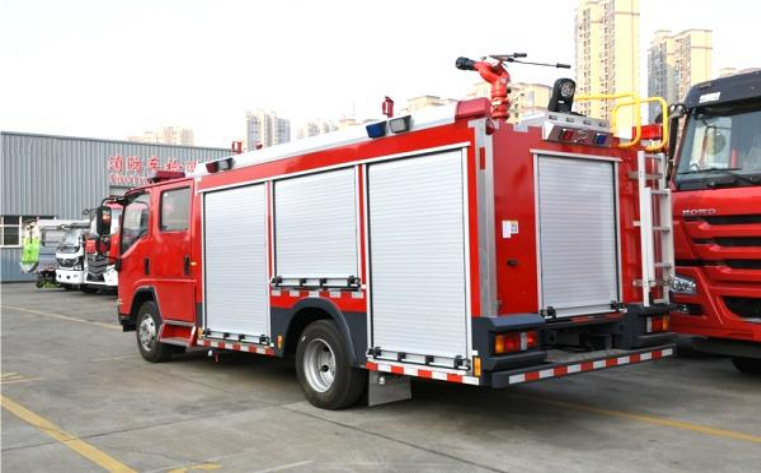

This vehicle is a water tank fire truck, with special devices including fire pumps and fire cannons.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 4m³ |
|---|---|
| Tank dimensions | Left:1730 × 1250 × 1260 mm Right:650 × 1250 × 1260 mm |
| Rated payload | 3600 kg |
| Overall dimensions | 6980 × 2250 × 3100 mm |
| Gross vehicle mass | 9900 kg |
| Curb weight | 5850 kg |
| Chassis model | QL1110ANKAY |
| Wheelbase | 3815 mm |
| Engine model | 4HK1-TCG61 |
| Engine displacement | 5193 ml |
| Engine power | 139 kW |
| Horsepower | 189 hp |
| Tires | 7.00R16 14PR |
| Additional configuration | This vehicle is a water tank fire truck, with special devices including fire pumps and fire cannons. The tank is a special-shaped tank with an integrated side protection structure. The rear protection device is made of Q235A material, with a cross-section (width×height) of 50× 100mm, bolt-connected to the vehicle, and the rear protection is 465mm above the ground. Equipped with an ABS system, optional red strobe lights can be installed. |
