Water Tank Fire Trucks

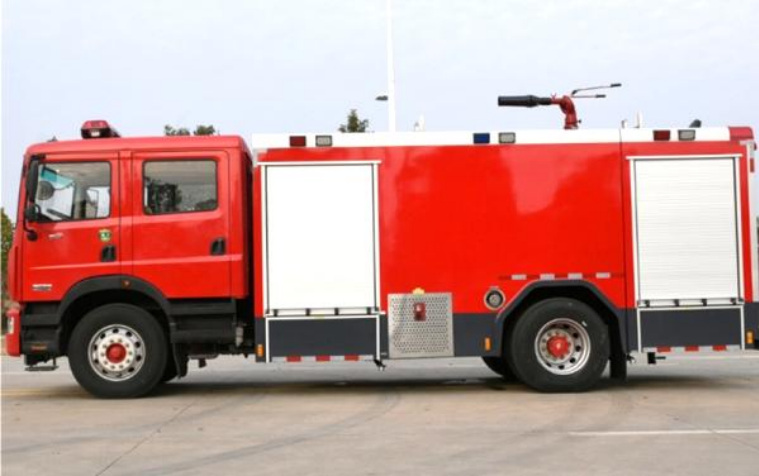

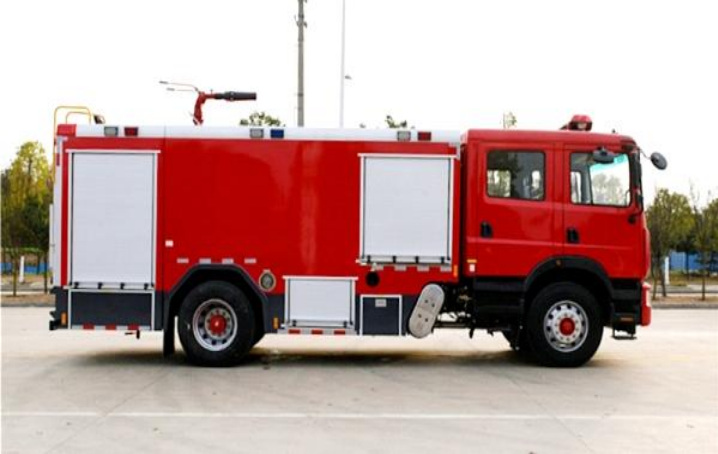

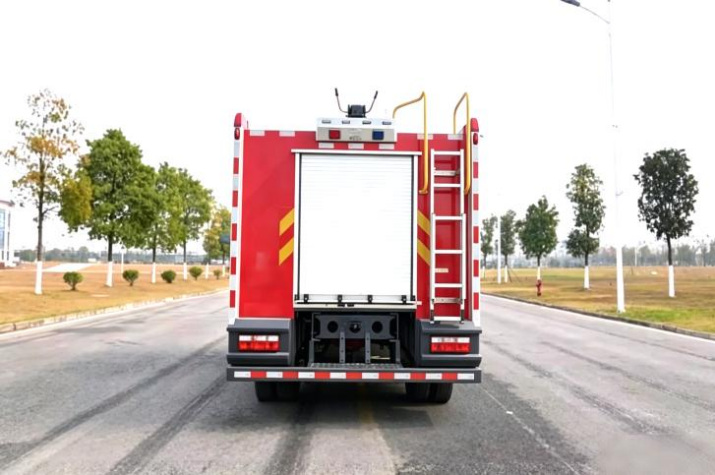

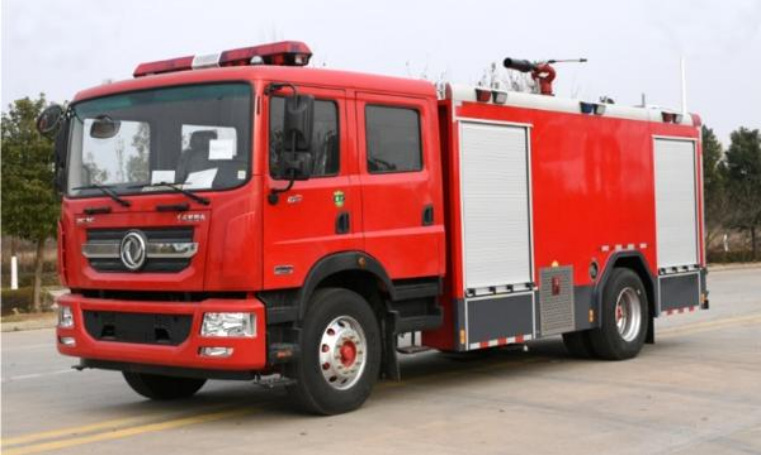

Dongfeng D9 8 Ton Water Tank Fire Truck
Model 5170GXFSG80/E6
Dongfeng D9 8 Ton Water Tank Fire Truck (5170GXFSG80/E6) is configured for firefighting and emergency-response work, with a tank capacity of 8.0 m³.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 8.0m³ |
|---|---|
| Tank dimensions | Left:1250 × 1400 × 1410 mm Right:1735 × 2400 × 1410 mm |
| Rated payload | 8000 kg |
| Overall dimensions | 8200 × 2500 × 3550 mm |
| Gross vehicle mass | 17450 kg |
| Curb weight | 9000 kg |
| Chassis model | EQ1185DJ9CDF |
| Wheelbase | 4700 mm |
| Engine model | B6.2NS6B230 |
| Engine displacement | 6200 ml |
| Engine power | 169 kW |
| Horsepower | 229 hp |
| Tires | 295/80R22.5 18PR |
| Additional configuration | This vehicle is a water tank fire truck, with special devices including fire pumps and fire cannons. The water tank is a special-shaped tank with an integrated side protection structure. The rear protection device is made of Q235A material, with a cross-section (width×height) of 60× 120mm, bolt-connected to the vehicle, and the rear protection is 492mm above the ground. Equipped with an ABS system, optional vehicle side appearance styles can be installed. |
