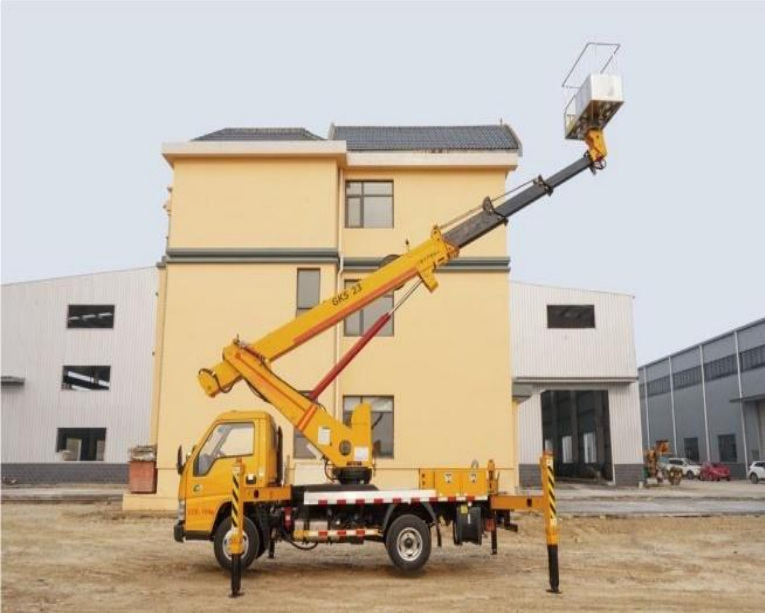

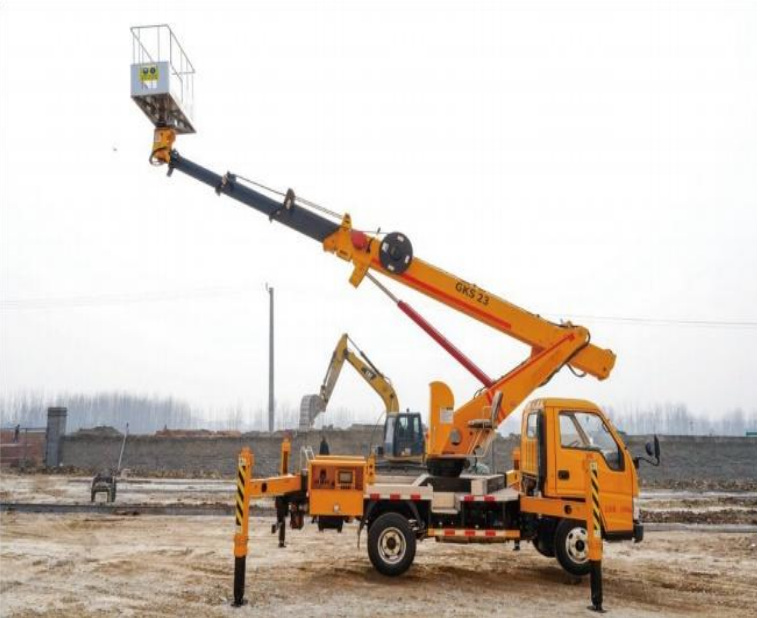

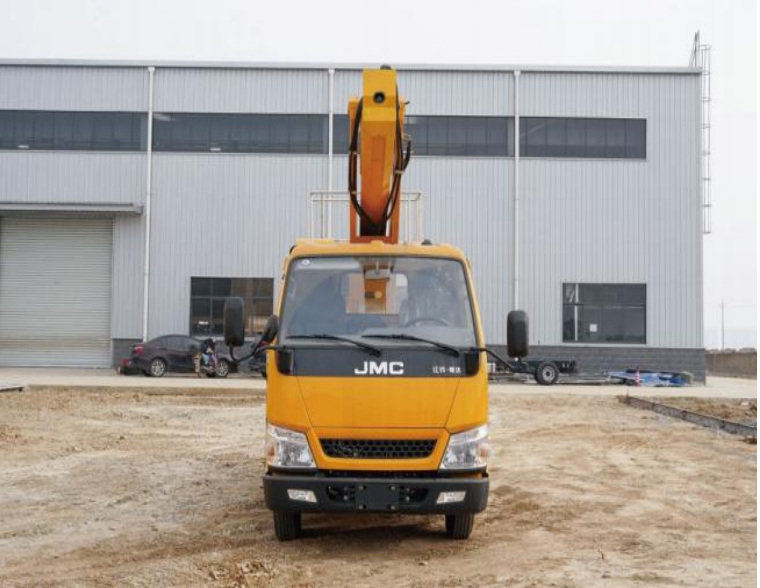

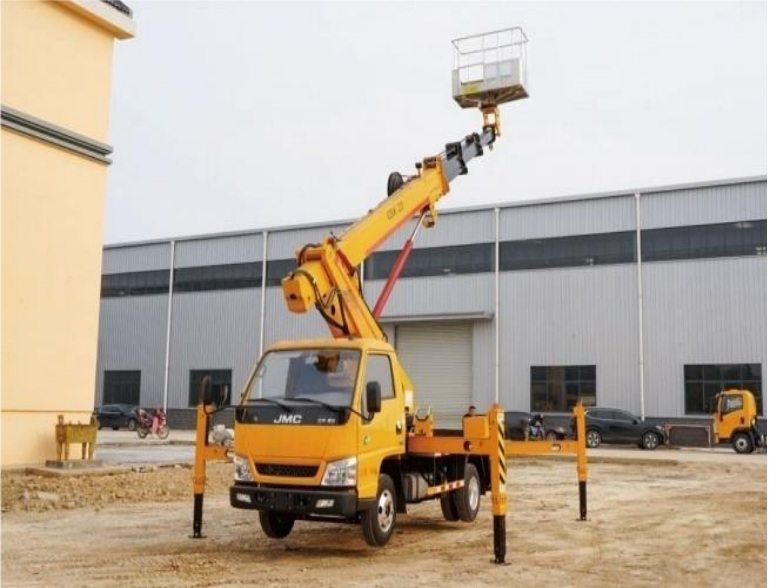

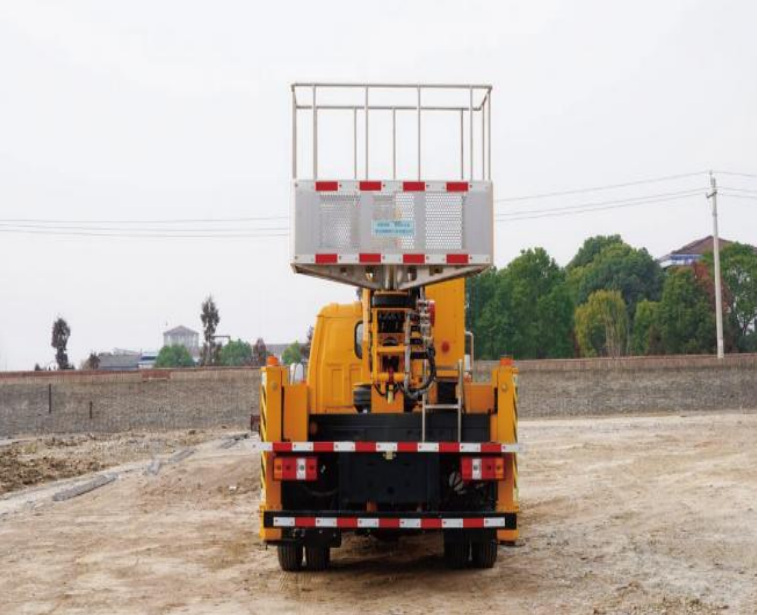

Jiangling 23m Aerial Work Platform
Jiangling 23m Aerial Work Platform is configured for firefighting and emergency-response work, with boom of Four-section hexagonal boom, synchronous telescoping.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Outriggers | Front V-shaped / rear single outriggers |
|---|---|
| Overall dimensions | 5995 × 1960 × 3000 mm |
| Gross vehicle mass | 4495 kg |
| Curb weight | 4365 kg Chassis |
| Wheelbase | 2800 mm |
| Engine model | H20-120E60 |
| Engine displacement | 2771 ml |
| Engine power | 90 kW |
| Horsepower | 120 hp |
| Emission standard | China VI |
| Tires | 185R15LT 8PR |
| Boom | Four-section hexagonal boom, synchronous telescoping |
| Lateral span | 4600 mm |
| Longitudinal span | 4600 mm |
| Rated load of working platform | 200 kg |
| Maximum working range | 13m |
| Swing angle | ±110° |
| Basket dimensions | 1600 × 700 × 1000 mm, customizable |
| Maximum working height | 23m |
| Special notes | Turntable hydraulic-handle or electric-handle operation; remote control, emergency lowering and emergency hydraulic-electric operation are provided. |
