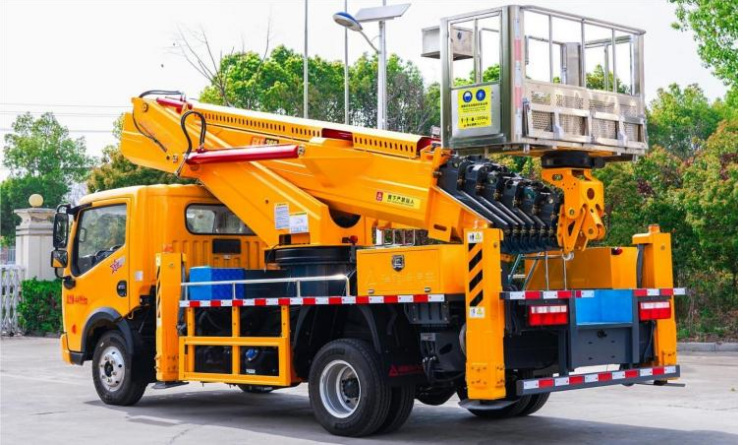

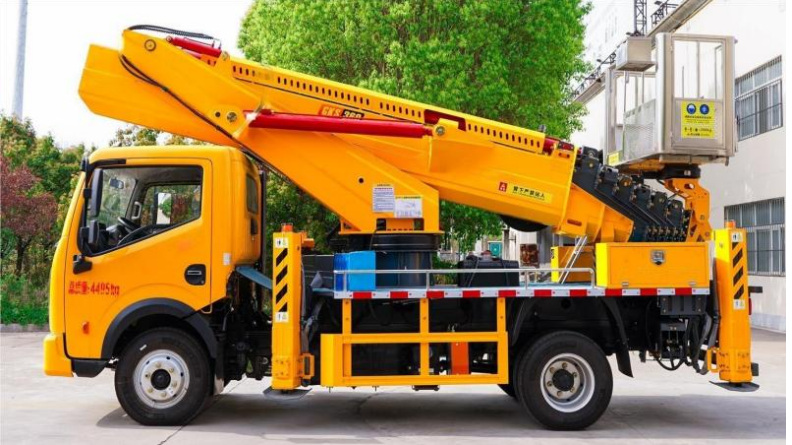

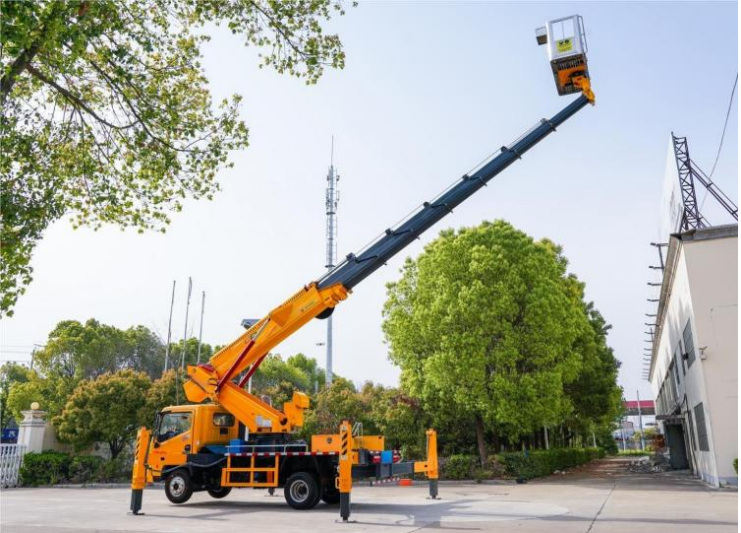

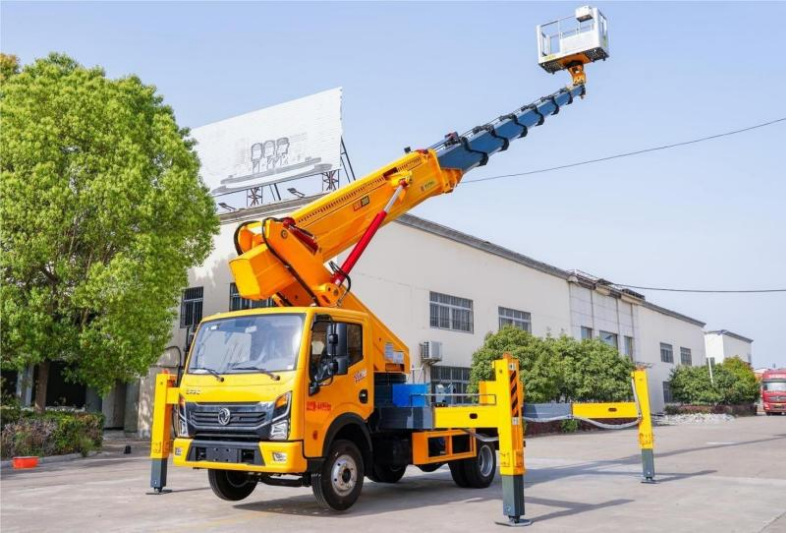

Dongfeng Duolika 36m Aerial Work Platform
Dongfeng Duolika 36m Aerial Work Platform is configured for firefighting and emergency-response work, with boom of 8-section 14-sided synchronous telescoping boom and emission standard of China VI b.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Outriggers | Front V-type & rear V-type two-section outriggers |
|---|---|
| Overall dimensions | 5995 mm × 2200 mm × 3180 mm |
| Gross vehicle mass | 4495 kg |
| Curb weight | 4200 kg Chassis |
| Wheelbase | 3308 mm |
| Engine model | YN25PLUS160B |
| Engine displacement | 2499 ml |
| Engine power | 114 kW |
| Horsepower | 155 hp |
| Emission standard | China VI-B |
| Tires | 7.00R16 8PR |
| Boom | 8-section 14-sided synchronous telescoping boom |
| Lateral span | 5600 mm |
| Longitudinal span | 4800 mm |
| Rated load of working platform | 200 kg |
| Maximum working range | 11m / 15m |
| Swing angle | 360° continuous rotation |
| Basket dimensions | 1600 × 700 × 1000 mm, customizable |
| Maximum working height | 36m |
| Special notes | Turntable fixed operation, wireless remote-control operation, lower-chassis hydraulic-handle operation and an electric emergency pump with full hydraulic-electric emergency operation. |
