Truck-Mounted Aerial Work Platforms

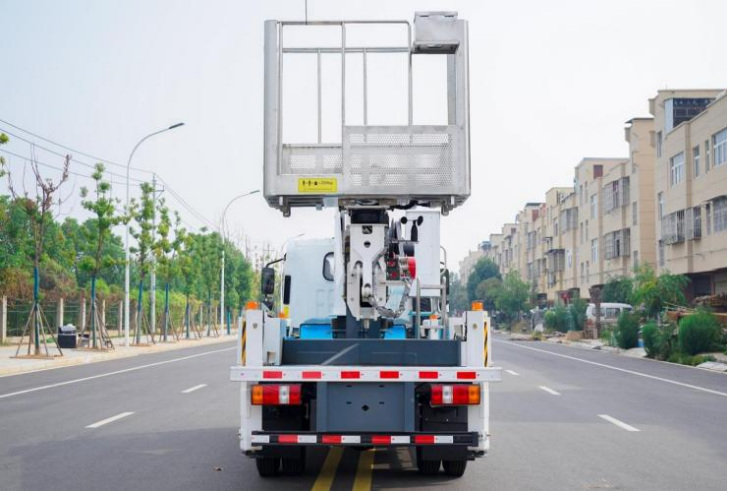

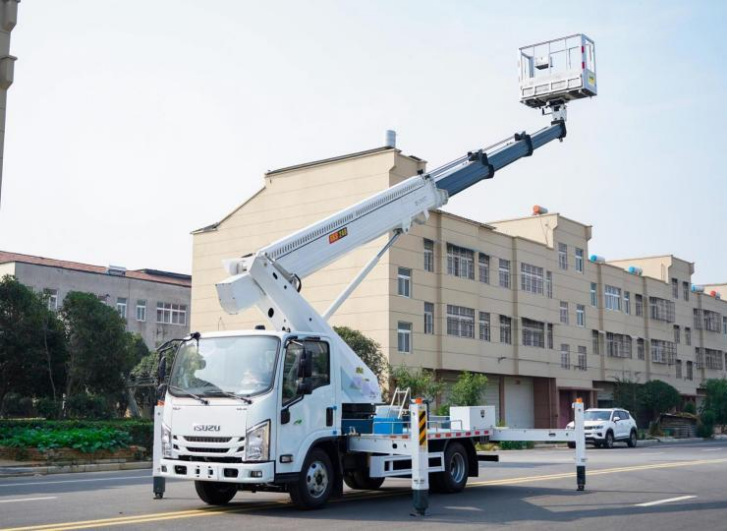

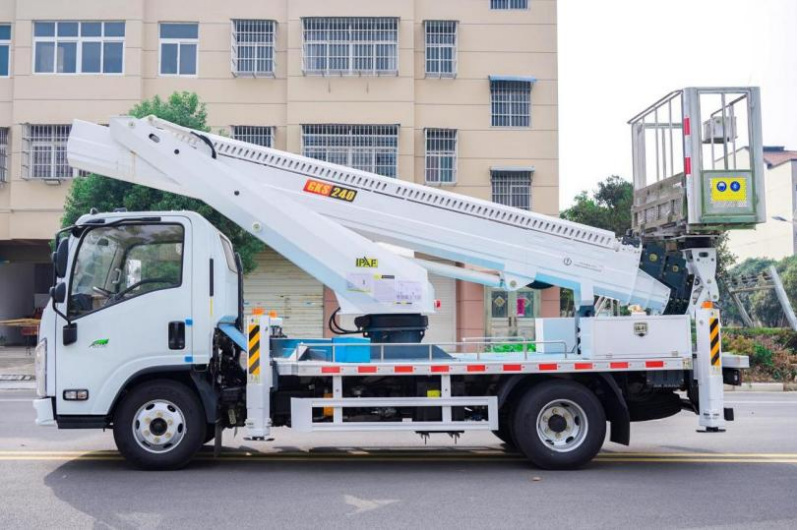

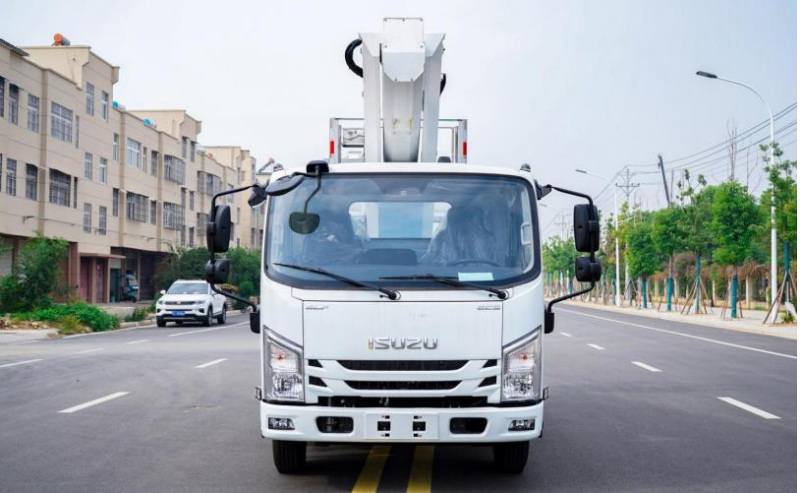

Isuzu 24m Aerial Work Platform
Isuzu 24m Aerial Work Platform is configured for firefighting and emergency-response work, with boom of Four-section 16-sided synchronous telescoping boom.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Outriggers | Front V-shaped / rear single outriggers |
|---|---|
| Overall dimensions | 6490 mm × 2130 mm × 3150 mm |
| Gross vehicle mass | 4495 kg |
| Curb weight | 4200 kg |
| Wheelbase | 3360 mm |
| Engine model | JE4G3ZLQ6K |
| Engine displacement | 2499 ml |
| Engine power | 93 kW |
| Horsepower | 127 hp |
| Emission standard | China VI |
| Tires | 7.00R16 10PR |
| Boom | Four-section 16-sided synchronous telescoping boom |
| Lateral span | 5400 mm |
| Longitudinal span | 5300 mm |
| Rated load of working platform | 200 kg |
| Maximum working range | 10m / 12m |
| Swing angle | 360° continuous rotation |
| Basket dimensions | 1600 × 700 × 1000 mm, customizable |
| Maximum working height | 24m |
| Special notes | Turntable fixed operation, wireless remote-control operation, lower-chassis hydraulic-handle operation and an electric emergency pump with full hydraulic-electric emergency operation. |
| Transmission | 5-speed |
