Fuel Tanker Trucks

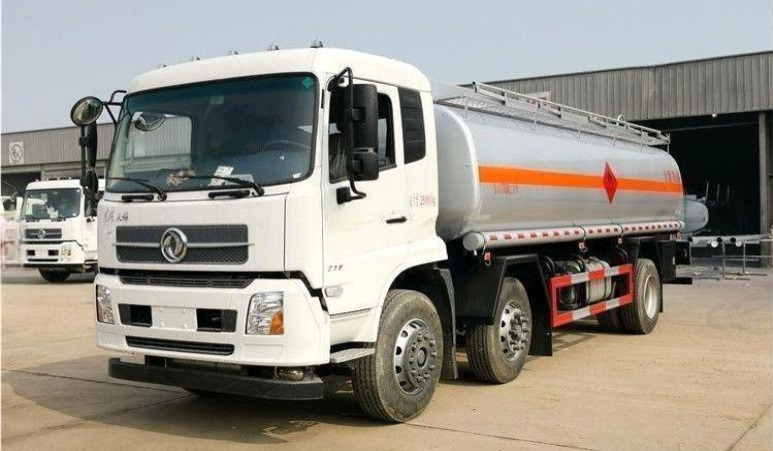

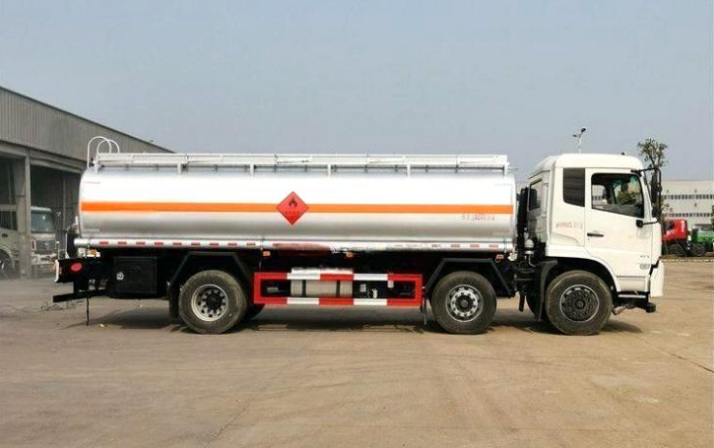

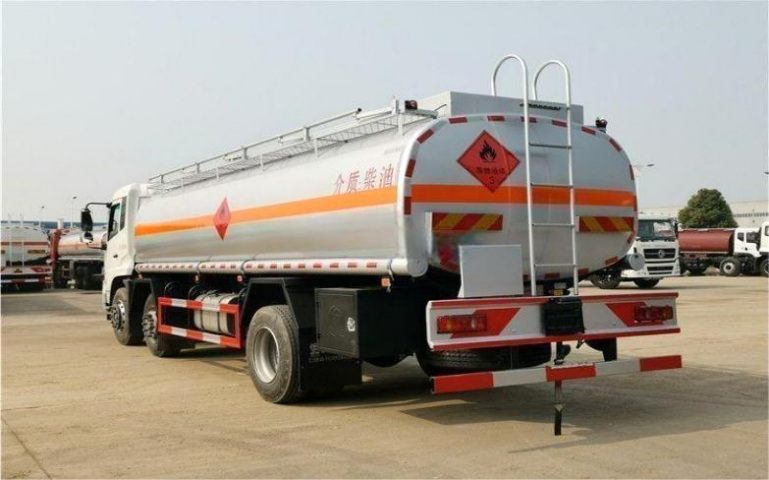

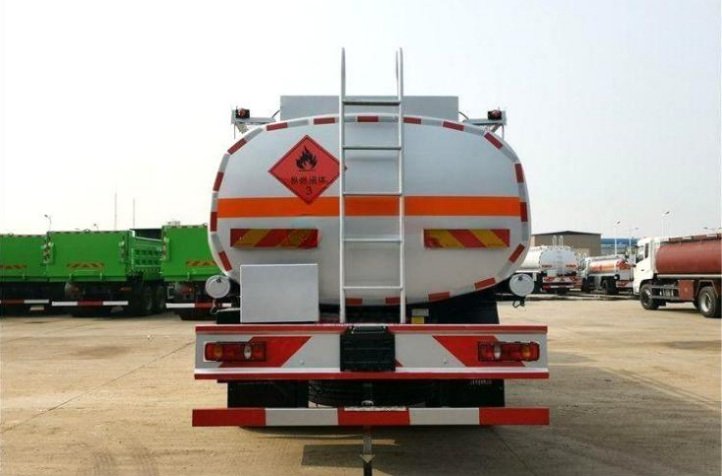

Dongfeng Tianjin 18m³ Oil Transport Truck
Model 5252GYYDA
Dongfeng Tianjin 18m³ Oil Transport Truck configured for fuel and light-oil transport or refuelling.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Transport medium | Diesel |
|---|---|
| Tank / body volume | 17.5m³ |
| Tank dimensions | 7300 × 2300 × 1550 mm |
| Rated payload | 13900 kg |
| Overall dimensions | 9950 × 2480 × 3350 mm |
| Gross vehicle mass | 25000 kg |
| Curb weight | 10905 kg |
| Chassis model | DFH1250BXV |
| Wheelbase | 1800+3800 mm |
| Engine model | ISB210 50 |
| Engine displacement | 5900 ml |
| Engine power | 155 kW |
| Horsepower | 210 hp |
| Tires | 12R22.5 18PR |
| Additional configuration | This is an FL-type dangerous goods transport vehicle, with tank external dimensions of 7300×2300×1550mm; The side and rear protections are bolt-connected with Q235 material, the rear protection cross-section is 120× 60mm with a ground clearance of 500mm; It is equipped with ABS system, a speed limiter (limited to 80km/h) and a satellite-positioning driving recorder, front-wheel disc brakes, front-mounted exhaust pipes, rear axle air suspension, and can be optionally equipped with ETC, tank ladder and other configurations. |
