Fuel Tanker Trucks

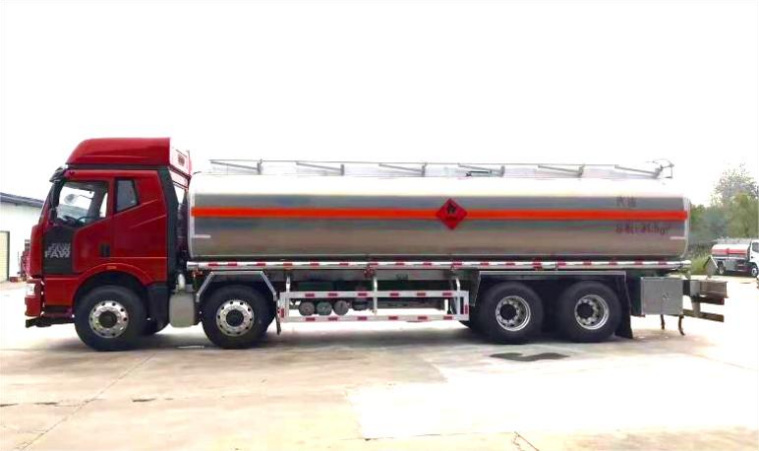

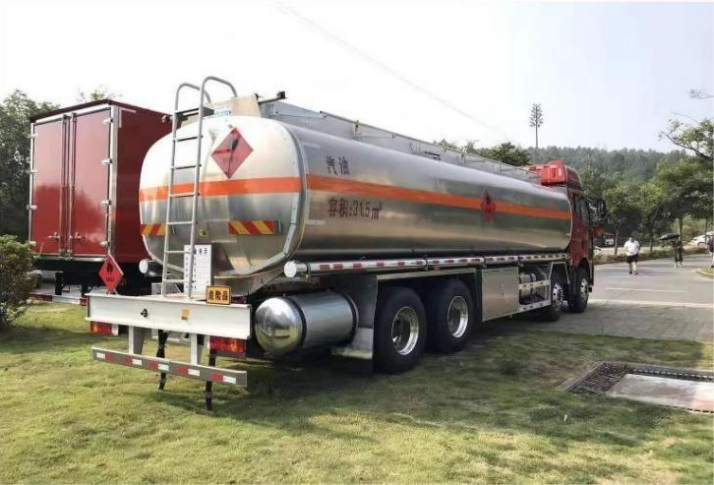

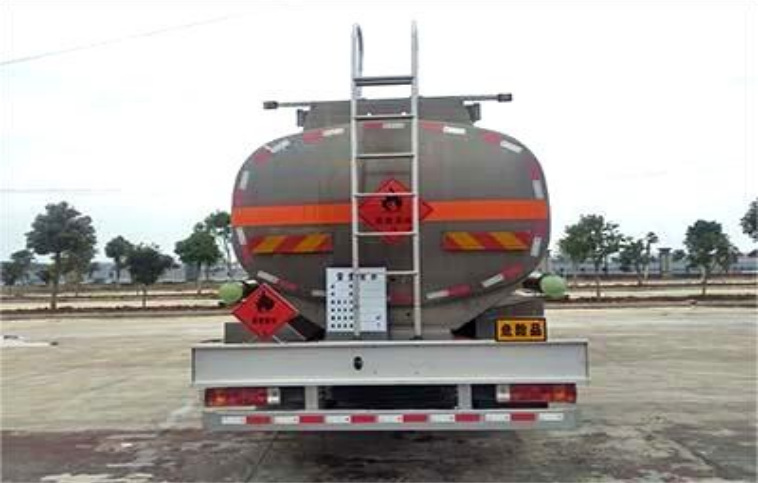

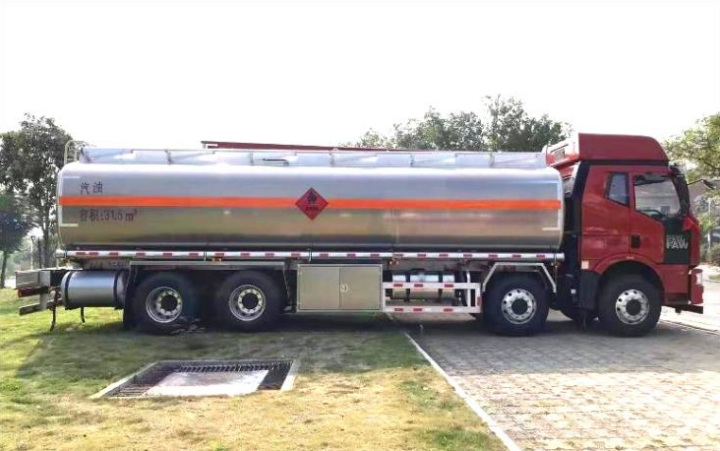

FAW Jiefang 8×4 31m³ Oil Transport Truck
Model 5320GYYC5
FAW Jiefang 8×4 31m³ Oil Transport Truck configured for fuel and light-oil transport or refuelling.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Transport medium | Gasoline |
|---|---|
| Tank / body volume | 31.5m³ |
| Tank dimensions | 8750 × 2480 × 1780 mm |
| Rated payload | 21000 kg |
| Overall dimensions | 11760 × 2500 × 3505 mm |
| Gross vehicle mass | 32000 kg |
| Curb weight | 10805 kg |
| Chassis model | CA5320GYYP63K1L6T4E5 |
| Wheelbase | 1950+4550+1350 mm |
| Engine model | CA6DK1-32E51 |
| Engine displacement | 7146 ml |
| Engine power | 39 kW |
| Horsepower | 325 hp |
| Tires | 12R22.5 |
| Additional configuration | This is an FL-type dangerous goods transport vehicle, with tank external dimensions of 8750×2480×1780mm; The side and rear protections are bolt-connected, the rear protection cross-section is 140×50mm with a ground clearance of 470mm; It is equipped with a speed limiter (limited to 79km/h), a satellite-positioning driving recorder and ABS system, front-wheel disc brakes, front-mounted exhaust pipes, rear axle air suspension, and can be optionally equipped with ETC, high-roof cab and other configurations. |
| Special notes | It is equipped with a speed limiter (limited to 79 km/h), a satellite-positioning driving recorder and ABS system, front-wheel disc brakes, front-mounted exhaust pipes, rear axle air suspension, and can be optionally equipped with ETC, high-roof cab and other configurations |
