Bitumen Tanker Semi-Trailers

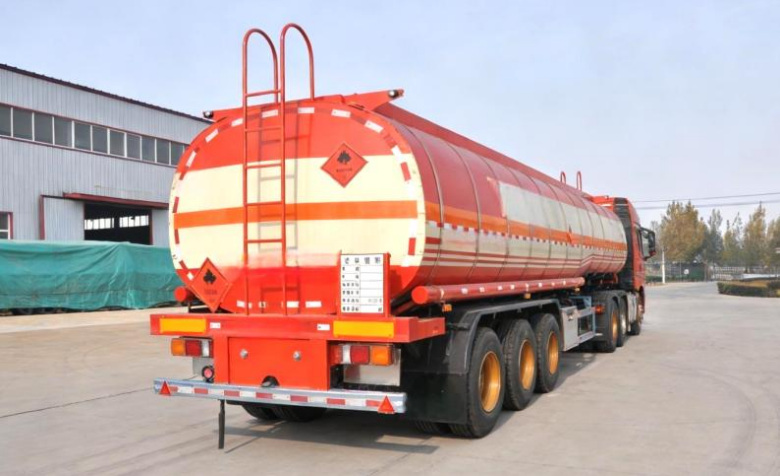

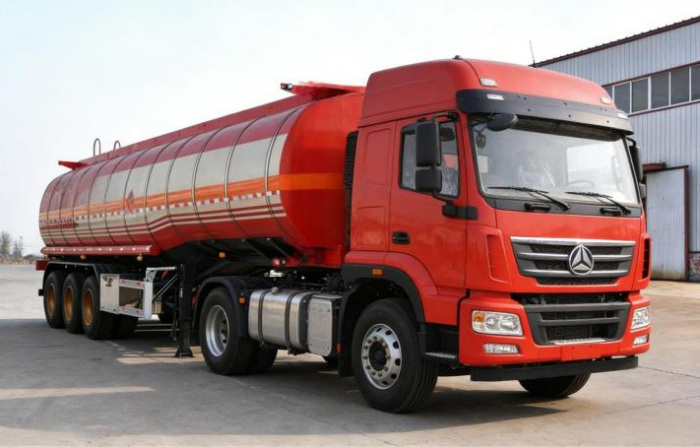

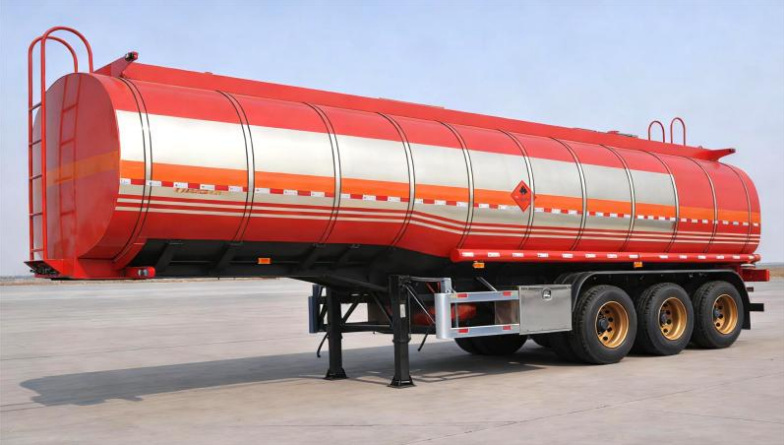

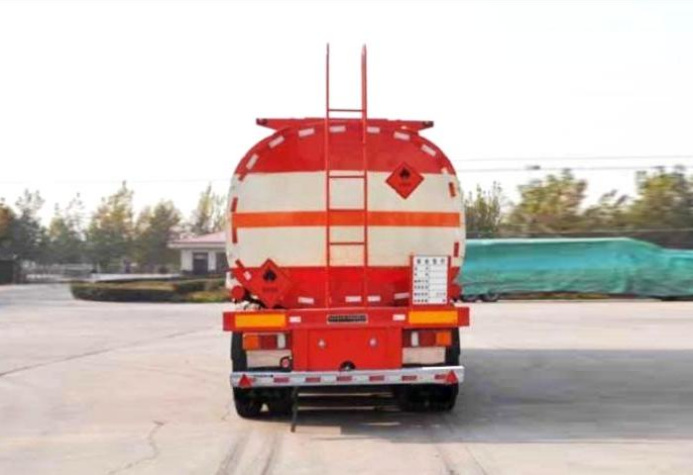

32m³ Asphalt Transport Semi-trailer
Model QLG9402GLY
32m³ Asphalt Transport Semi-trailer configured for heated asphalt or bitumen transport.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 32m³ |
|---|---|
| Tank dimensions | 10460 × 2550 × 1930 mm |
| Rated payload | 31200Kg |
| Overall dimensions | 11000 × 2550 × 3600 mm |
| Gross vehicle mass | 40000Kg |
| Curb weight | 8300Kg |
| Wheelbase | 5290+1310+1310 mm |
| Tires | 12R22.512PR |
| Additional configuration | It belongs to AT-type dangerous goods transport vehicles, medium is asphalt; equipped with ABS, protection material is Q235 plate, rear protection section 145×60mm, ground clearance 500mm; optional light-duty walking mechanism; must be matched with a tractor dedicated for towing dangerous goods transport semi-trailers. |
| Inner Tank Dimensions | 10460×2410×1770mm |
| Transport Medium | Liquid asphalt |
