Bitumen Tanker Semi-Trailers

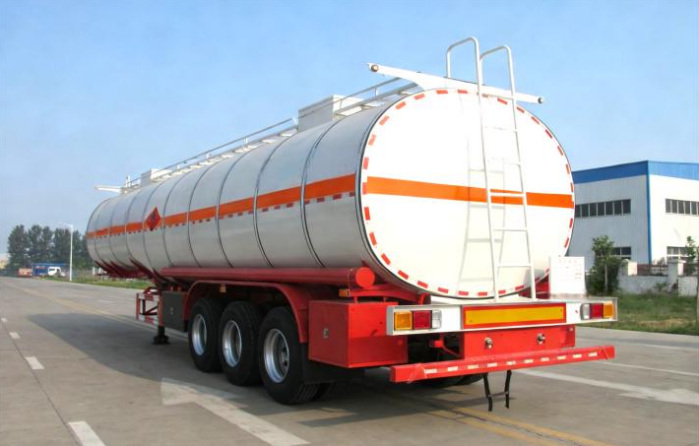

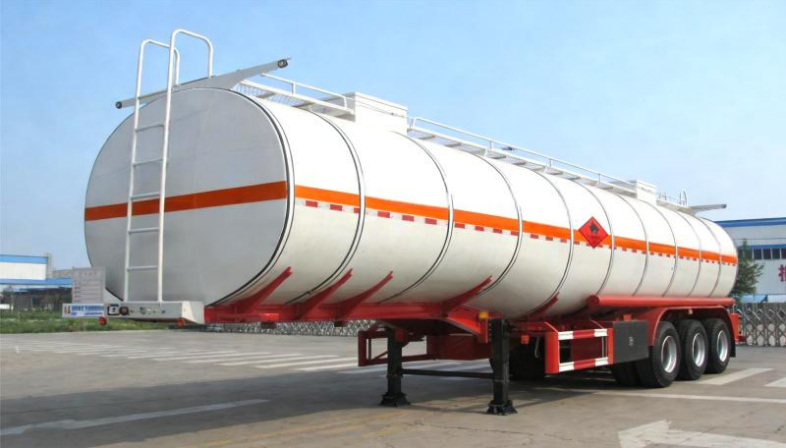

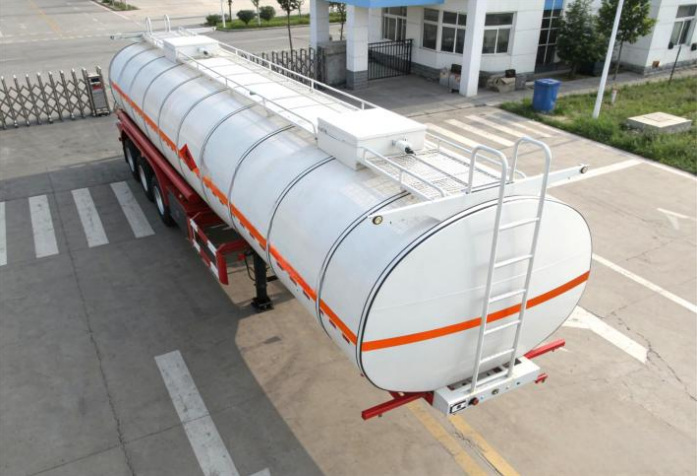

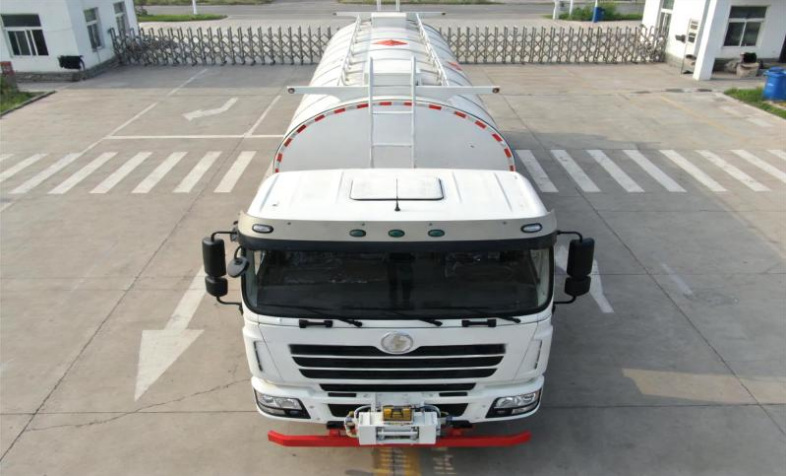

37m³ Asphalt Transport Semi-trailer
Model SKW9407GLY
37m³ Asphalt Transport Semi-trailer configured for heated asphalt or bitumen transport.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 37.4m³ |
|---|---|
| Tank dimensions | 10600 × 2550 × 1870 mm |
| Rated payload | 31000 Kg |
| Overall dimensions | 11000 × 2550 × 3810 mm |
| Gross vehicle mass | 40000 Kg |
| Curb weight | 9000 Kg |
| Wheelbase | 5180+1310+1310 mm |
| Tires | 12R22.5 12PR |
| Additional configuration | It belongs to AT-type dangerous goods transport vehicles, with a maximum allowed medium density of 850 kg/m³; equipped with EBS, protection materials are Q235/aluminum alloy, rear protection section 120×68 mm, ground clearance 500 mm; optional air suspension, ladder, toolbox, etc.; must be matched with a tractor dedicated for towing dangerous goods transport semi-trailers. |
| Transport Medium | Liquid asphalt |
| Inner Tank Dimensions | 10600×2550×1820mm |
