Bitumen Tanker Semi-Trailers

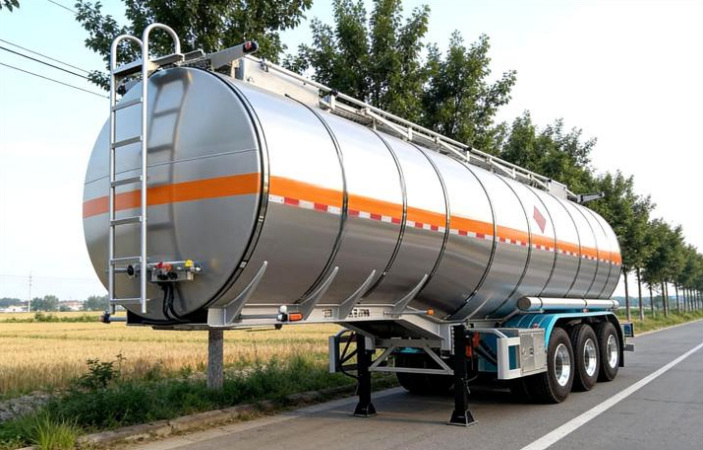

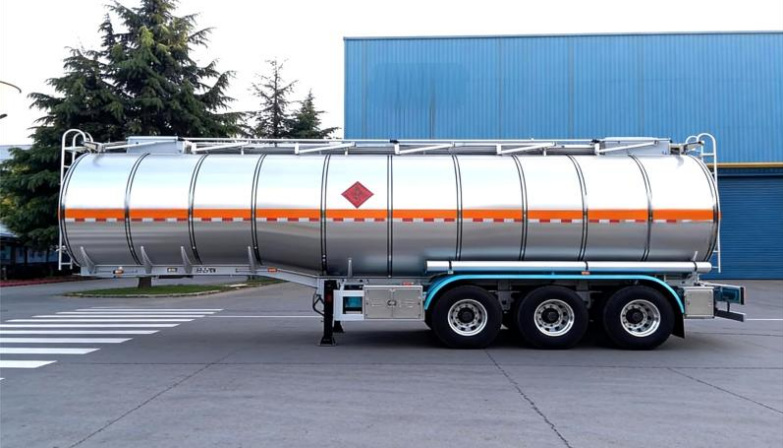

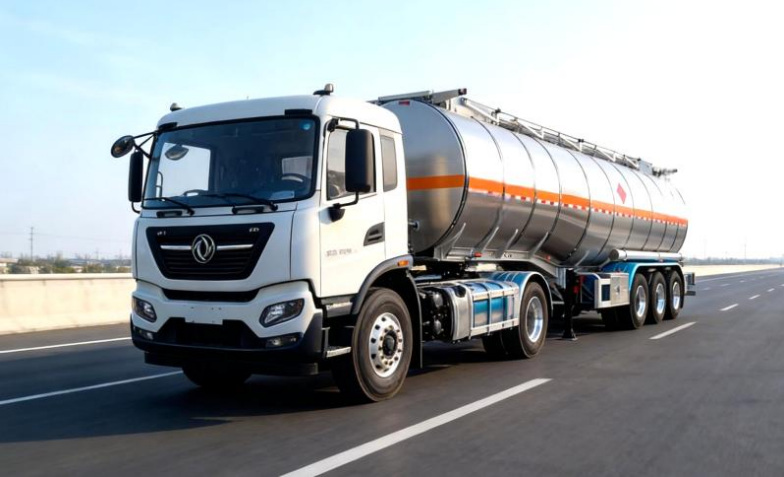

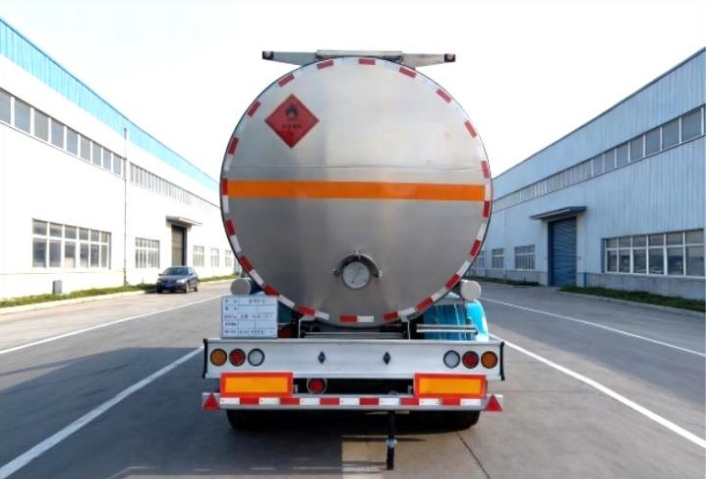

35m³ Asphalt Transport Semi-trailer (CLY9404GLYC)
Model CLY9404GLYC
35m³ Asphalt Transport Semi-trailer (CLY9404GLYC) configured for heated asphalt or bitumen transport.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 34.7m³ |
|---|---|
| Tank dimensions | 9950 × 2238 × 2458 mm |
| Rated payload | 33000 Kg |
| Overall dimensions | 10540 × 2550 × 3850 mm |
| Gross vehicle mass | 40000 Kg |
| Curb weight | 7000 Kg |
| Wheelbase | 4650+1310+1310 mm |
| Tires | 12R22.5 12PR |
| Additional configuration | It belongs to FL-type dangerous goods transport vehicles, with a maximum medium density of 900 kg/m³. Optional lightweight frame or rear high ladder is available; equipped with ABS and EBS; side/rear protection materials are Q235/aluminum alloy/Q345, connected by bolts, rear protection ground clearance 500 mm, rear protection section size 150×60 mm; must be matched with a tractor dedicated for towing dangerous goods transport semi-trailers. |
| Inner Tank Dimensions | 9750×2038×2458 mm |
| Transport Medium | Liquid asphalt |
