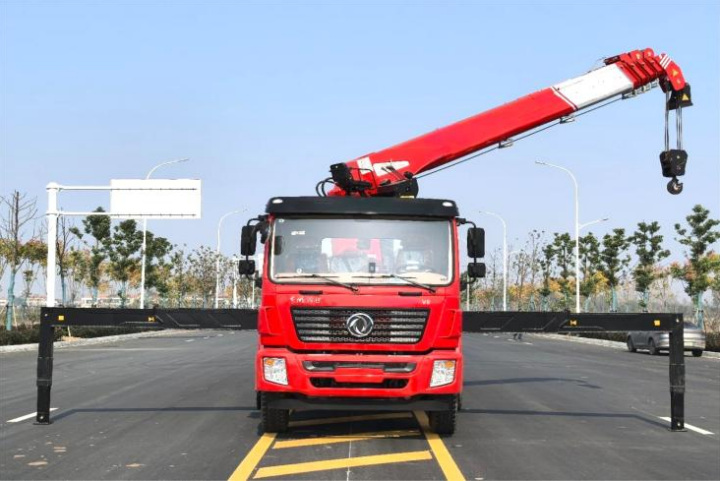

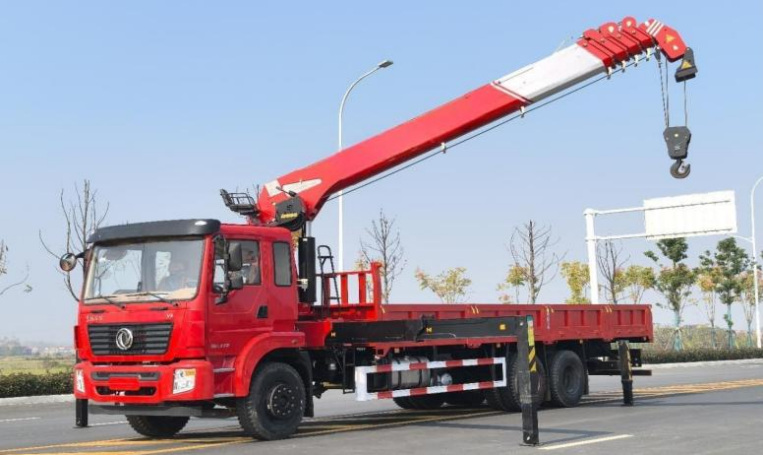

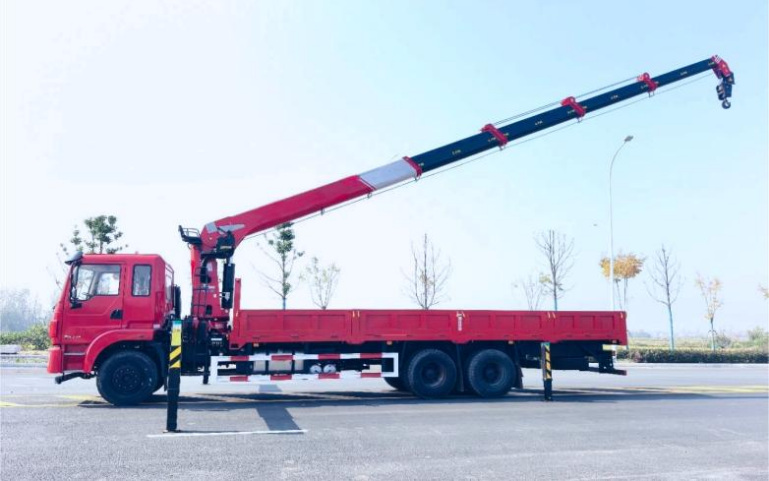

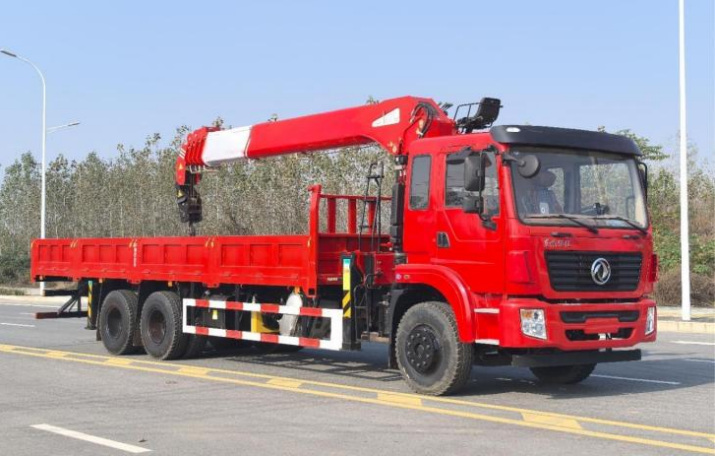

Dongfeng Jincheng V6 Rear Eight-wheel 14-ton 5-section Boom Truck Crane
Factory specification sheet for the Dongfeng Jincheng V6 Rear Eight-wheel 14-ton 5-section Boom Truck Crane.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Crane | 14-ton 5-section straight boom with synchronous telescoping |
|---|---|
| Boom length | 20m |
| Maximum lifting height | 22m |
| Outriggers | Composite double-section front outriggers; single-cylinder hydraulic rear outriggers |
| Cargo box dimensions | 8500 / 7100 × 2450 × 550 mm |
| Overall dimensions | 12000 × 2550 × 3750 mm |
| Gross vehicle mass | 25000 kg |
| Curb weight | 17600 kg |
| Wheelbase | 5900+1350 mm |
| Engine model | YCS06270-60 |
| Engine displacement | 6200 ml |
| Engine power | 198 kW |
| Horsepower | 270 hp |
| Tires | 11.00R20 |
| Axles | Dana 5.5T front / 11.5T tandem rear; 5.571 ratio |
| Cab | Jincheng V6 with 2-point suspension |
| Transmission | Fast 9-speed |
| Special notes | Crane equipment includes twin pump, upper control, remote control, through subframe, radiator and rear outriggers. The cab is fitted with central locking, power windows, shock-absorbing seat, USB, driving recorder, A/C, LED lamps, ABS, PTO and remote throttle. |
