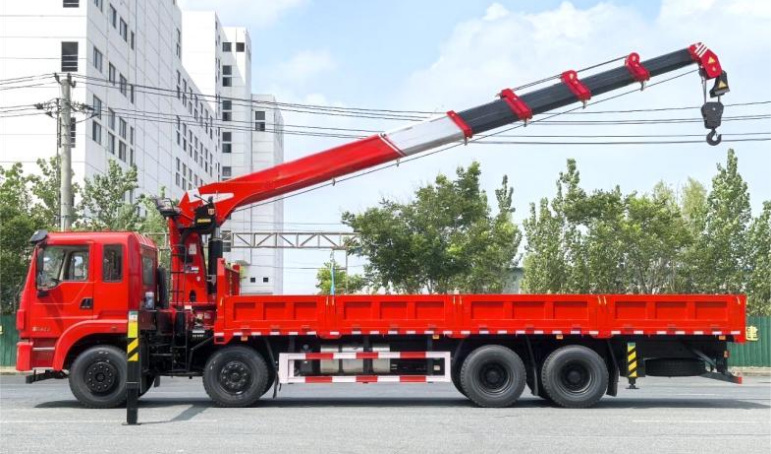

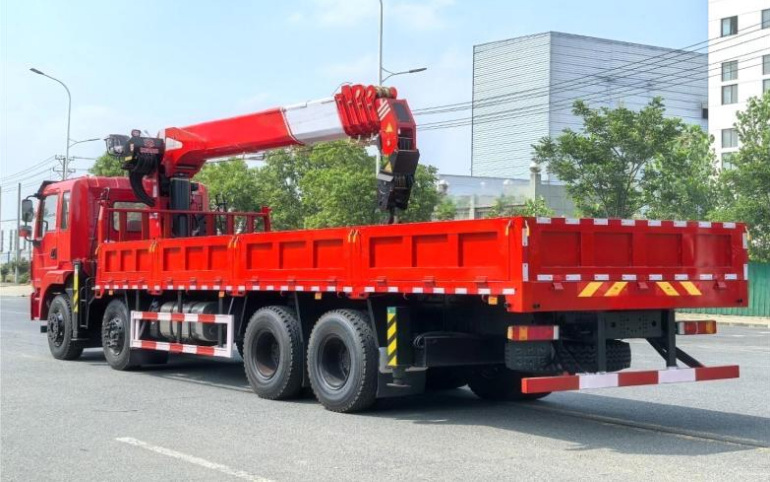

Dongfeng Jincheng V6 Front Four Rear Eight 14-ton 5-section Boom Truck Crane
Factory specification sheet for the Dongfeng Jincheng V6 Front Four Rear Eight 14-ton 5-section Boom Truck Crane.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Crane | 14-ton 5-section straight boom with synchronous telescoping |
|---|---|
| Boom length | 20m |
| Maximum lifting height | 22m |

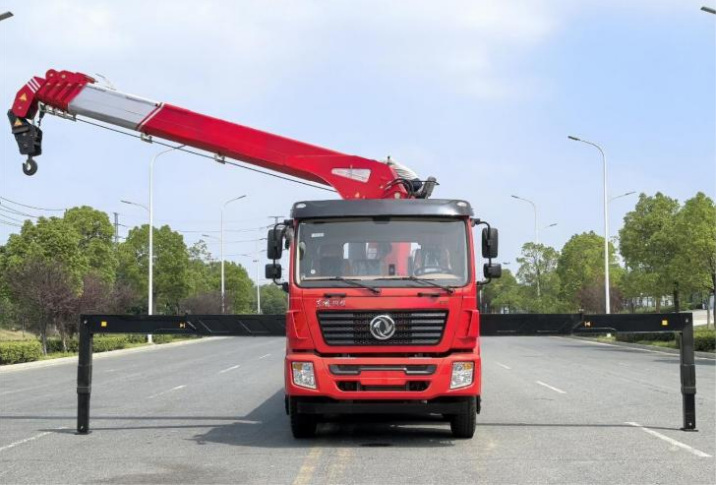

| Outriggers | Composite double-section front outriggers; dual-chamber rear outriggers |
| Cargo box dimensions | 8400 × 2450 × 550 mm |
| Overall dimensions | 12000 × 2550 × 3750 mm |
| Gross vehicle mass | 31000 kg |
| Curb weight | 22150 kg |
| Wheelbase | 2150+4250+1350 mm |
| Engine model | D6.7NS6B320 |
| Engine displacement | 6700 ml |
| Engine power | 235 kW |
| Horsepower | 320 hp |
| Tires | 11.00R20 |
| Axles | Dana 5.5T front / 11.5T tandem rear |
| Cab | Jincheng V6 with 4-point suspension |
| Transmission | Fast 10-speed |
| Special notes | Qixing V6 4-point suspension cab, with central lock, power windows, seat, USB, recorder, A/C, LED, ABS, PTO, remote throttle, compliant with new regulations; Changxing 14t 5-section G crane, upper control, synchronous telescoping, boom 19.9m, front outriggers, twin pump, radiator, sub-beam, dual-chamber rear outriggers; 8400×2450×550mm riveted cargo box, 3mm side, 5mm bottom, steel cross members 280mm spacing, gantry reinforcement. |
