Sewer Jetting Trucks

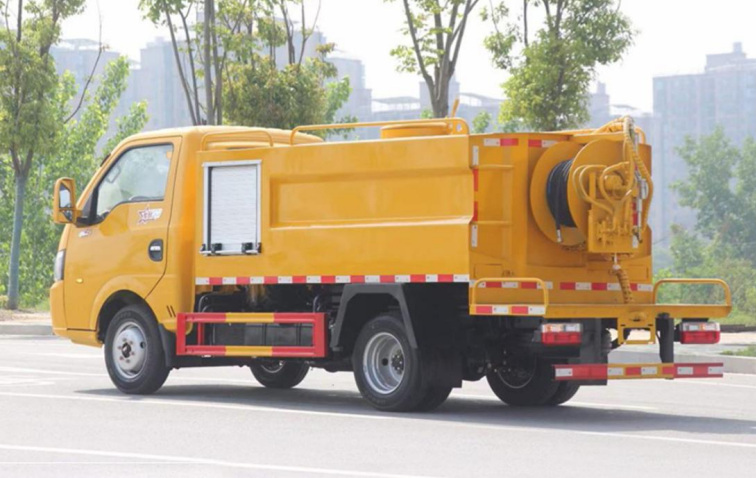

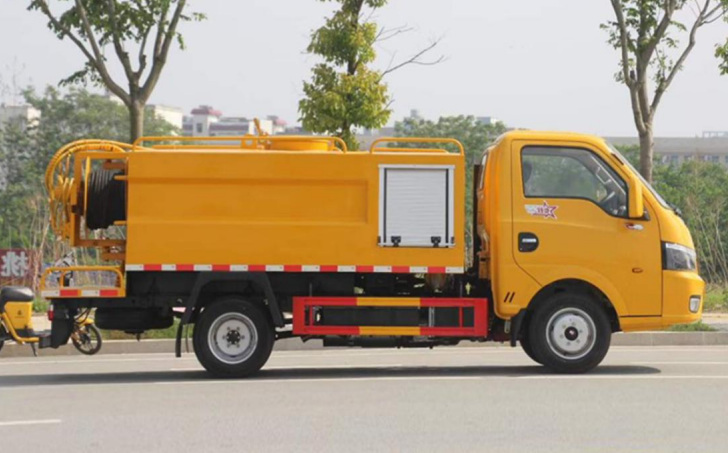

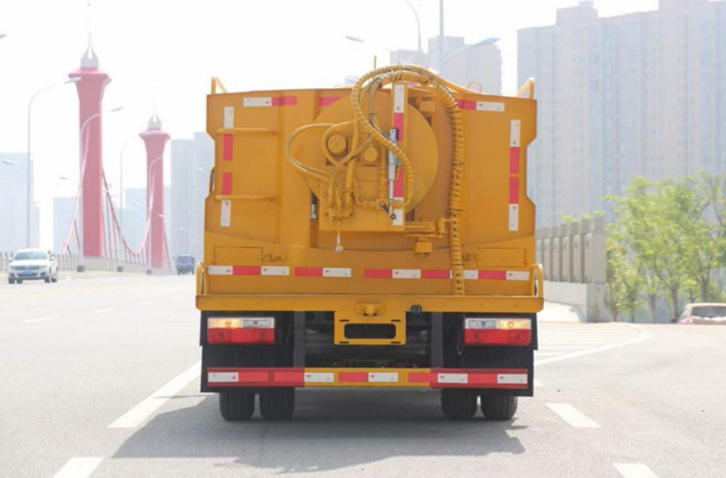

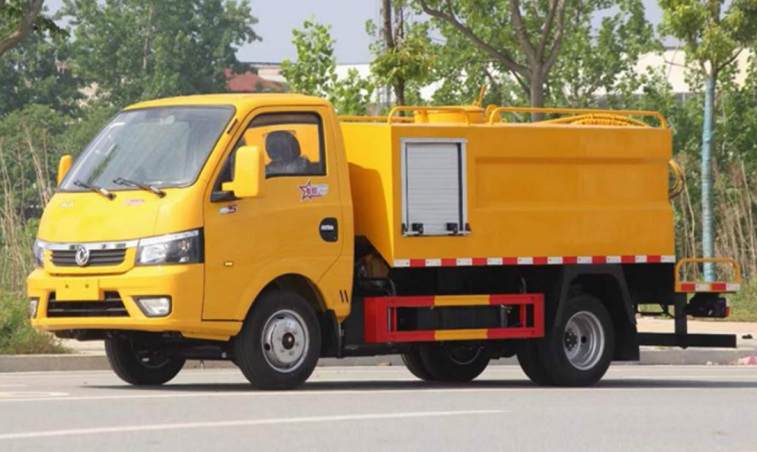

Dongfeng Tuyi 2m³ Sewer Jetter & Cleaning Truck
Model 5040GQXAHQ
Dongfeng Tuyi 2m³ Sewer Jetter & Cleaning Truck configured for sewer cleaning and pipeline dredging.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 1.63m³ |
|---|---|
| Tank dimensions | 1300 × 1650 × 1080 mm |
| Rated payload | 1565 kg |
| Overall dimensions | 5400 × 1680 × 2000 mm |
| Gross vehicle mass | 4495 kg |
| Curb weight | 2800 kg |
| Chassis model | EQ1045SJ16DC |
| Wheelbase | 2800 mm |
| Engine model | Q23-95E60 |
| Engine displacement | 2300 ml |
| Engine power | 70 kW |
| Horsepower | 95 hp |
| Tires | 185R15LT 8PR |
| Additional configuration | This vehicle is used for cleaning urban sewers, road surfaces, pipeline sediments, and dredging dead-end mud ditches, and can also be used for cleaning pipelines and the ground. The main special devices are the tank, high-pressure pump, and hose reel. The effective volume of the tank is 1.565 cubic meters, the medium is water, with a density of 1000 kg/m³. Both side and rear protections are welded with Q235B material, the rear protection section size is 100×50mm, and the lower edge height from the ground is 270mm. Equipped with ABS system, only chassis with a wheelbase of 2800mm are selected. |
