Mobile Wastewater Treatment Trucks
JAC Kangling Sewage Treatment Truck
Model 5040TWCH

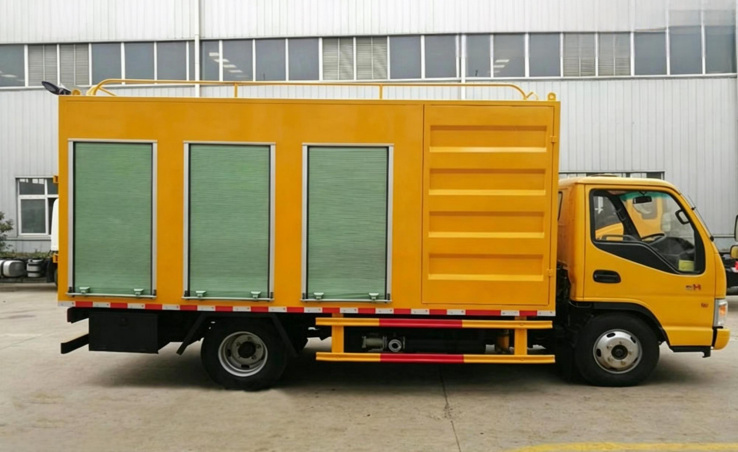

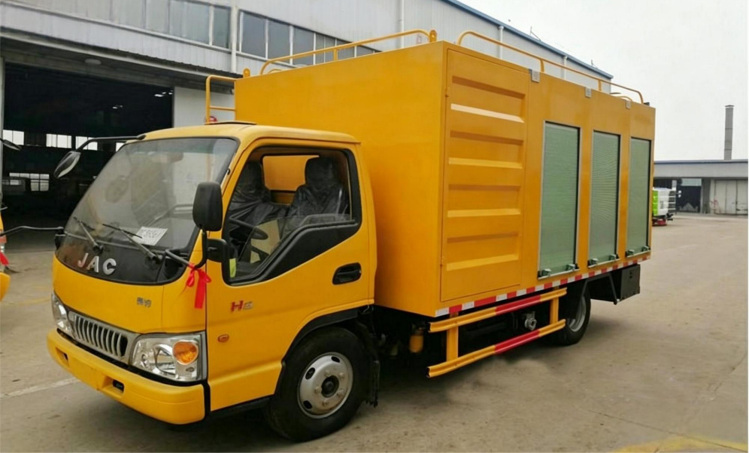

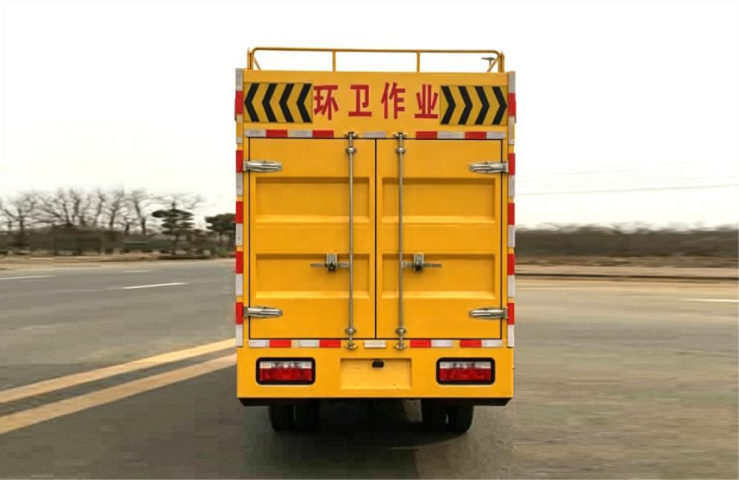

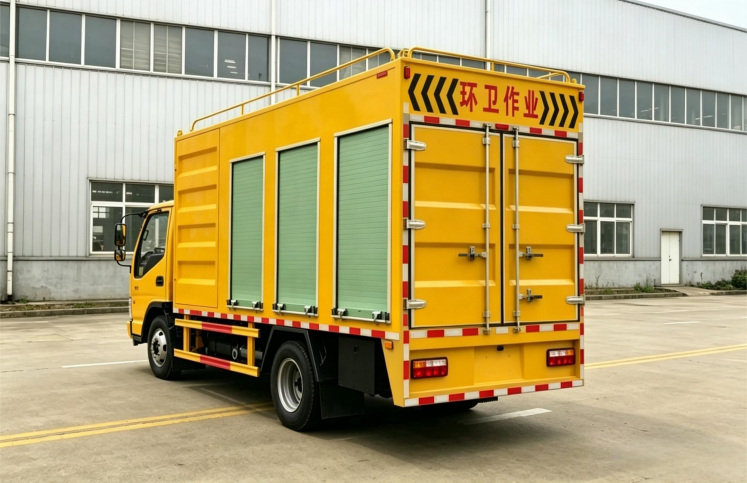

JAC Kangling Sewage Treatment Truck configured for sewage collection and treatment support.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 5995 × 2050 × 2830 mm |
|---|---|
| Gross vehicle mass | 4495 Kg |
| Curb weight | 4365 Kg |
| Chassis model | HFC1041P93K4C2ZV |
| Wheelbase | 3308 mm |
| Engine model | HFC4DF1-2D2 |
| Engine displacement | 2544 ml |
| Engine power | 86 kW |
| Horsepower | 116 hp |
| Tires | 6.50-16LT 10PR |
| Additional configuration | The top is closed and cannot be opened; this vehicle is used for sewage treatment. Working principle: the sewage is pumped into the sewage separator through the sewage pump, the water and impurities are separated in the sewage separator, and finally the water without impurities is discharged; Equipped with: manure solid-liquid separator, vacuum pump, reducer, motor, generator set; The side and rear protection are skirt structures, and the rear ground clearance is 490mm; ABS corresponds to relevant models; Cab related configurations can be selected with the chassis; When the guardrail is selected, the corresponding vehicle height is 2940mm, and when the guardrail is not selected, the corresponding vehicle height is 2830mm; The corresponding relationship of vehicle length/wheelbase/rear overhang is (mm): 5995/3308/1602, 5995/3360/1550 |
