Mobile Wastewater Treatment Trucks

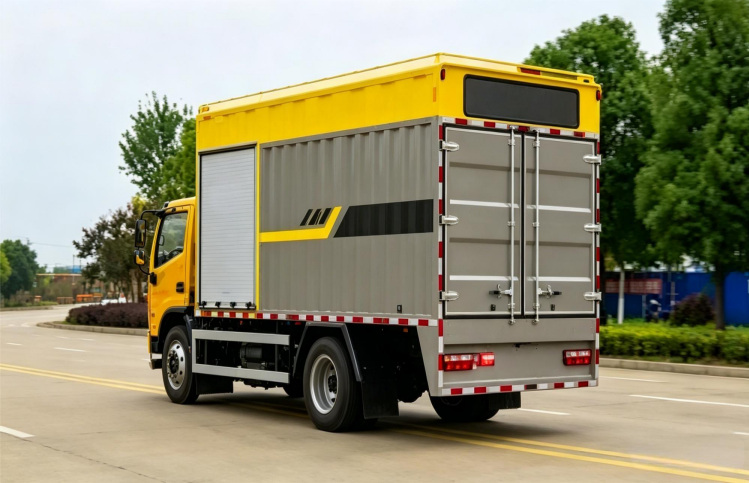

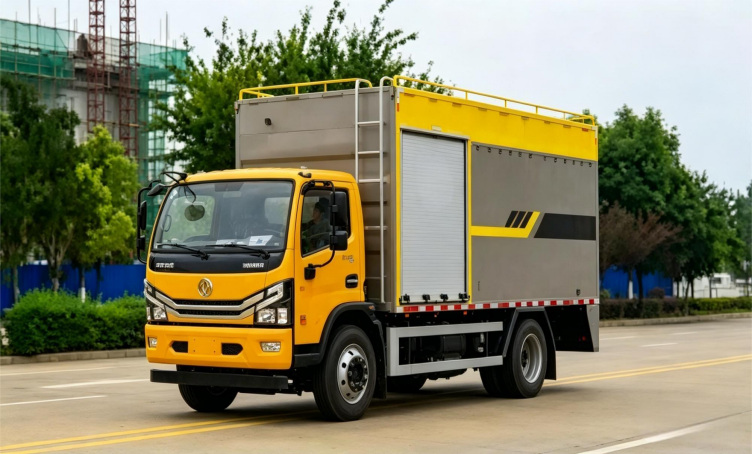

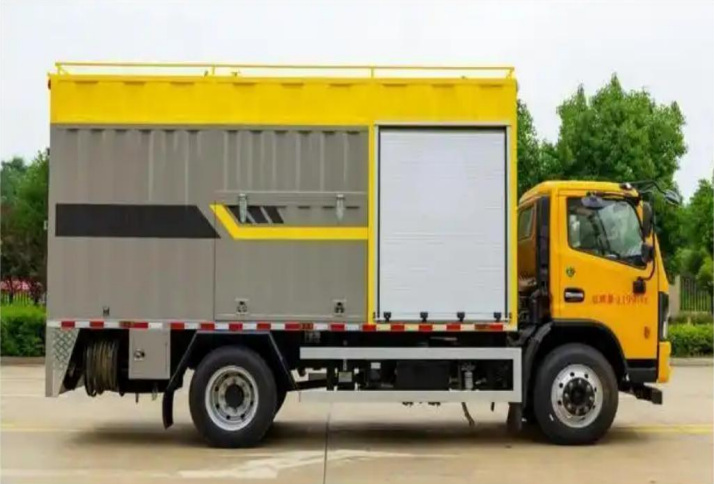

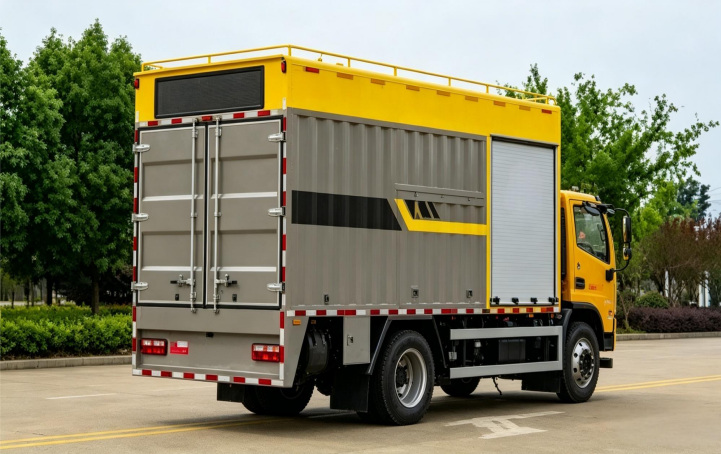

Dongfeng Kaipute Sewage Treatment Truck
Model 5120TWCE6
Dongfeng Kaipute Sewage Treatment Truck configured for sewage collection and treatment support.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 7120 × 2400 × 2400 mm |
|---|---|
| Gross vehicle mass | 11995 Kg |
| Curb weight | 10360 Kg |
| Chassis model | EQ1125SJ8CDC |
| Wheelbase | 3800 mm |
| Engine model | YCY30165-60 |
| Engine displacement | 2970 ml |
| Engine power | 121 kW |
| Horsepower | 164 hp |
| Tires | 245/70R19.5 8PR |
| Maximum speed | 89 km/h |
| Additional configuration | This vehicle's special devices include vacuum pump, high-pressure pump, sewage pump, etc. Its main purpose is to suck out dirt from the sewage tank, then separate the dirt into water and solid dirt; side protection material: aluminum alloy, connection method: welded connection; rear protection material: Q235B, connection method: bolted connection, rear protection section size (mm): 120×50, rear protection ground clearance (mm): 460; when the speed limiting device is optionally installed, the maximum speed is 89km/h; cab can be optionally installed with the chassis, fuel tank, urea tank, air tank, battery installation position can be optionally installed with the chassis, tool box can be optionally not installed, reel can be optionally not installed; the corresponding relationship of overall size/wheelbase/rear overhang (mm) is: 7120/3800/1180, 7257/3950/1130, 7070/3700/1130, 7250/3800/1260 |
