Sinotruk HOWO T5G Fire Rescue Truck
A fire-rescue vehicle with supplied lifting, winching and equipment-carrying provisions for complex incident response.
Rescue crane5-ton folding craneRated payload5000 kgChassis modelZZ5207TXFV471GE5Engine power248 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Rescue crane | 5-ton folding crane |
|---|---|
| Rated payload | 5000 kg |
| Overall dimensions | 9120 × 2530 × 3600 mm |
| Gross vehicle mass | 13000 kg |
| Curb weight | 8000 kg |
| Chassis model | ZZ5207TXFV471GE5 |
| Wheelbase | 4700 mm |
| Engine model | MC07.34-50 |
| Engine displacement | 6870 ml |
| Engine power | 248 kW |
| Horsepower | 340 hp |
| Tires | 315/80R22.5 |

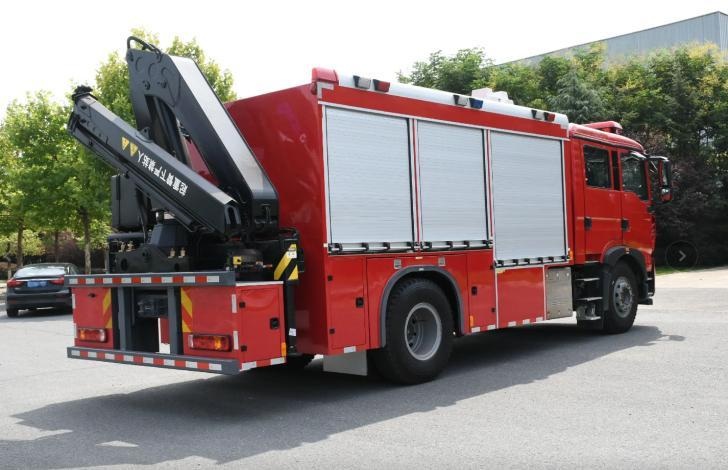

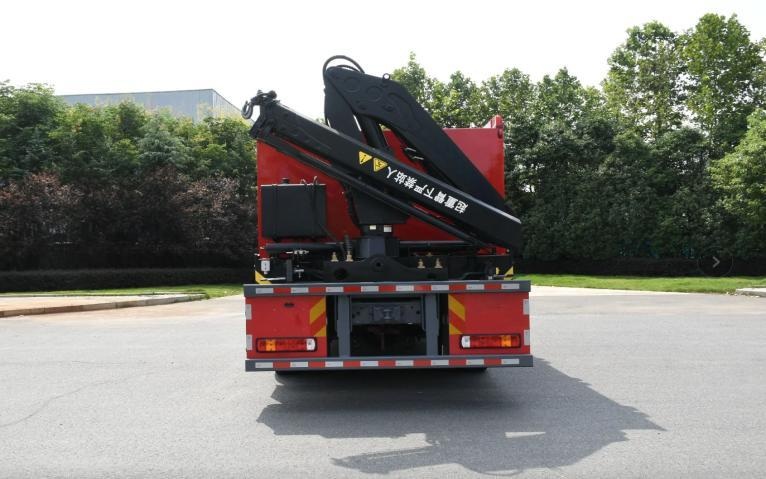

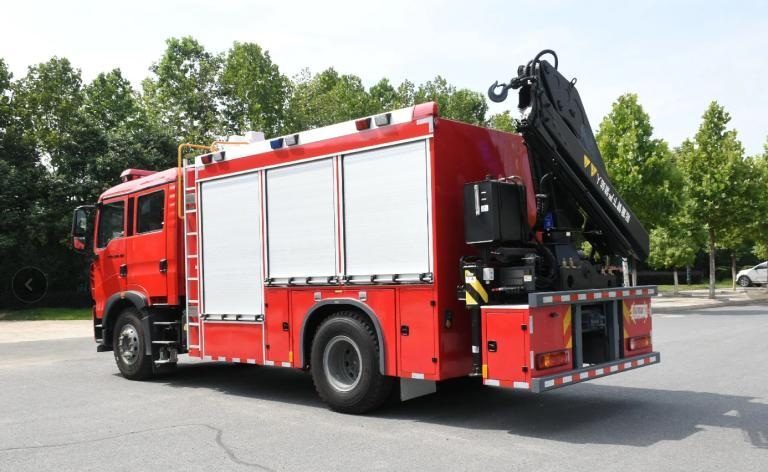

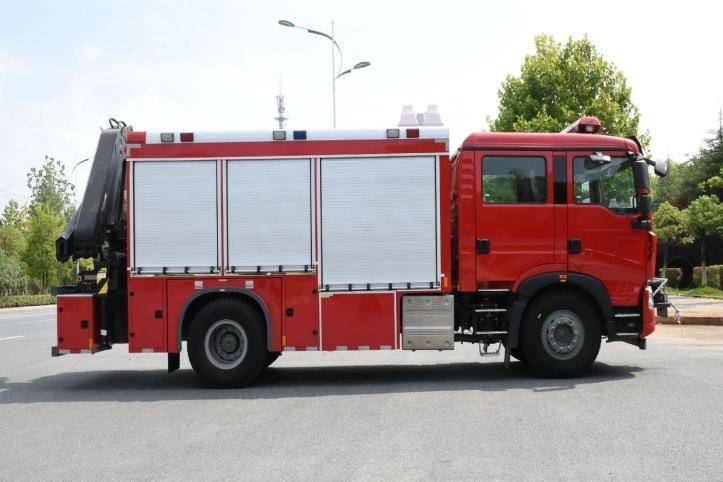

| Special notes | Fire rescue truck equipped with a 5-ton folding crane, a front 75 kN electric winch, and aluminum-alloy roller-shutter equipment-compartment doors. The supplied catalog states it can carry cutting, life-saving and lighting equipment for complex rescue scenes including building collapse, traffic accidents and chemical leaks. |
