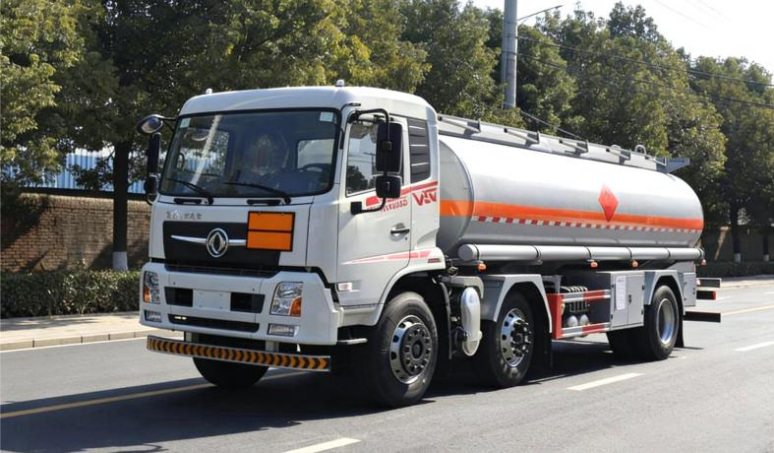

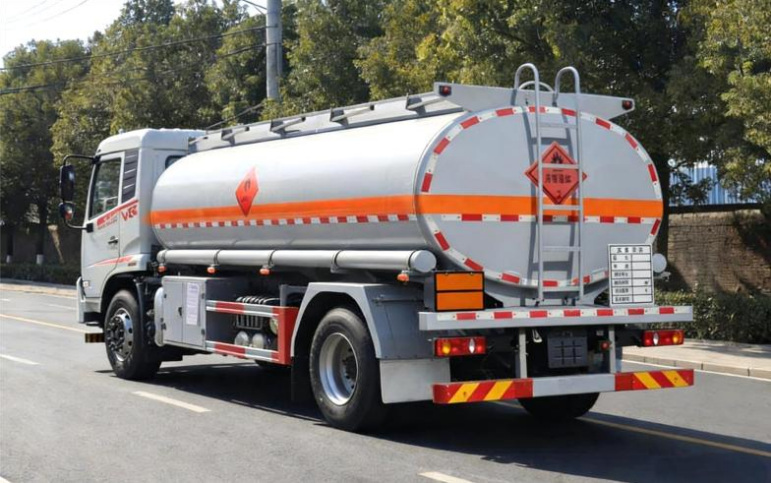

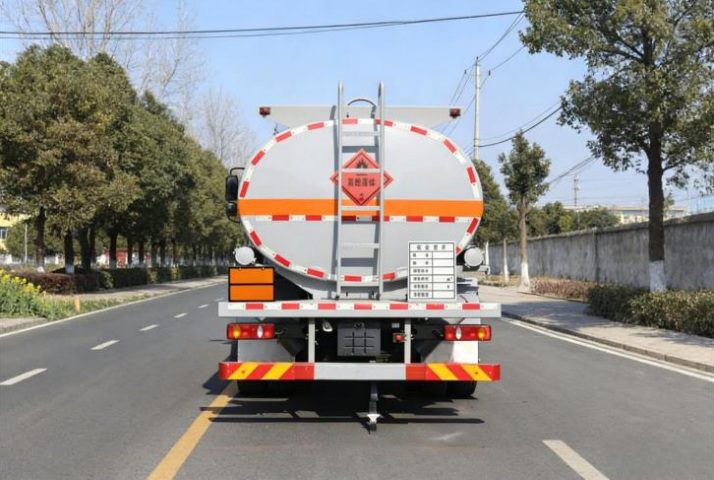

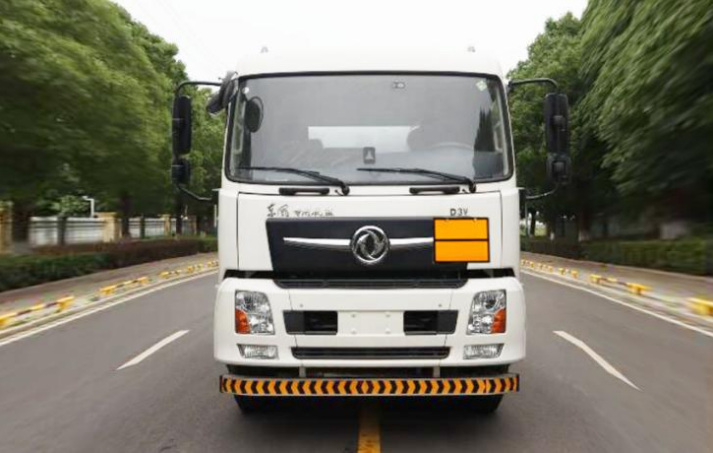

Dongfeng D3V 19m³ Light Oil Tanker
Model 5261GYYDF6
Dongfeng D3V 19m³ Light Oil Tanker configured for fuel and light-oil transport or refuelling.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 19.3m³ |
|---|---|
| Tank dimensions | 7300 × 2220 × 1550 mm |
| Rated payload | 15770 kg |
| Overall dimensions | 10170 × 2550 × 3210 mm |
| Gross vehicle mass | 25500 kg |
| Curb weight | 9600 kg |
| Chassis model | DFV1263GW6DJ1 |
| Wheelbase | 1995+3800 mm |
| Engine model | B6.2NS6B260 |
| Engine displacement | 6200 ml |
| Engine power | 191 kW |
| Horsepower | 259 hp |
| Tires | 295/80R22.5 18PR |
| Additional configuration | This is an FL-type hazardous materials transport vehicle with tank external dimensions 7300×2220×1550mm; the side and rear protection are made of Q235 material and bolt-connected, with the rear protection section 90×130mm and ground clearance 390mm; it is equipped with an EBS system, a speed limiter (max speed 80km/h) and a satellite-positioned driving recorder, featuring front disc brakes, front-mounted exhaust pipe and rear-axle air suspension; optional ETC on-board device, ladder and protection styles are available. |
| Transport Medium | Kerosene&Diesel |
