Fuel Tanker Trucks
Dongfeng Xiaofuruika 5m³ Refueling Truck
Model 5071GJY6

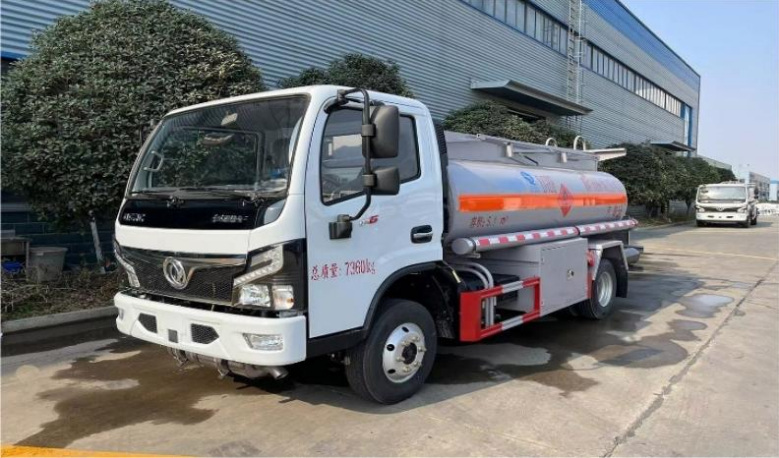

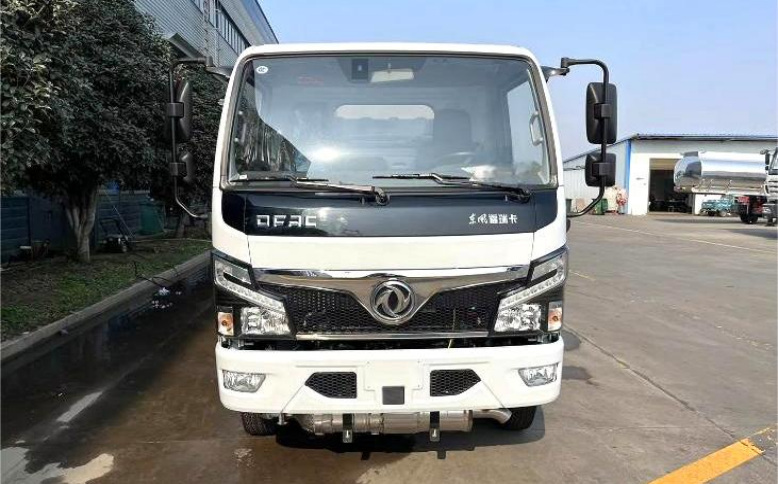

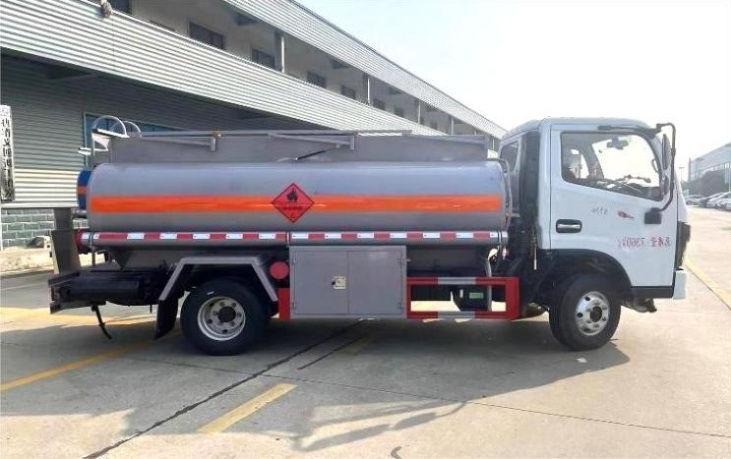

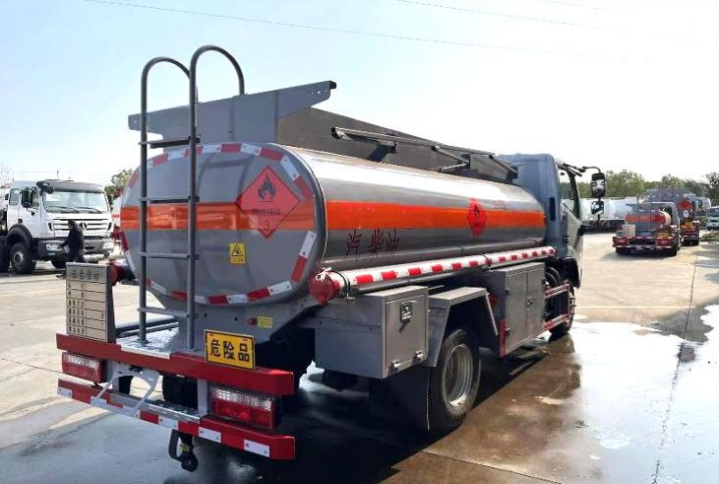

Dongfeng Xiaofuruika 5m³ Refueling Truck configured for fuel and light-oil transport or refuelling.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 5.1m³ |
|---|---|
| Tank dimensions | 4000 × 1600 × 1000 mm |
| Rated payload | 3410 kg |
| Overall dimensions | 5990 × 2050 × 2480 mm |
| Gross vehicle mass | 7360 kg |
| Curb weight | 3820 kg |
| Chassis model | EQ1075SJ3CDFWXP |
| Wheelbase | 2700 mm |
| Engine model | D20TCIF1 |
| Engine displacement | 1999 ml |
| Engine power | 93 kW |
| Horsepower | 126 hp |
| Tires | 7.00R16LT 14PR |
| Additional configuration | ith 60/30 dedicated pump, full EU standard system (unloading valve, vapor recovery valve, anti-overflow probe, static grounding reel) and EU standard tank opening, equipped with high-flow fuel dispenser + 15m thickened reel gun (pump-in/out available, dispenser on both sides of cab); includes subsea valve, 2 tank-length PVC barrels, lifting guardrails, rear ladder, 2 transparent steel-wire discharge hoses, 2 fire extinguishers, flame arrester, toolbox, silver gray metallic paint; external markings include 3M reflective tape, reflective strips, reflective plates, safety notice and "Flammable Liquid" sign, manufactured to new standards, providing chassis certificate, vehicle certificate and registration invoice. |
