Drainage Pumping Trucks

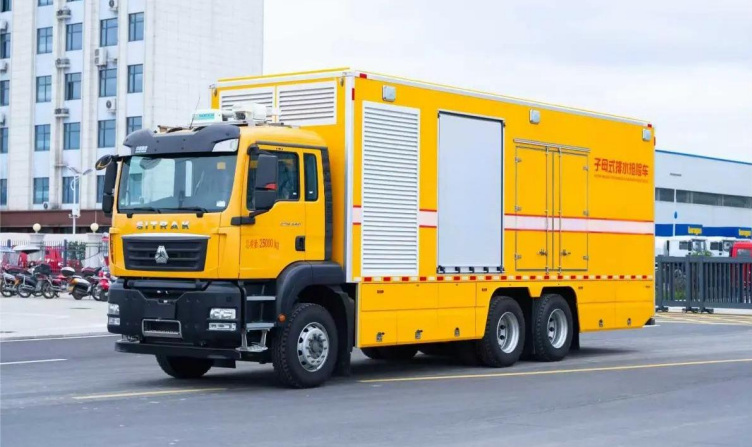

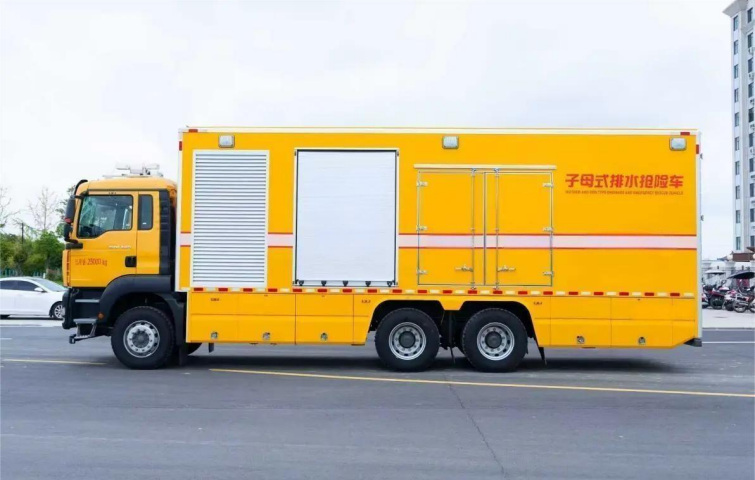

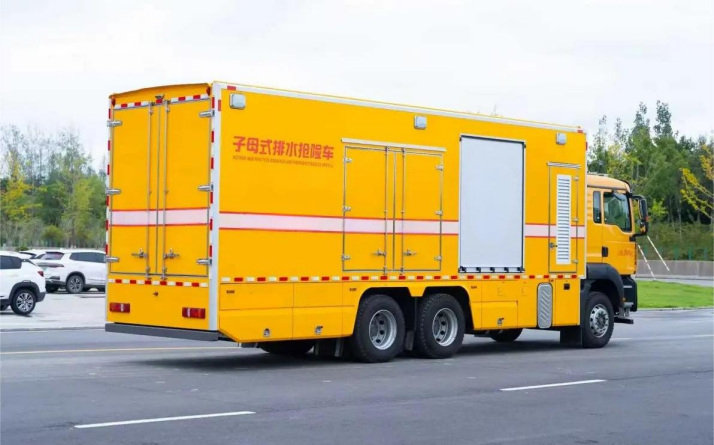

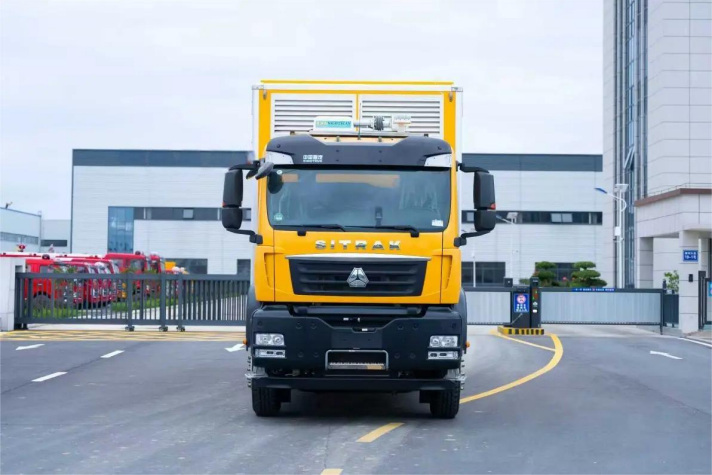

Sinotruk Mother-Sub Drainage Rescue Truck
Model 5250TPSZ6
Sinotruk Mother-Sub Drainage Rescue Truck is configured for emergency pumping and drainage response.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 10530 × 2550 × 3970 mm |
|---|---|
| Gross vehicle mass | 25000 Kg |
| Curb weight | 24870 Kg |
| Chassis model | ZZ1256V524MF1 |
| Wheelbase | 4300+1400 mm |
| Engine model | WP10H400E62 |
| Engine displacement | 9500 ml |
| Engine power | 294 kW |
| Horsepower | 399 hp |
| Tires | 315/80R22.5 18PR |
| Special notes | The special devices are the compartment, water pump and drainage system for drainage rescue operations. ABS corresponds to relevant models; ETC is optional. Side protection is an integral Q235B structure. Rear protection is Q235B, bolted and welded, with a 120 × 120 mm section and 450 mm ground clearance. An optional speed limiter sets the maximum speed to 89 km/h. The vehicle uses leaf-spring suspension, and the side lamp is for parking operation only. The cab can be selected with the chassis. |
