Aircraft Refuellers

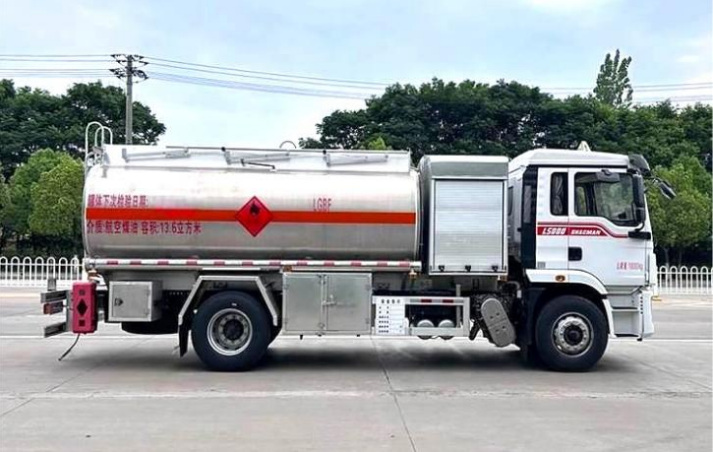

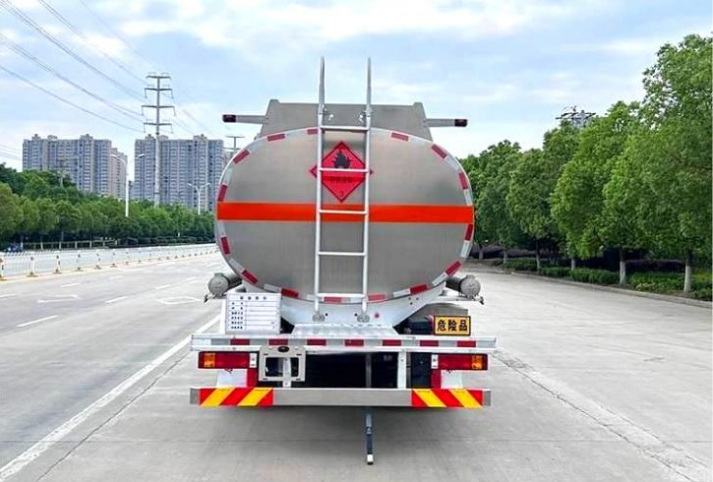

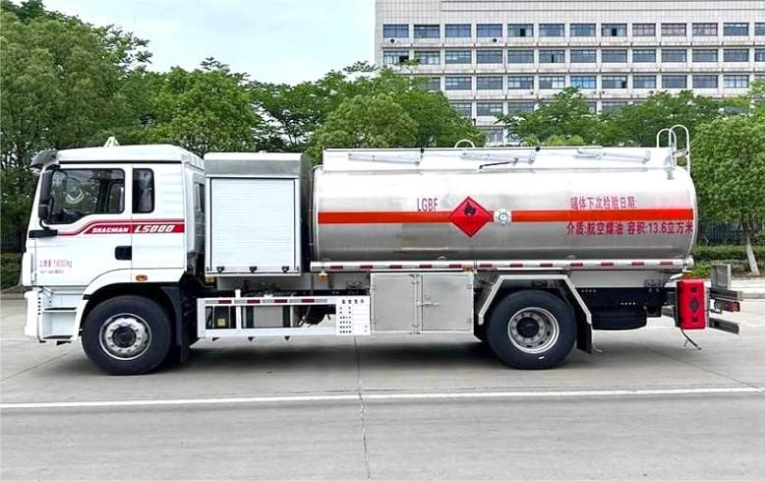

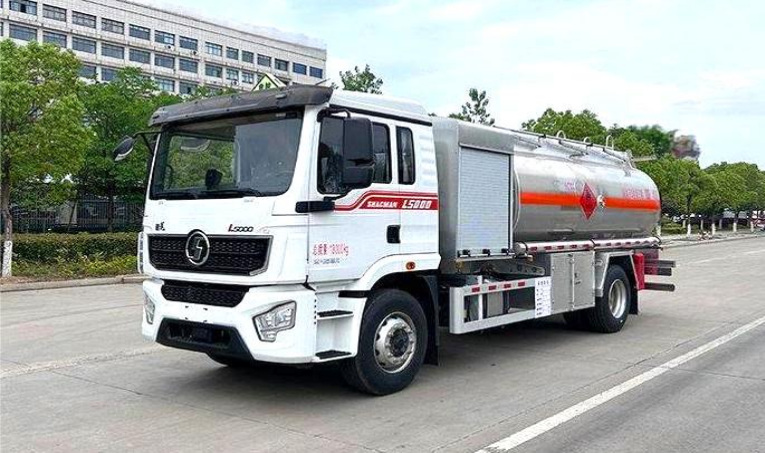

Shacman Delong 15m³ Aircraft Refueling Truck
Model 5185GJY6SZF
Shacman Delong 15m³ Aircraft Refueling Truck configured for airport aviation-fuel transfer.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 13.6m³ |
|---|---|
| Tank dimensions | 4750 × 2270 × 1590 mm |
| Rated payload | 10805 kg |
| Overall dimensions | 8600 × 2550 × 3330 mm |
| Gross vehicle mass | 18000 kg |
| Curb weight | 7000 kg |
| Chassis model | SX1189LA1WQ1 |
| Wheelbase | 4700 mm |
| Engine model | B6.2NS6B230 |
| Engine displacement | 6200 ml |
| Engine power | 170 kW |
| Horsepower | 230 hp |
| Tires | 295/80R22.5 18PR |
| Additional configuration | This is an FL-type dangerous goods transport vehicle, with tank external dimensions of 4750×2270×1590mm; The side and rear protections are bolt-connected with aluminum alloy material, the rear protection cross-section is 140×50mm with a ground clearance of 450mm; It is equipped with EBS/ABS system, a speed limiter (limited to 79km/h) and a satellite-positioning driving recorder, front-wheel disc brakes, front-mounted exhaust pipes, rear axle air suspension, and can be optionally equipped with ETC on-board devices and other configurations. |
