Aircraft Refuellers

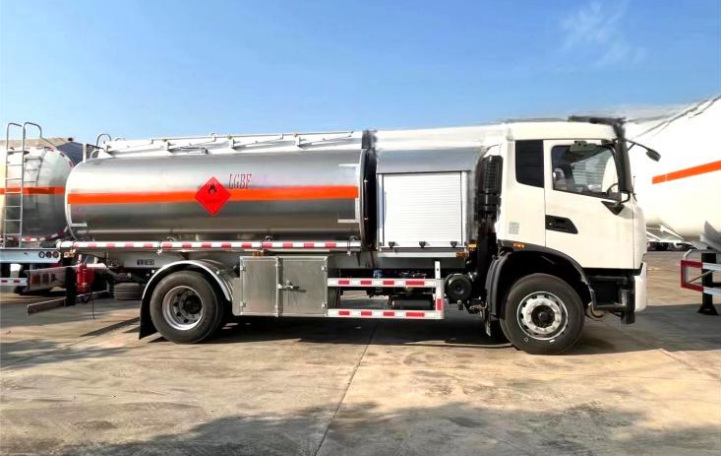

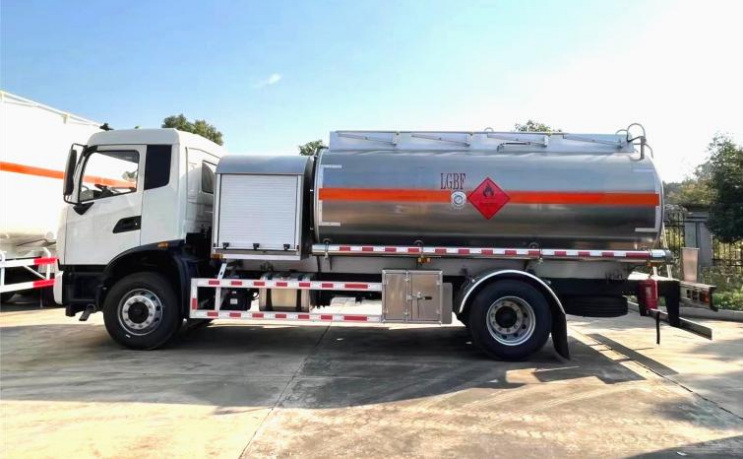

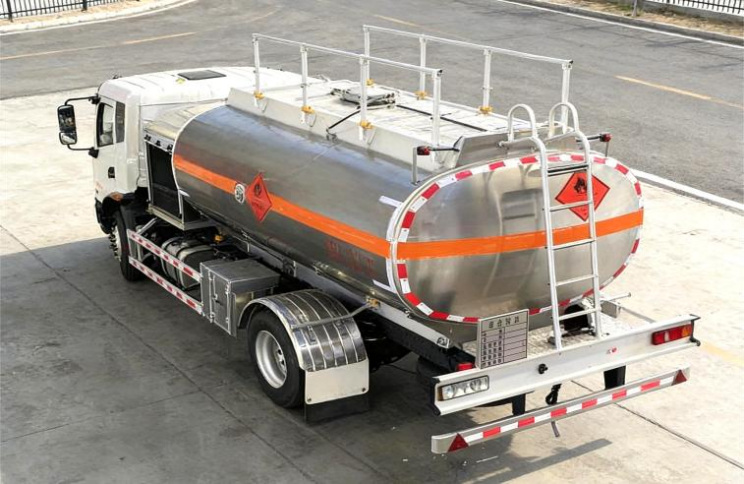

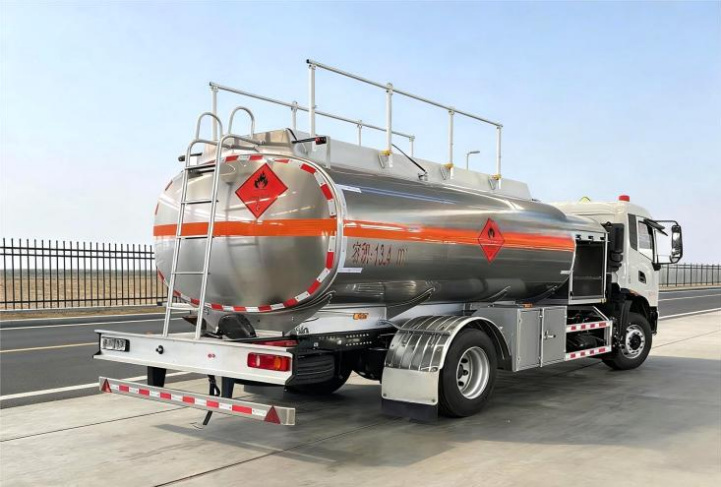

Dongfeng Tianjin 10m³ Aircraft Refueling Truck
Model 5160GJY4D
Dongfeng Tianjin 10m³ Aircraft Refueling Truck configured for airport aviation-fuel transfer.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 12.2m³ |
|---|---|
| Tank dimensions | 4520 × 2350 × 1350 mm |
| Rated payload | 9135 kg |
| Overall dimensions | 8400 × 2490 × 2920 mm |
| Gross vehicle mass | 16000 kg |
| Curb weight | 6670 kg |
| Chassis model | DFL1160BX5 |
| Wheelbase | 5000 mm |
| Engine model | ISDe210 40 |
| Engine displacement | 6700 ml |
| Engine power | 155 kW |
| Horsepower | 210 hp |
| Tires | 10.00R20 16PR |
| Additional configuration | This is an FL-type dangerous goods transport vehicle, with tank external dimensions of 4520×2350×1350mm; The rear protection is bolt-connected with 5083 material, the cross-section is 135×50mm with a ground clearance of 490mm; It is equipped with ABS system, a speed limiter (limited to 80km/h) and a satellite-positioning driving recorder, front-wheel disc brakes, and only uses radial tires. |
