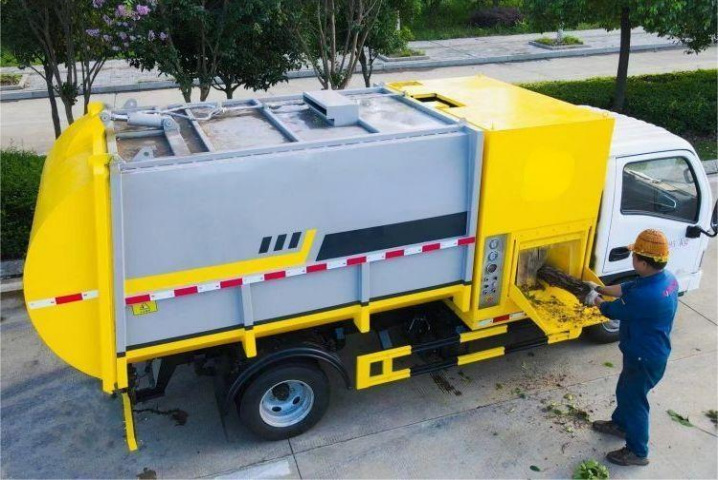

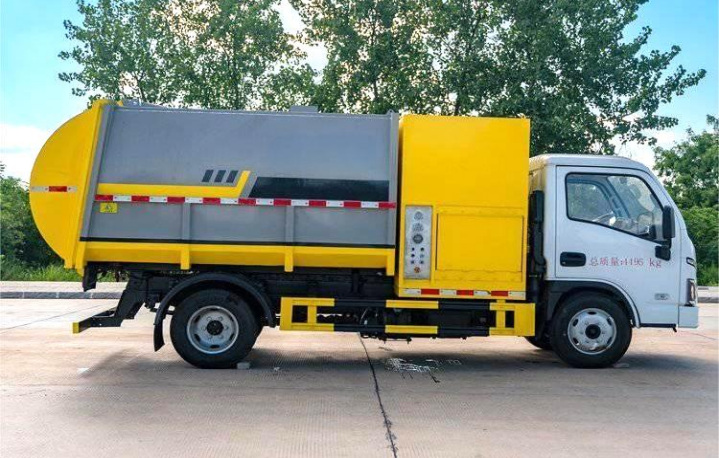

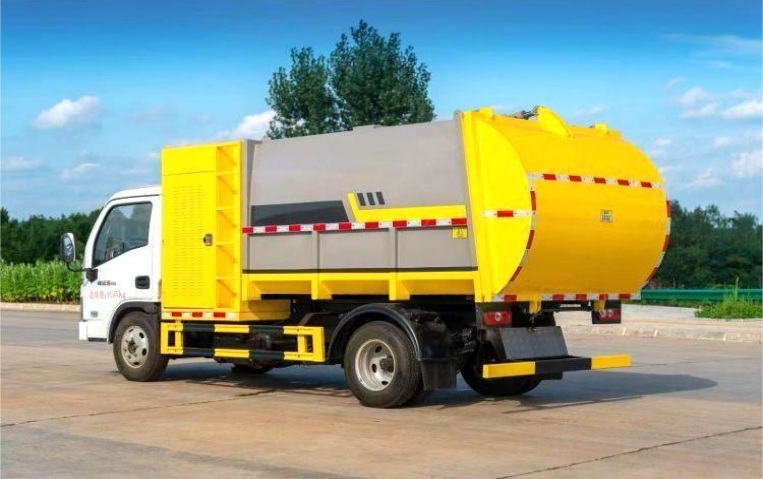

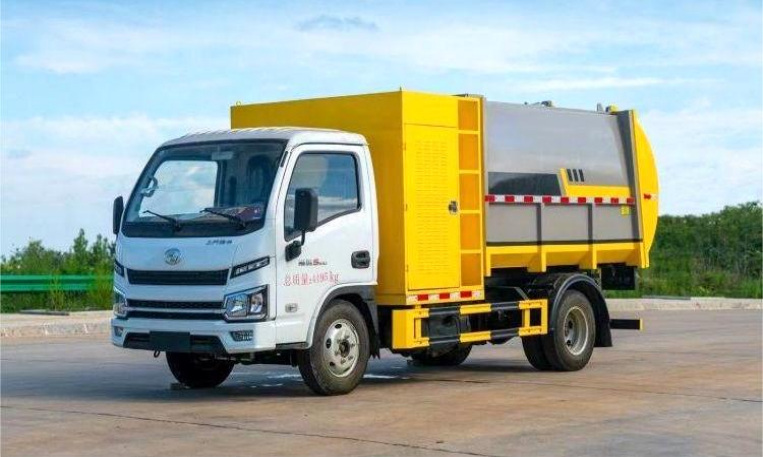

SAIC Yuejin Blue Label 6m³ Garden Tree Shredder Truck
Model 5040TWFS6
SAIC Yuejin Blue Label 6m³ Garden Tree Shredder Truck (5040TWFS6) is configured for specialized fleet operations, with feed speed of 32 m/min and loading height of 800 mm.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 5970 × 1950 × 2490 mm |
|---|---|
| Gross vehicle mass | 4495 kg |
| Curb weight | 3600 kg |
| Chassis model | SH1043PEDBNZ2 |
| Wheelbase | 3308 mm |
| Engine model | Q23-95E60 |
| Engine displacement | 2300 ml |
| Engine power | 70 kW |
| Horsepower | 95 hp |
| Tires | 185R15LT 8PR |
| Body volume | 6m³ |
| Feed speed | 32 m/min |
| Loading height | 800 mm |
| Special notes | This vehicle is used for material shredding, the working principle is to shred and compress materials through the shredder device. The main special devices include the compartment and shredding processing device; the side protection device material is Q235B, connected by bolts; the rear lower protection device material is Q235B, connected by bolts, with a section size (width×height) of 50× 100mm and a ground clearance of 350mm; only modified with chassis of 3308mm wheelbase.; cab can be selected with the chassis. |
