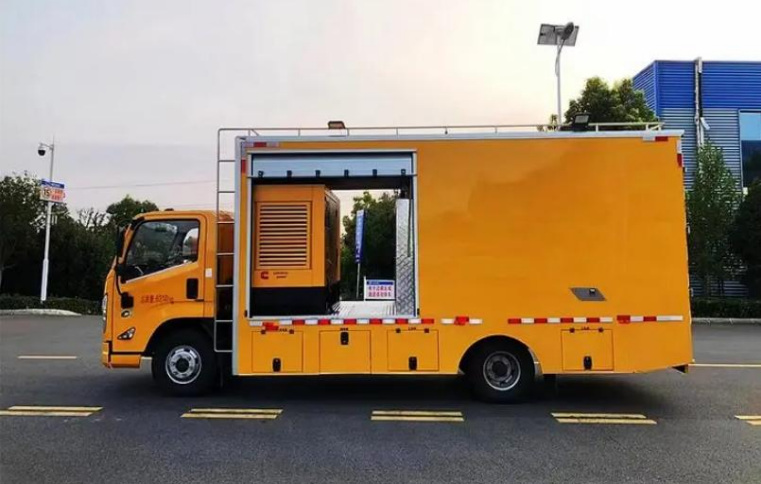

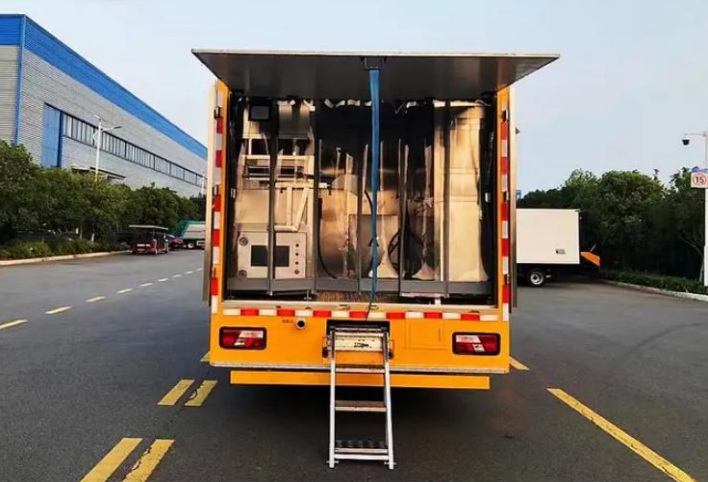

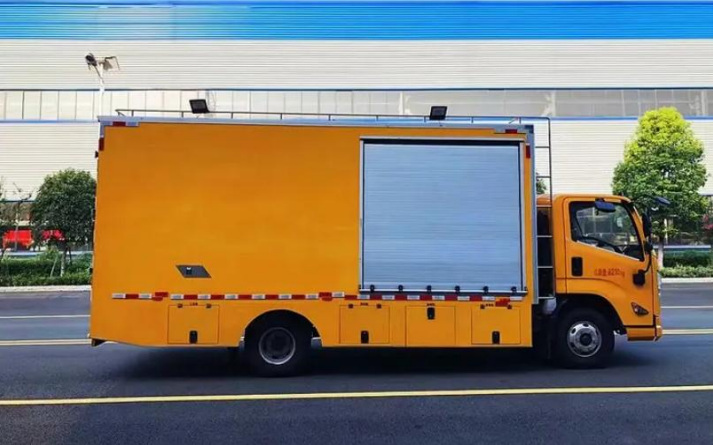

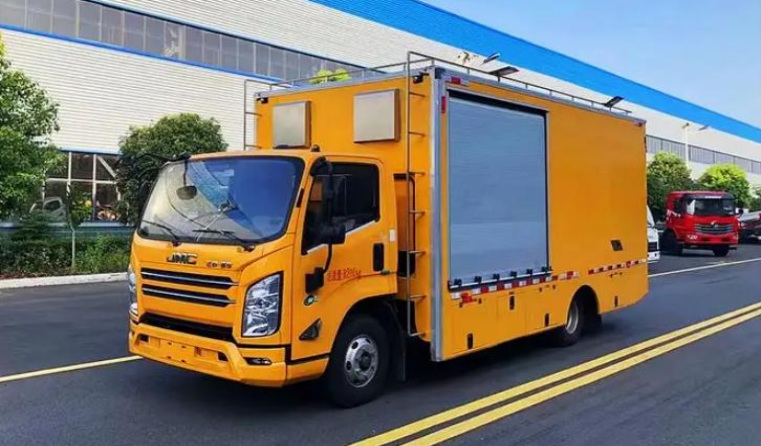

Jiangling Kairui UV Pipe Repair Truck
Model 5080XJX6AHQ
Jiangling Kairui UV Pipe Repair Truck configured for sewage suction and sanitation work.
Chassis modelJX1083TK26Engine power112 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 7210 × 2400 × 34250 mm |
|---|---|
| Gross vehicle mass | 8210 Kg |
| Curb weight | 8015 Kg |
| Chassis model | JX1083TK26 |
| Wheelbase | 3815 mm |
| Engine model | JX4D306H |
| Engine displacement | 2892 ml |
| Engine power | 112 kW |
| Horsepower | 152 hp |
| Tires | 7.50R16LT 14PR |
| Additional configuration | This vehicle is mainly used for pipeline repair mobile operations, with pipeline repair equipment, generator set, air blast boost system installed in the compartment; 2. The side and rear protection materials are Q235, the side protection device is an integral skirt structure, the rear protection is connected by welding, the section size (height×width) is 100×50mm, and the lower edge ground clearance is 420mm; 3. Cab can be selected with the chassis, and different layouts of equipment in the compartment are optional; 4. The top of the compartment is closed and cannot be opened; 5.The work light on the upper side of the vehicle is only used during operation. Optional compartment appearance |
