Patient Transport Vehicles

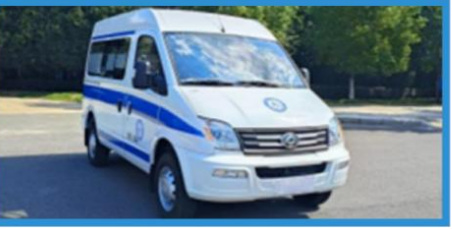

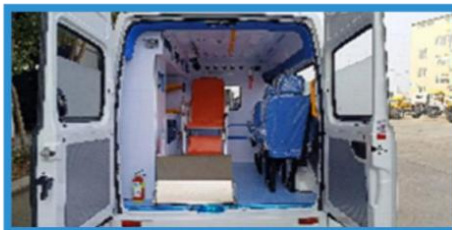

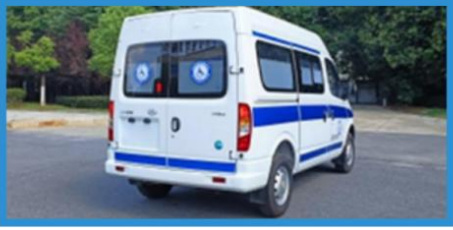

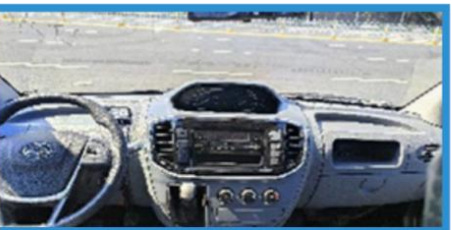

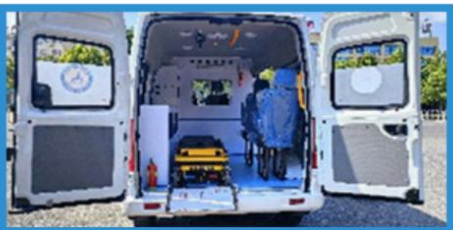

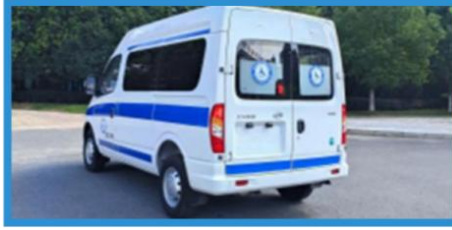

Maxus V80 Short-axis Disabled Transport Vehicle
Model EHY5040XSCS6QT
A short-axis disabled-transport vehicle based on the Maxus V80, configured for assisted passenger transfer.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Rated passengers | 5-7 |
|---|---|
| Overall dimensions | 5160,5035,4950 × 1998 × 2132,2345 mm |
| Gross vehicle mass | 3800 kg |
| Curb weight | 2350,2560 kg |
| Chassis model | SH6521A2DB |
| Wheelbase | 3100 mm |
| Engine model | SC20M139Q6;SC20M125.1Q6;SC20M147Q6 |
| Fuel type | Diesel |
| Emission standard | China VI (China VI (GB 17691-2018)) |
| Tires | 215/75R16LT |
| Axles | 2 |
| Maximum speed | 160,150,100 km/h |
