Patient Transport Vehicles

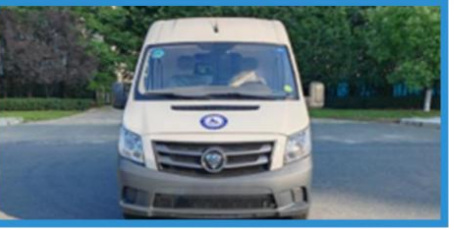

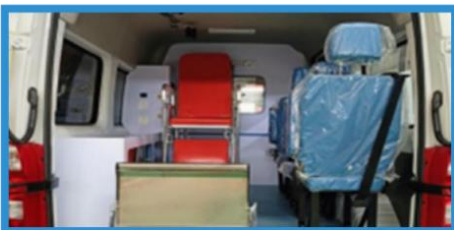

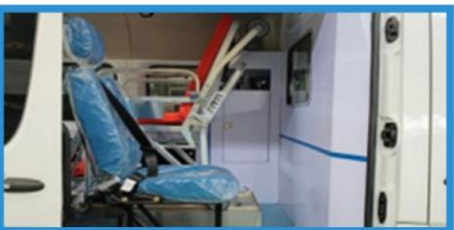

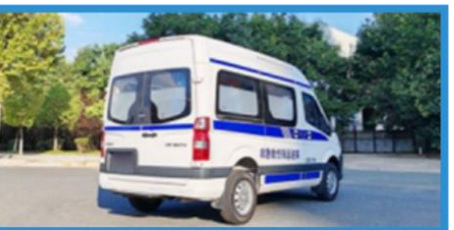

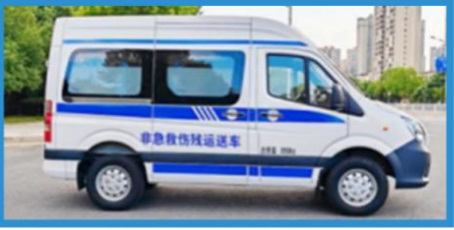

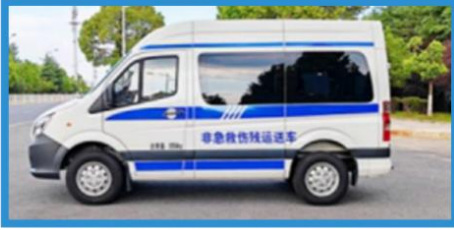

Foton Toano Short-axis Disabled Transport Vehicle
Model EHY5040XSCB6QT
A short-axis disabled-transport vehicle based on the Foton Toano, configured for assisted passenger transfer.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Rated passengers | 5-7 |
|---|---|
| Overall dimensions | 4923,5015,5065,5100 × 2000 × 2198,2218,2430,2520 mm |
| Gross vehicle mass | 3550 kg |
| Curb weight | 2480 kg |
| Chassis model | BJ6518MD5AA-L6 |
| Wheelbase | 2933 mm |
| Engine model | 4F20TC3 |
| Fuel type | Diesel |
| Emission standard | China VI (China VI (GB 17691-2018)) |
| Tires | 215/75R16C,215/75R16LT |
| Axles | 2 |
| Maximum speed | 130,100,150 km/h |
