Mobile Power Supply Trucks

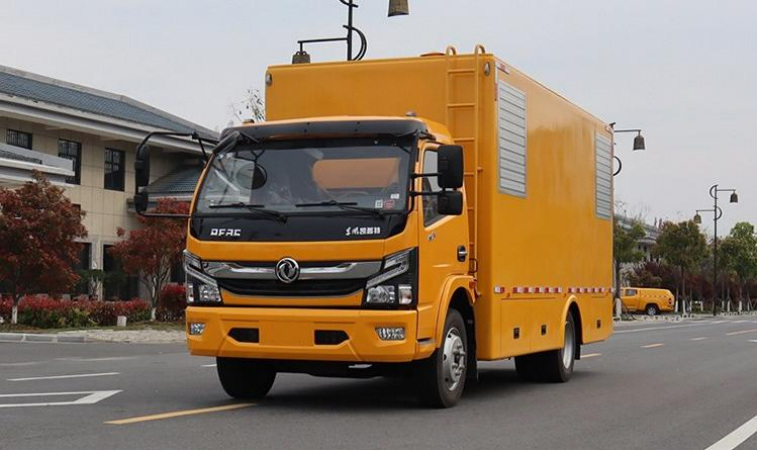

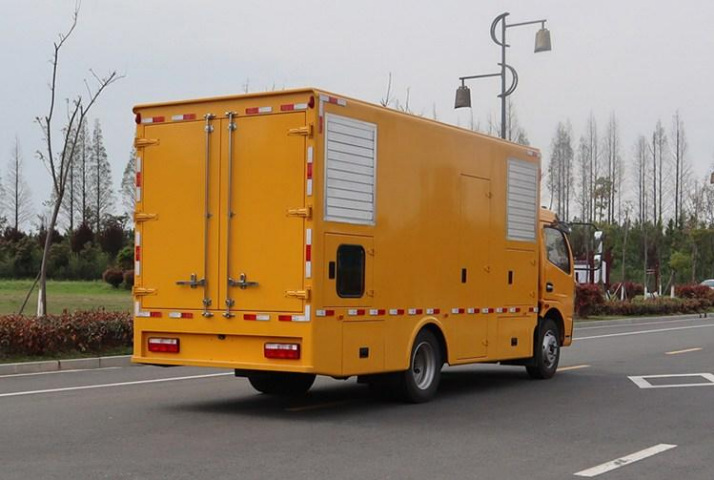

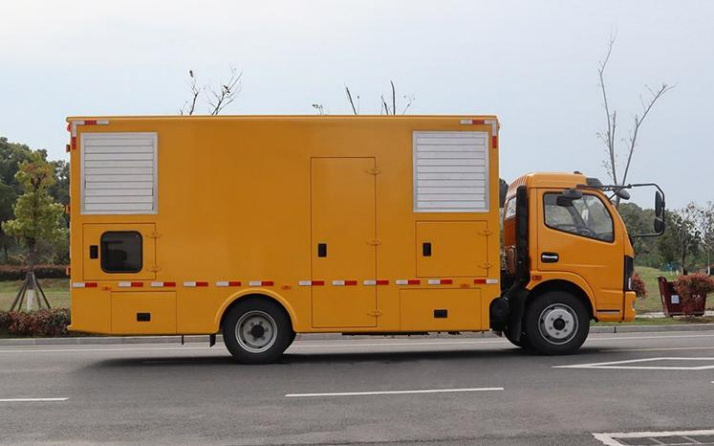

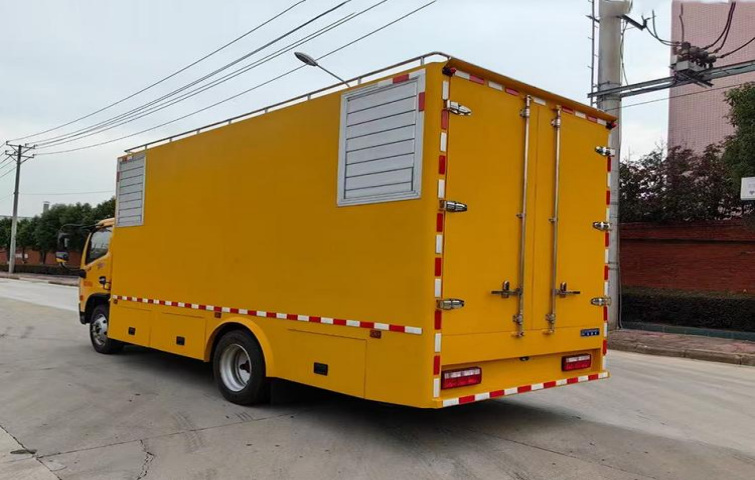

Dongfeng Kaipute Municipal Emergency Power Supply Truck
Model 5100XDY6ACC
Dongfeng Kaipute power-support truck with a generator set, cable winch, outriggers, power cables and lighting system.
Chassis modelEQ1125SJ8CDCEngine power121 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 7250 × 2350 × 3350 mm |
|---|---|
| Gross vehicle mass | 10450 Kg |
| Curb weight | 10255 Kg |
| Chassis model | EQ1125SJ8CDC |
| Wheelbase | 3800 mm |
| Engine model | YCY30165-60 |
| Engine displacement | 2970 ml |
| Engine power | 121 kW |
| Horsepower | 164 hp |
| Tires | 8.25R20 |
| Maximum speed | 89 km/h |
| Additional configuration | The compartment of the vehicle is equipped with generator set, cable winch, hydraulic (mechanical) outriggers, power cables, lighting system and other facilities, mainly used for emergency power supply for emergency incidents; the top of the compartment is closed and cannot be opened; modified with chassis of 3800mm wheelbase; the side and rear protection are replaced by the vehicle body structure, and the lower edge of the rear protection is 450mm above the ground; ABS corresponds to relevant models; the maximum speed is 89km/h when the speed limiting device is selected; tire models are optional; cab can be selected with the chassis |
| Output voltage | 380V |
| Working Time | 8 hours |
