Mobile Power Supply Trucks

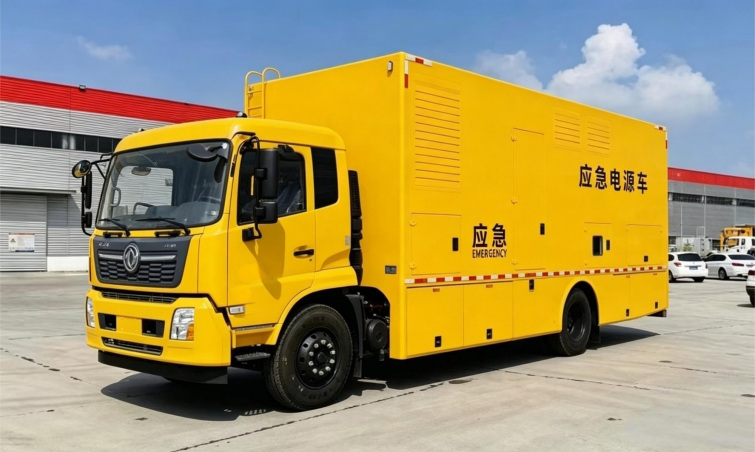

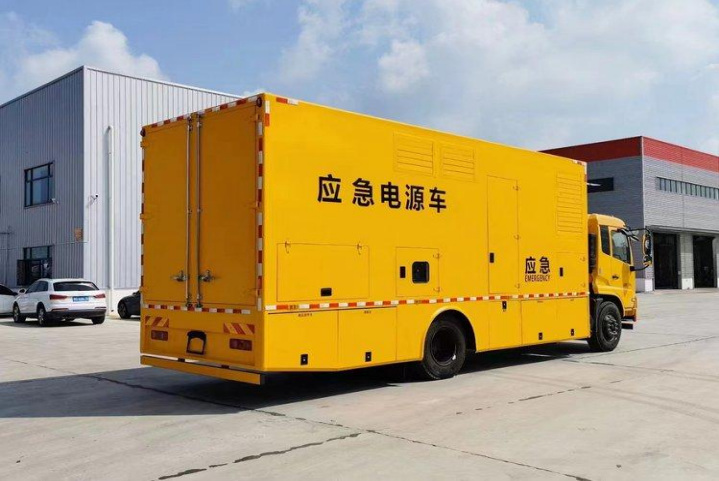

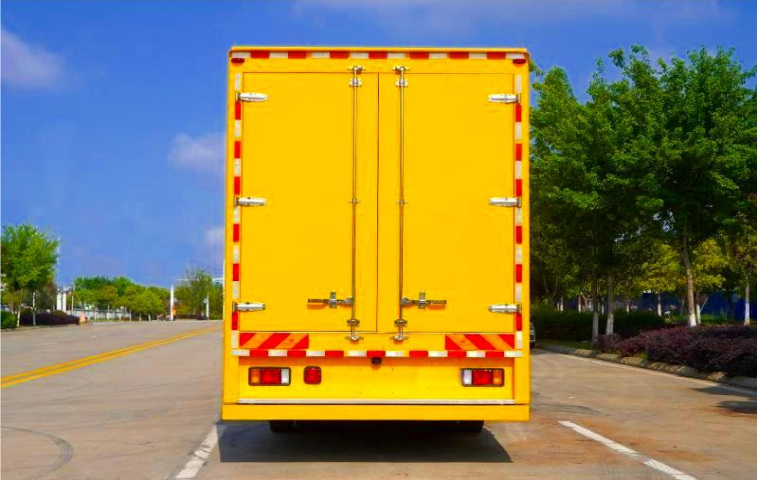

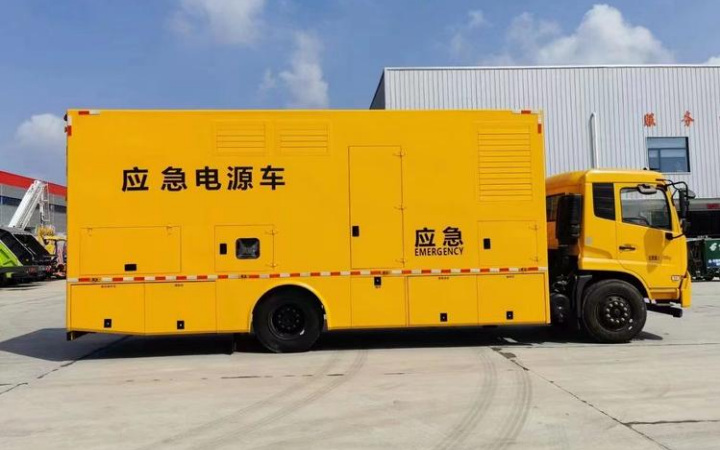

Dongfeng Tianjin Municipal Emergency Power Supply Truck
Model 5180XDYADY
Dongfeng Tianjin power-support truck with a generator set and cable winch for emergency power support.
Chassis modelDFH1180EX8Engine power140 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 9850 × 2500 × 3960 mm |
|---|---|
| Gross vehicle mass | 18000 Kg |
| Curb weight | 17870 Kg |
| Chassis model | DFH1180EX8 |
| Wheelbase | 5300 mm |
| Engine model | D4.5NS6B190 |
| Engine displacement | 4500 ml |
| Engine power | 140 kW |
| Horsepower | 190 hp |
| Tires | 10.00R20 18PR |
| Output voltage | 380V |
| Working Time | 8 hours |
| Special notes | Equipped with generator set and cable winch for emergency power supply; side/rear protection is Q235A carbon steel skirt/welded structure, rear protection size 120×60mm, ground clearance 410mm; optional 89km/h speed limit, lifting lights (only for parking use), cab, appearance, deflector, guardrail, etc;mainly used for emergency power supply guarantee for emergency rescue |
