Mobile Power Supply Trucks

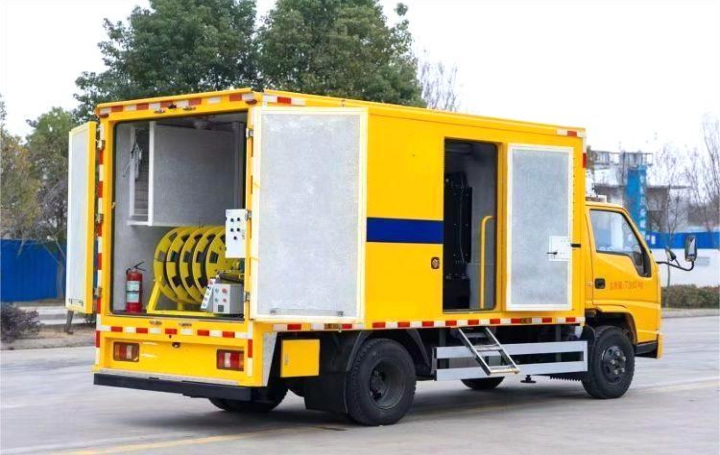

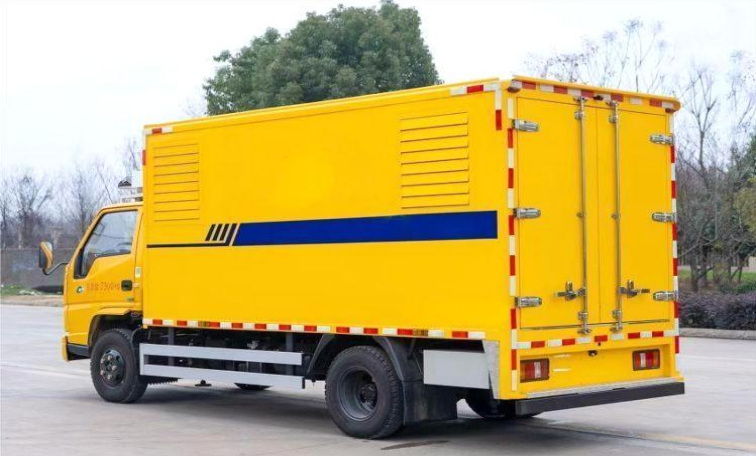

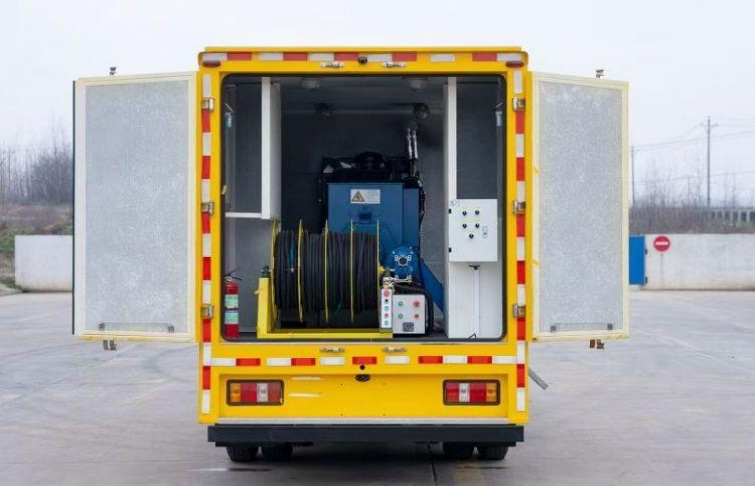

Jiangling Shunda Municipal Emergency Power Supply Truck
Model 5070XDYJ6
Jiangling Shunda Municipal Emergency Power Supply Truck (5070XDYJ6) is configured for specialized fleet operations, with output voltage of 380 V.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 6320 × 2100 × 2500 mm |
|---|---|
| Gross vehicle mass | 7300 Kg |
| Curb weight | 7170 Kg |
| Chassis model | JX1071TG26 |
| Wheelbase | 3360 mm |
| Engine model | JX4D306H |
| Engine displacement | 2892 ml |
| Engine power | 85 kW |
| Horsepower | 115 hp |
| Tires | 7.00R16LT 14PR |
| Output voltage | 380 V |
| Working time | 8 hours |

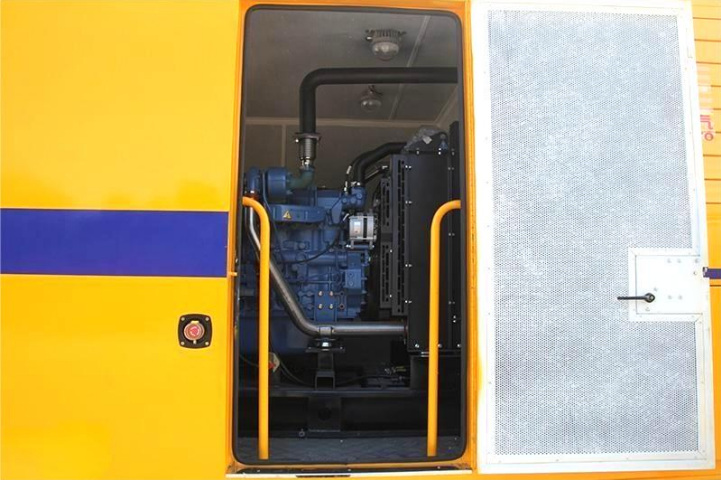

| Additional configuration | Special device: generator set, mainly used for emergency power supply guarantee for emergency rescue, large-scale activities and meetings, etc.; the top of the compartment is closed and cannot be opened; the side protection is made of aluminum alloy, connected by bolts and welding; the rear protection is made of Q235B, connected by welding, with a section size of 100×50mm and a ground clearance of 340mm; ABS corresponds to relevant models; the maximum speed is 90km/h when using the corresponding engine; the corresponding relationship of vehicle length/front overhang/wheelbase/rear overhang is (mm): 6320/1095/3360/1865, 6300/1075/3360/1865, 6020/1095/3360/1565, 6000/1075/3360/1565; generator sets with different powers are optional |
