Mobile Lighting Trucks
Jiangling Emergency Lighting Truck
Model 5060XZMJX6
Jiangling Emergency Lighting Truck provides generator-powered lifting lights for emergency and temporary-area illumination.
Chassis modelJX1063TSG26Engine power95 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 5995 × 1985 × 2750 mm |
|---|---|
| Gross vehicle mass | 6495 Kg |
| Curb weight | 6105 Kg |
| Chassis model | JX1063TSG26 |
| Wheelbase | 3360 mm |
| Engine model | JX4D30A6H |
| Engine displacement | 2892 ml |
| Engine power | 95 kW |
| Horsepower | 129 hp |
| Tires | 7.00R16LT 14PR |

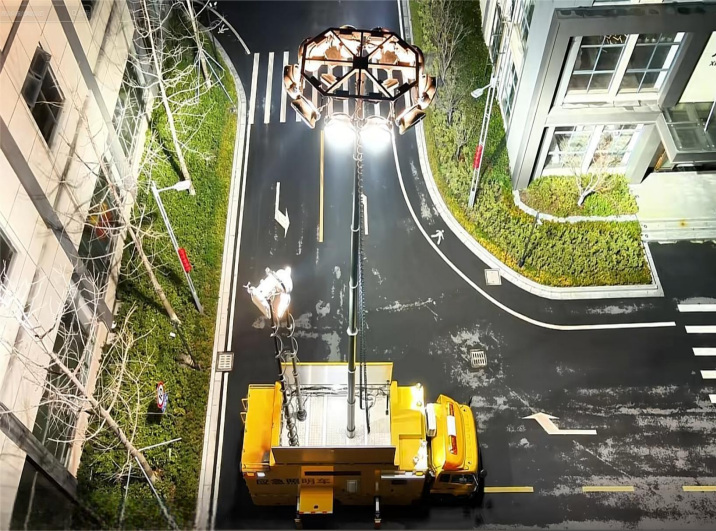

| Special notes | The vehicle is used for emergency lighting with a generator set and lifting lighting lamp. The top of the compartment is closed and cannot be opened. Side and rear protection use Q235B skirt-board structures, with 415 mm rear ground clearance. ABS corresponds to relevant models. The compartment layout is optional; top lighting is for parking operation only and provides 360° illumination through an integrated control system. |
Need a different payload or chassis?
