Lubricant Tanker Semi-Trailers

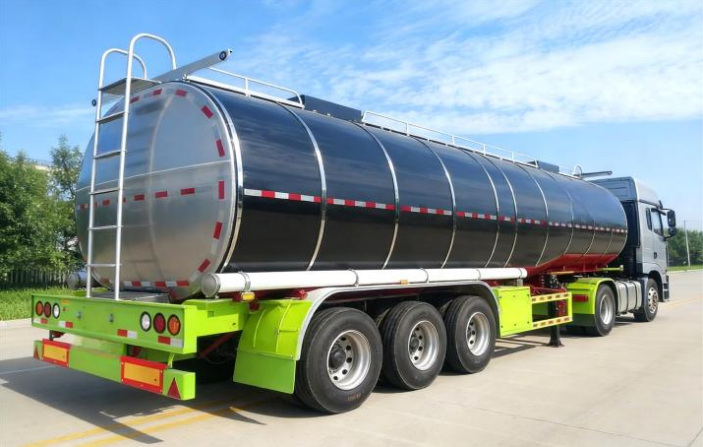

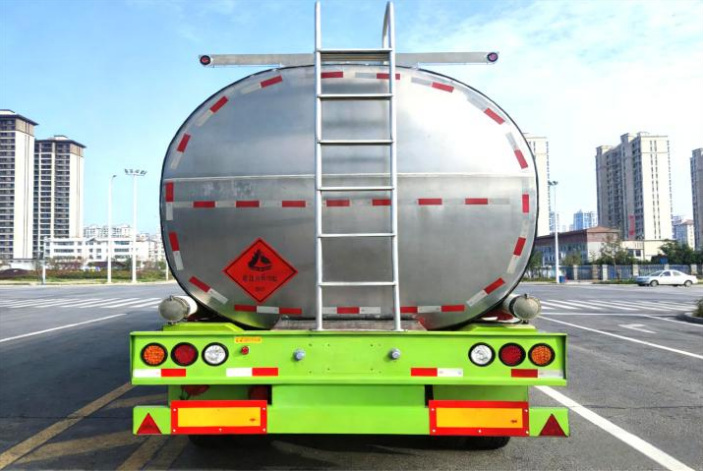

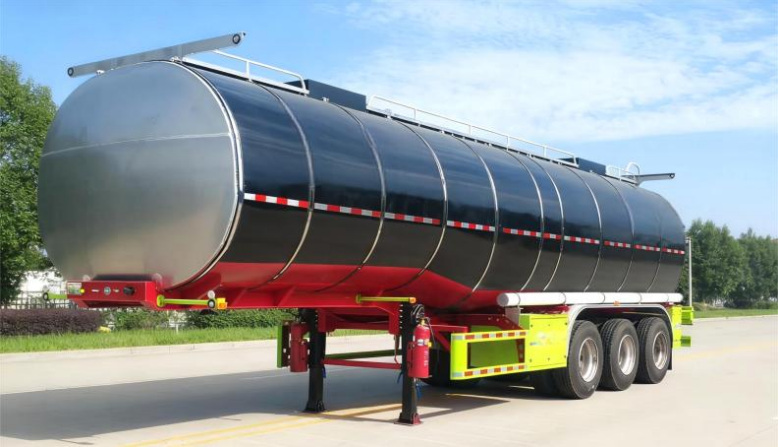

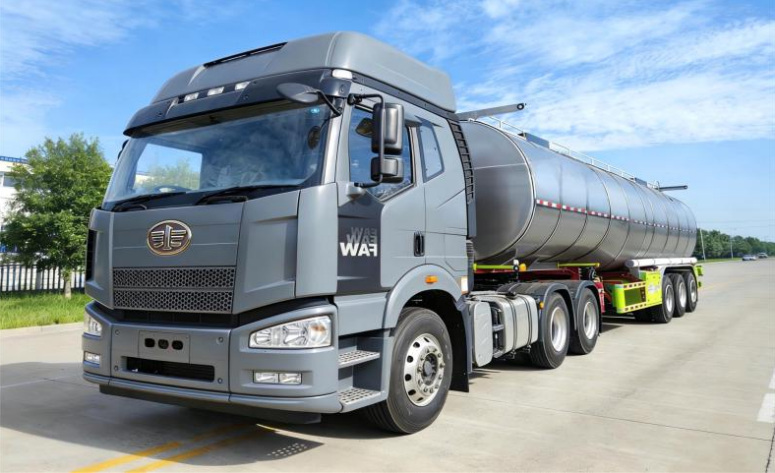

34m³ Lubricating Oil Tank Transport Semi-trailer
Model HBS9400GRH
34m³ Lubricating Oil Tank Transport Semi-trailer configured for lubricant and oil-product transport.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 34.2m³ |
|---|---|
| Tank dimensions | 10400 × 2450 × 2130 mm |
| Rated payload | 32400Kg |
| Overall dimensions | 11200 × 2500 × 3980 mm |
| Gross vehicle mass | 40000Kg |
| Curb weight | 7600Kg |
| Wheelbase | 5800+1310+1310 mm |
| Tires | 12R22.512PR |
| Additional configuration | It is a non-dangerous goods transport vehicle with an insulation layer, using insulation binding. Equipped with ABS, side protection material is aluminum alloy (bolted connection), rear protection material is Q235 (welded connection), rear protection section 150×60mm, ground clearance 460mm; optional light-duty walking mechanism, ladder, toolbox, heating device and other accessories; must be matched with a semi-trailer tractor. |
| Transport Medium | Lubricating oil |
