Inspection Vehicles
Isuzu Giga Highway Inspection Truck
Model 5180TLJQ6
Isuzu Giga Highway Inspection Truck is configured for highway inspection and road-surface testing work.
Chassis modelQL1180EQFRYEngine power177 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 8560 × 2550 × 3280 mm |
|---|---|
| Gross vehicle mass | 18000 Kg |
| Curb weight | 10300 Kg |
| Chassis model | QL1180EQFRY |
| Wheelbase | 4500 mm |
| Engine model | 6HK1-TCG61 |
| Engine displacement | 7790 ml |
| Engine power | 177 kW |
| Horsepower | 240 hp |
| Tires | 295/80R22.5 16PR |

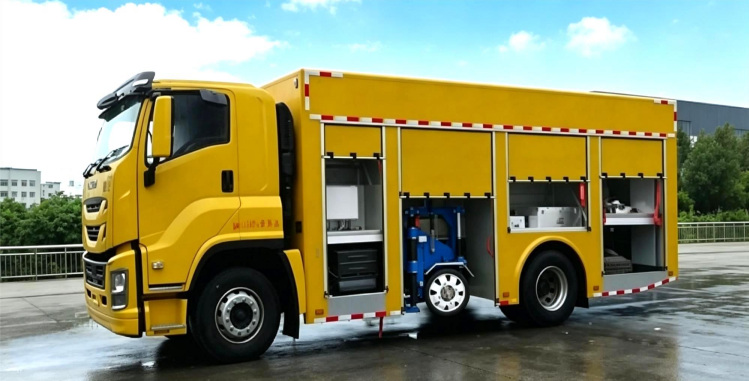

| Special notes | This vehicle is equipped with water tank, single-wheel fully automatic lateral friction coefficient tester and double-wheel fully automatic lateral friction coefficient tester, which is used for the detection of road surface friction coefficient; Adopt 4500 mm wheelbase; The corresponding relationship of vehicle length/rear overhang is (mm): 8560/2690, 8260/2390; The side protection device of the vehicle is an integral structure, the height of the lower side from the ground is 350 mm, the rear protection device is an integral structure, and the height from the ground is 480 mm; ABS corresponds to relevant models |
