Funeral Vehicles

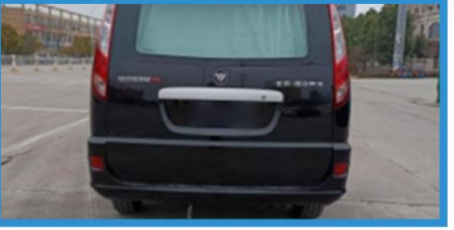

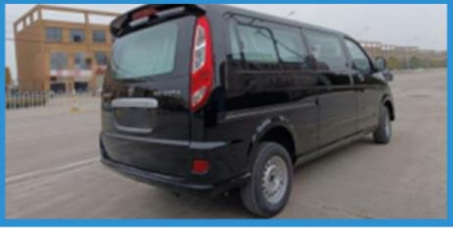

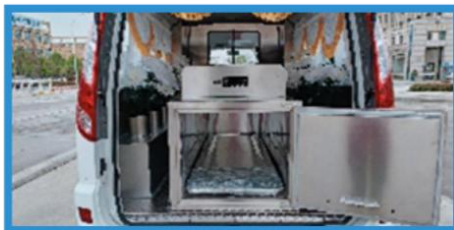

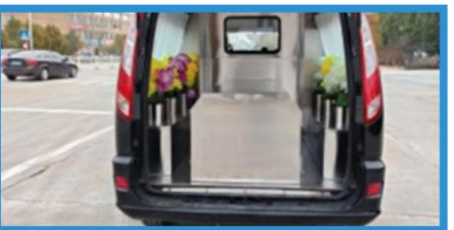

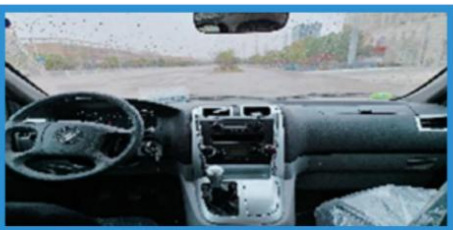

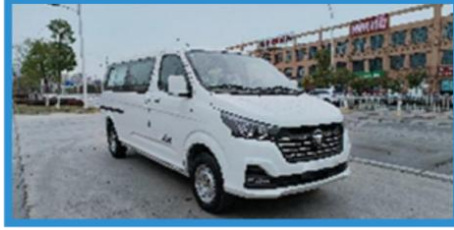

Foton G5 Funeral Vehicle
Model HNV5030XBYQT6
Foton G5 Funeral Vehicle is configured for dignified mortuary transport and funeral service operations.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Overall dimensions | 5245 × 1825 × 2030 mm |
|---|---|
| Gross vehicle mass | 2755 kg |
| Curb weight | 1820 kg |
| Chassis model | BJ6526MD5VA-N1 |
| Wheelbase | 3430 mm |
| Engine model | DAN20L |
| Engine displacement | 1998 ml |
| Engine power | 110 kW |
| Fuel type | Gasoline |
| Emission standard | China 6 (China 6 (GB 18352.6-2016)) |
| Tires | 195/70R15C, 205/70R15, 195/75R16LT |
| Axles | 2 |
| Maximum speed | 150, 100 km/h |
| Rated passengers | 5 |
