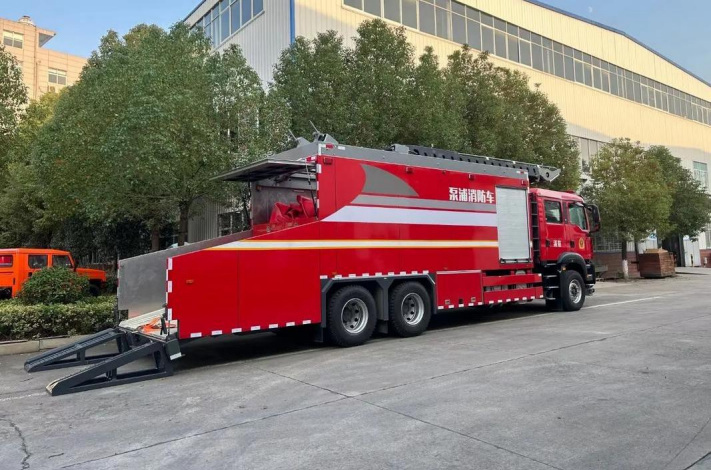

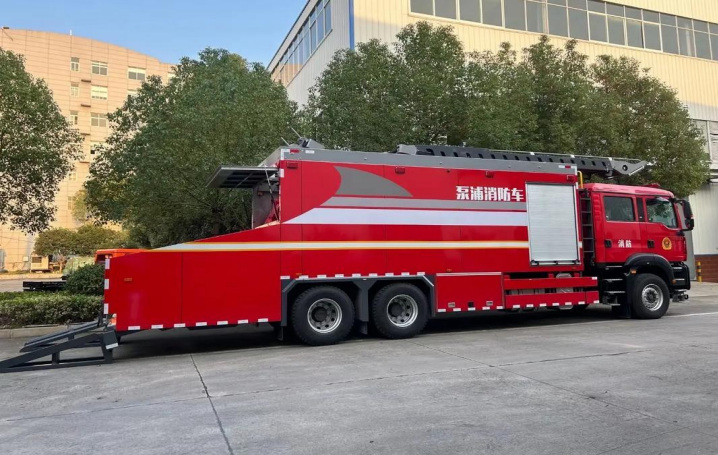

Sinotruk SITRAK 6×4 Fire Pump Truck
A pump fire truck with supplied remote water-supply and emergency-drainage equipment.
Rated payload10000 kgChassis modelZZ5326V464HE1Engine power294 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Rated payload | 10000 kg |
|---|---|
| Overall dimensions | 10500 × 2550 × 3800 mm |
| Gross vehicle mass | 29000 kg |
| Curb weight | 19000 kg |
| Chassis model | ZZ5326V464HE1 |
| Wheelbase | 4600+1350 mm |
| Engine model | MC11.40-60 |
| Engine displacement | 10500 ml |
| Engine power | 294 kW |
| Horsepower | 400 hp |
| Tires | 315/80R22.5 |

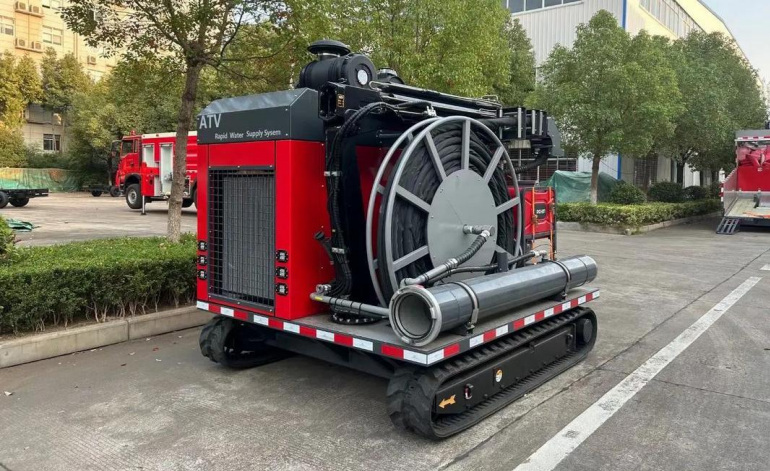

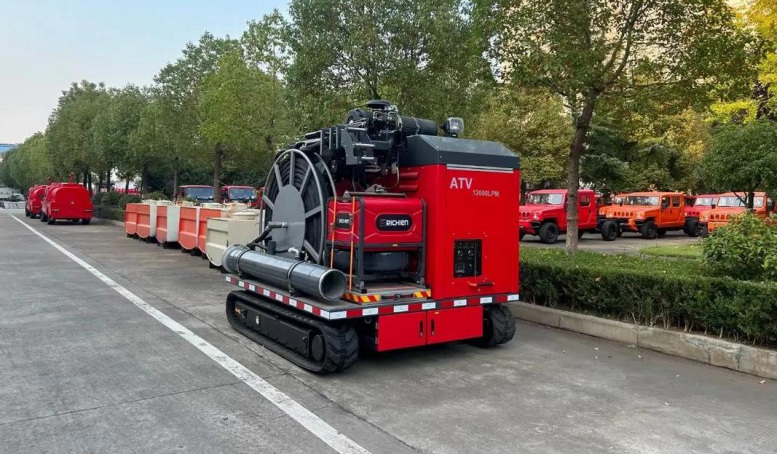

| Special notes | This vehicle is pump fire truck, equipped with an ATV crawler-type self-propelled water supply and drainage robot at the rear. The vehicle-mounted floating pump has a flow rate of 250L/S@0.2MPa and 200L/S@0.4MPa. It is equipped with a large-flow hose delivery system to realize remote water supply operations. It is suitable for remote water supply for fire fighting and rescue, municipal/highway emergency drainage, flood control and drainage, cofferdam pumping, drought relief, agricultural irrigation, and pumping and drainage operations without fixed pump stations. |
