Asphalt Distributor Trucks

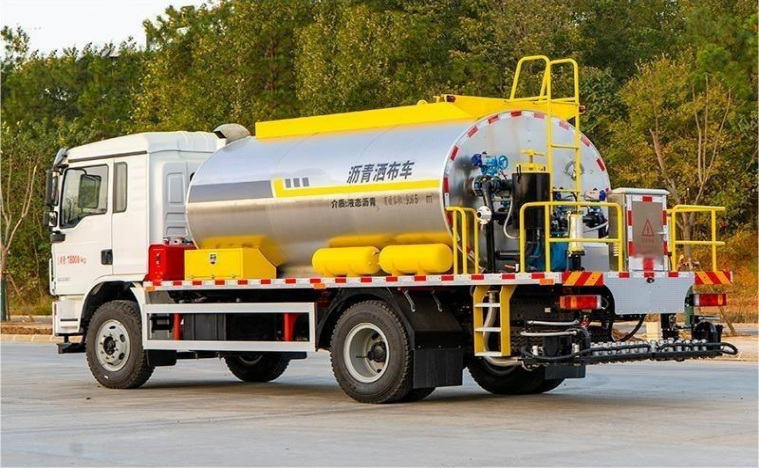

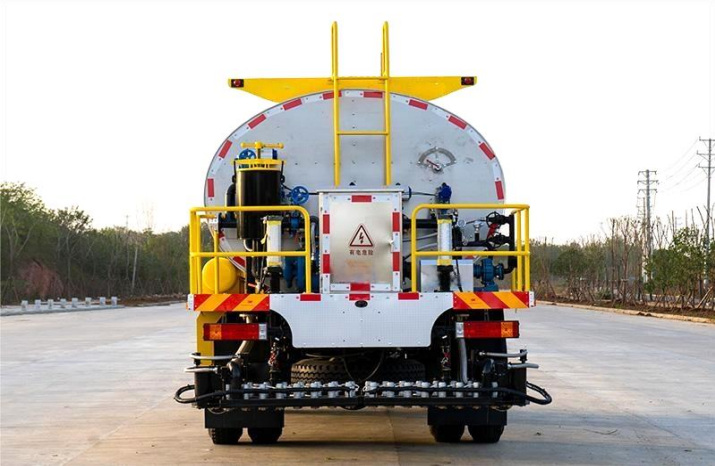

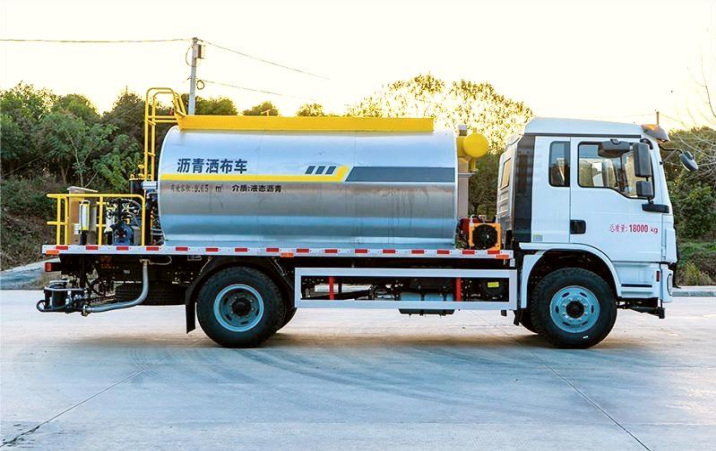

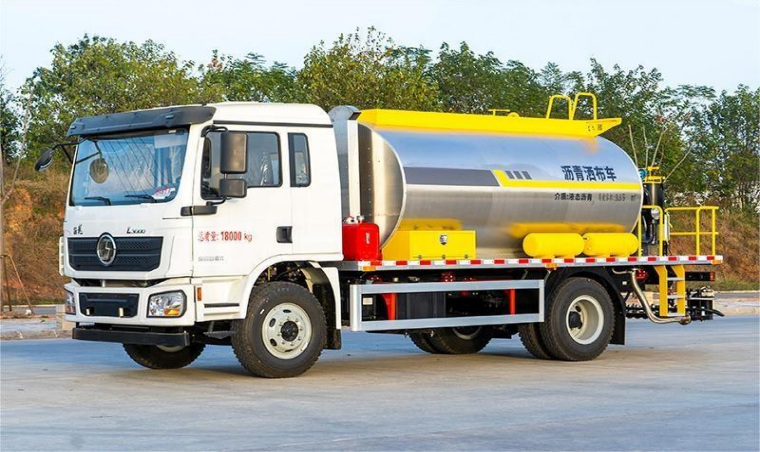

Shacman L3000 9m³ Asphalt Distributor Truck
Model 5180GLQS6
A 9m³ asphalt distributor truck for controlled liquid-asphalt spraying in road construction and maintenance.
Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Rated payload | 8685 kg |
|---|---|
| Overall dimensions | 7930 × 2550 × 3460 mm |
| Gross vehicle mass | 18000 kg |
| Curb weight | 9120 kg |
| Chassis model | SX1189LA1F1C |
| Wheelbase | 4000 mm |
| Engine model | B6.2NS6B230 |
| Engine displacement | 6200 ml |
| Engine power | 169 kW |
| Horsepower | 229 hp |
| Tires | 295/80R22.5 18PR |
| Special notes | This vehicle is mainly used for road asphalt spreading. The upfit includes a tank and asphalt spraying device for liquid asphalt with a density of 900 kg/m³. The side protection is bolted Q235B; the rear protection is replaced by the working device, with its lower edge 280 mm above the ground. The vehicle is equipped with ABS and an 80 km/h speed limiter. The cab is selected with the chassis. Rear work lights are for stationary operation only. The tank insulation layer is 270 mm thick. |
| Upper Body | Asphalt tank capacity 9.7m³, insulation layer is 50mm rock wool covered with stainless steel; Equipped with Zhejiang Shanggui QGB950 asphalt pump (950L/min), RY40-25-160 heat conduction oil pump, HM05-90-BD40 asphalt pump motor, EFRD-G03-160-3-6-31 proportional valve; Adopt Riello burner G20 + full heating of heat conduction oil, 36 one-control-one intelligent nozzles at the rear, touch screen computer control in the cab; Asphalt spraying amount 0.25-3L/㎡, spraying width ≤4.5m, supports pneumatic/diesel cleaning, can spray emulsified asphalt, hot asphalt, modified asphalt. |
