Ambulances

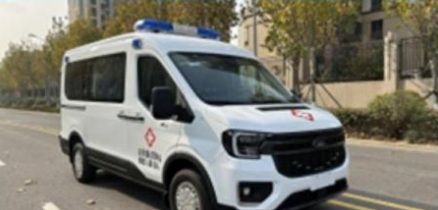

Ford Transit T8 Mid-axis Ambulance
Model EHY5042XJHJ6QT
A 5-9 occupant mid-axis ambulance configuration based on the Ford Transit T8.
Chassis modelJX6556T-M6
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Rated passengers | 5-9 |
|---|---|
| Overall dimensions | 5675,5498 × 2068 × 2780,2685,2620,2565 mm |
| Gross vehicle mass | 3550 kg |
| Curb weight | 2780,2680,2560 kg |
| Chassis model | JX6556T-M6 |
| Wheelbase | 3300 mm |
| Engine model | DURATORQ4D236H;DURATORQ4D20D6H |
| Fuel type | Diesel Diesel |
| Emission standard | China VI (China VI (GB 17691-2018)) |
| Tires | 235/65R16C |
| Axles | 2 |
| Maximum speed | 160,100 km/h |
