Sinotruk Howo 21m Elevating Platform Fire Truck
Model 5432JXFJP21

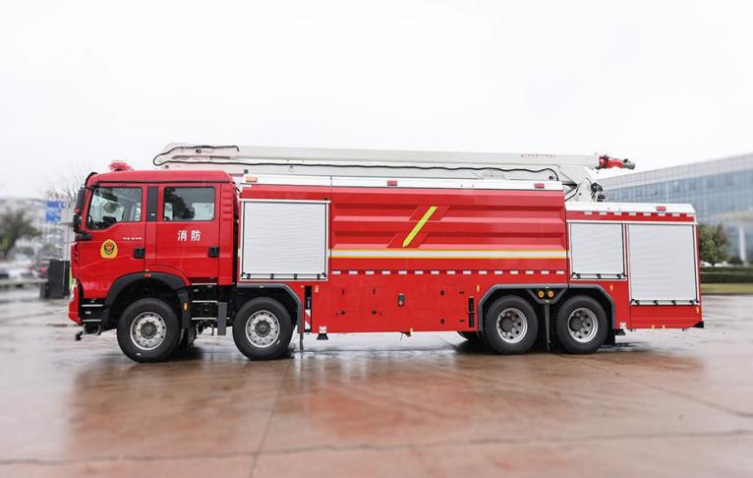

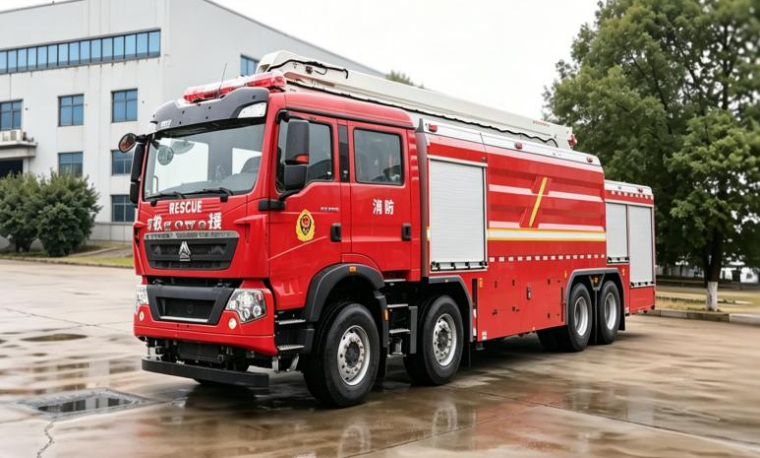

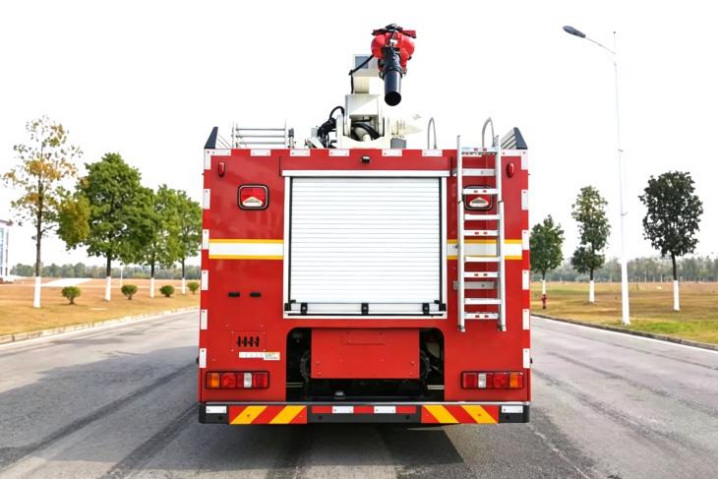

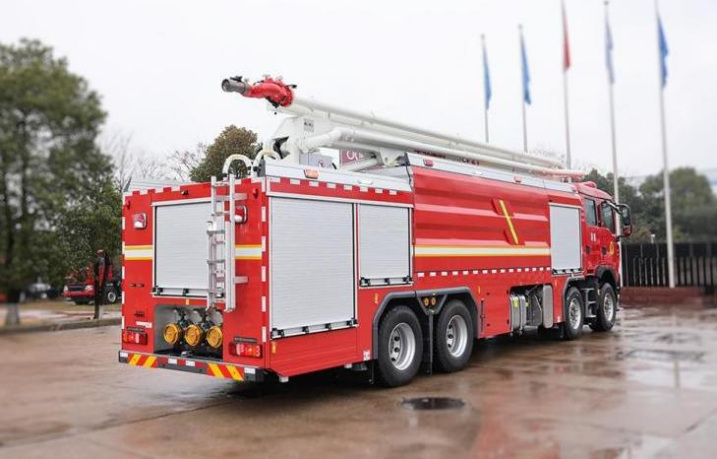

This vehicle is an elevating platform fire truck, with special devices including an arm frame, fire pump, and fire monitor.
Tank / body volume20.0m³Rated payload20000 kgChassis modelZZ5447TXFV466MF5Engine power319 kW
Discuss this configuration →Final equipment, certification and delivery terms are confirmed for each order.
Technical specifications
Technical specifications
Compare working capacity, dimensions, chassis, powertrain and running gear in one view. Emission labels follow the supplied Chinese standard; destination-market approval and any Euro classification must be confirmed separately.
| Tank / body volume | 20.0m³ |
|---|---|
| Tank dimensions | 4300 × 2330 × 1450 mm |
| Rated payload | 20000 kg |
| Overall dimensions | 11990 × 2550 × 3910 mm |
| Gross vehicle mass | 42650 kg |
| Curb weight | 22200 kg |
| Chassis model | ZZ5447TXFV466MF5 |
| Wheelbase | 1950+4600+1400 mm |
| Engine model | MC11.43-61 |
| Engine displacement | 10518 ml |
| Engine power | 319 kW |
| Horsepower | 433 hp |
| Tires | 385/65R22.5 18PR |
| Superstructure | Working reach: 21m, compact main-boom + knuckle-boom design with fast deployment & auto-leveling outriggers, equipped with high-flow fire monitor, large-capacity water tank & high-flow water pump. |
| Additional configuration | This vehicle is an elevating platform fire truck, with special devices including an arm frame, fire pump, and fire monitor. The water tank volume is 14.0 cubic meters, and the foam liquid tank is a "convex" shaped tank with a volume of 6.0 cubic meters. It adopts an integrated side protection structure. The rear protection device is made of Q345B material, with a cross-section of 58×140mm, bolt-connected, and 410mm above the ground. Only chassis with leaf spring suspension are selected. |
